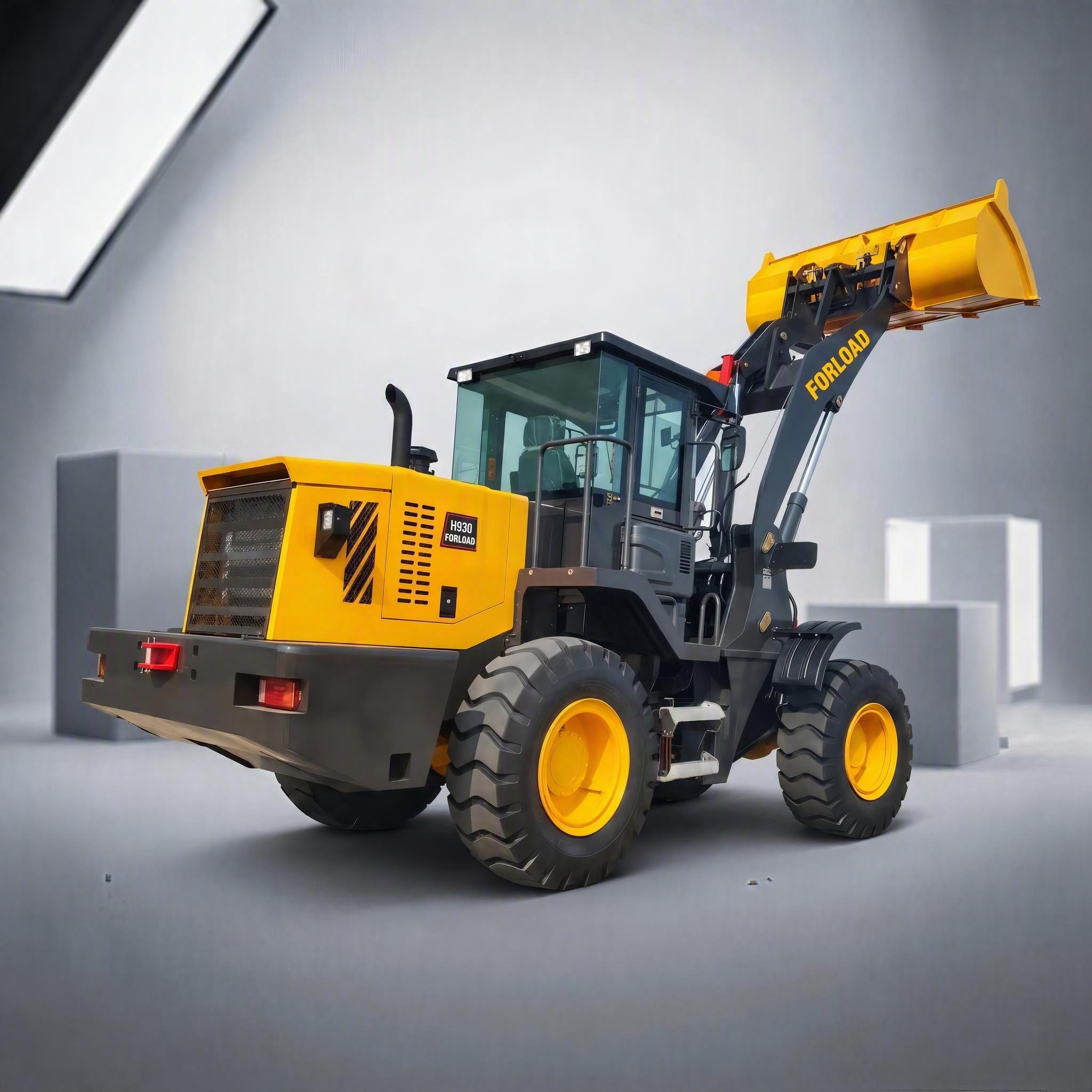

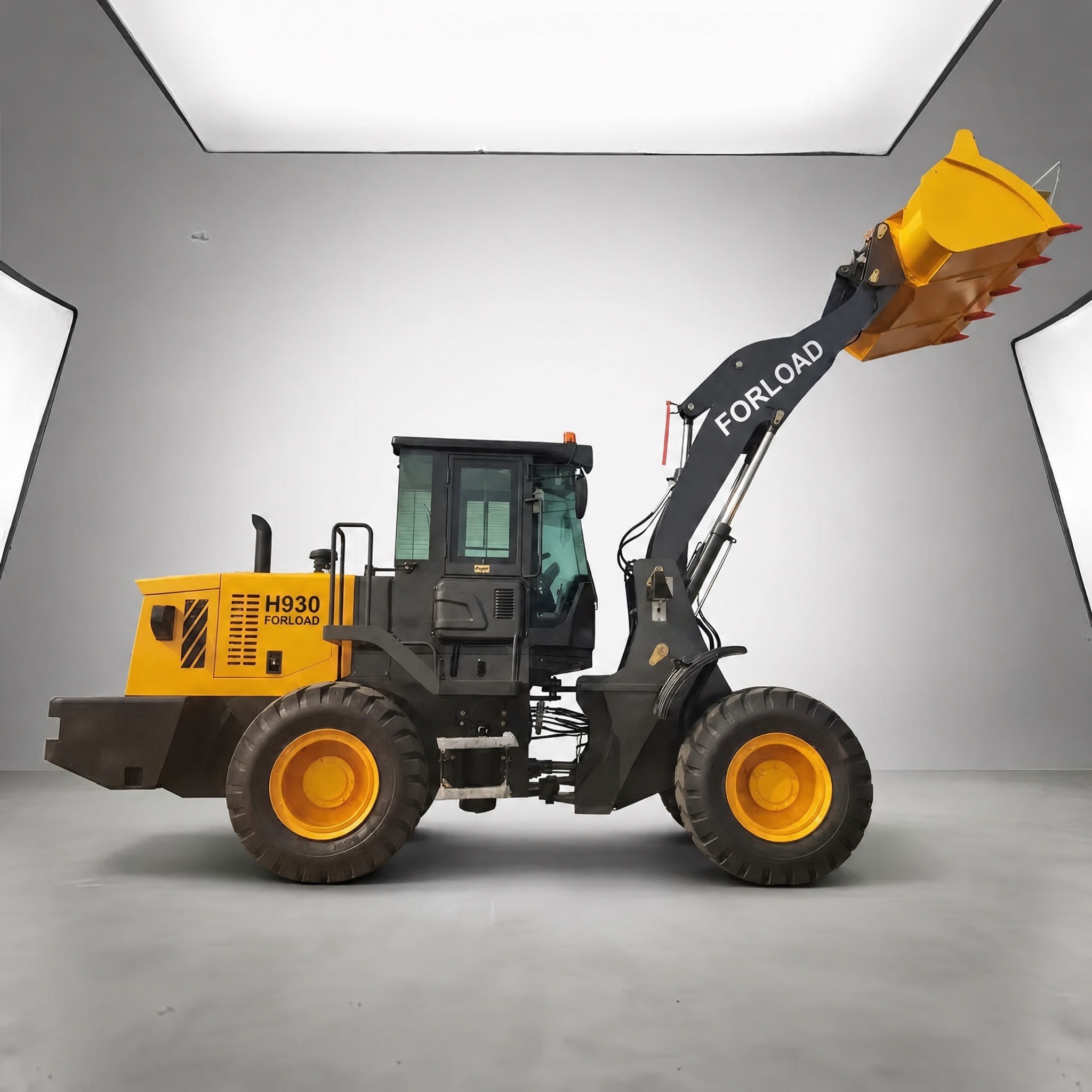

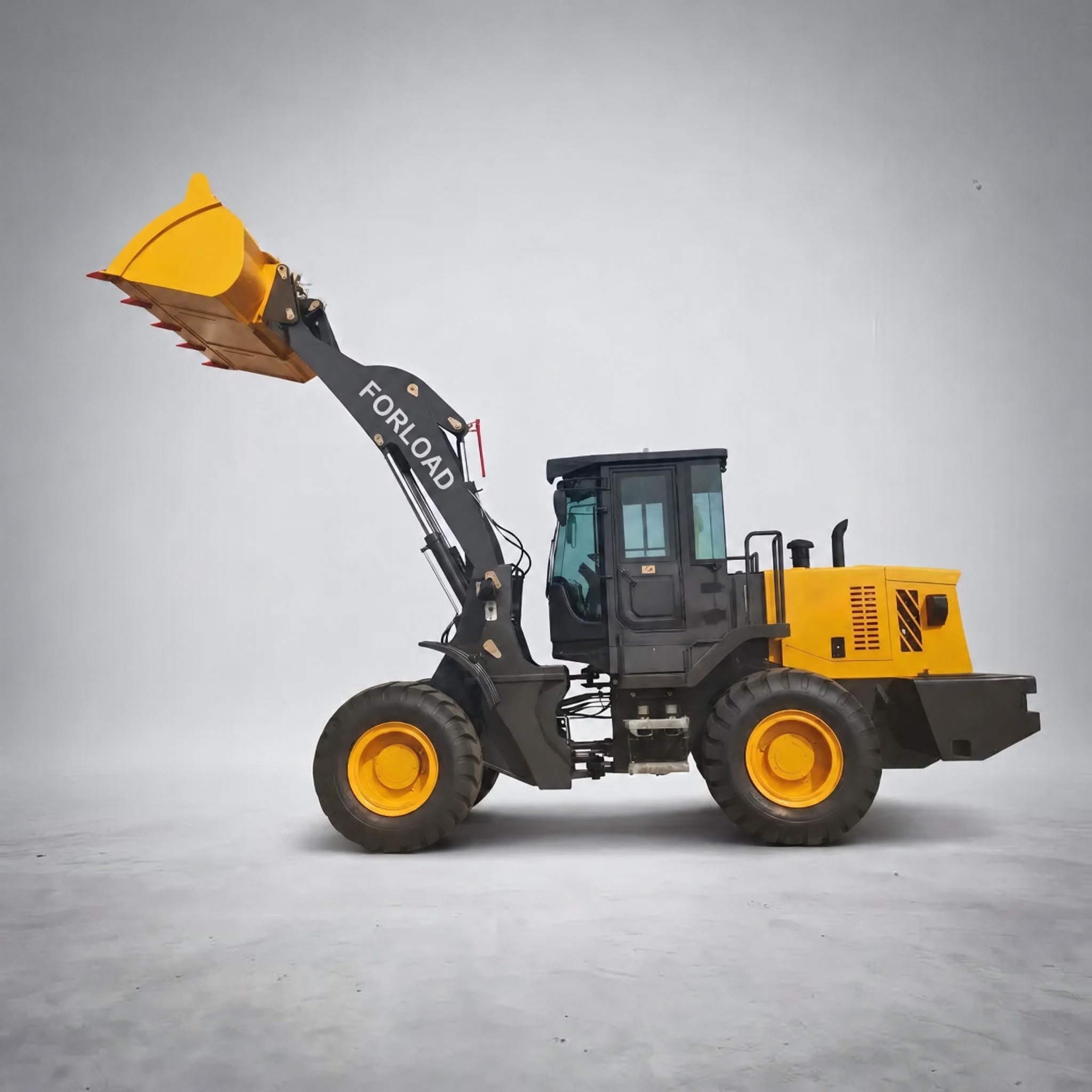

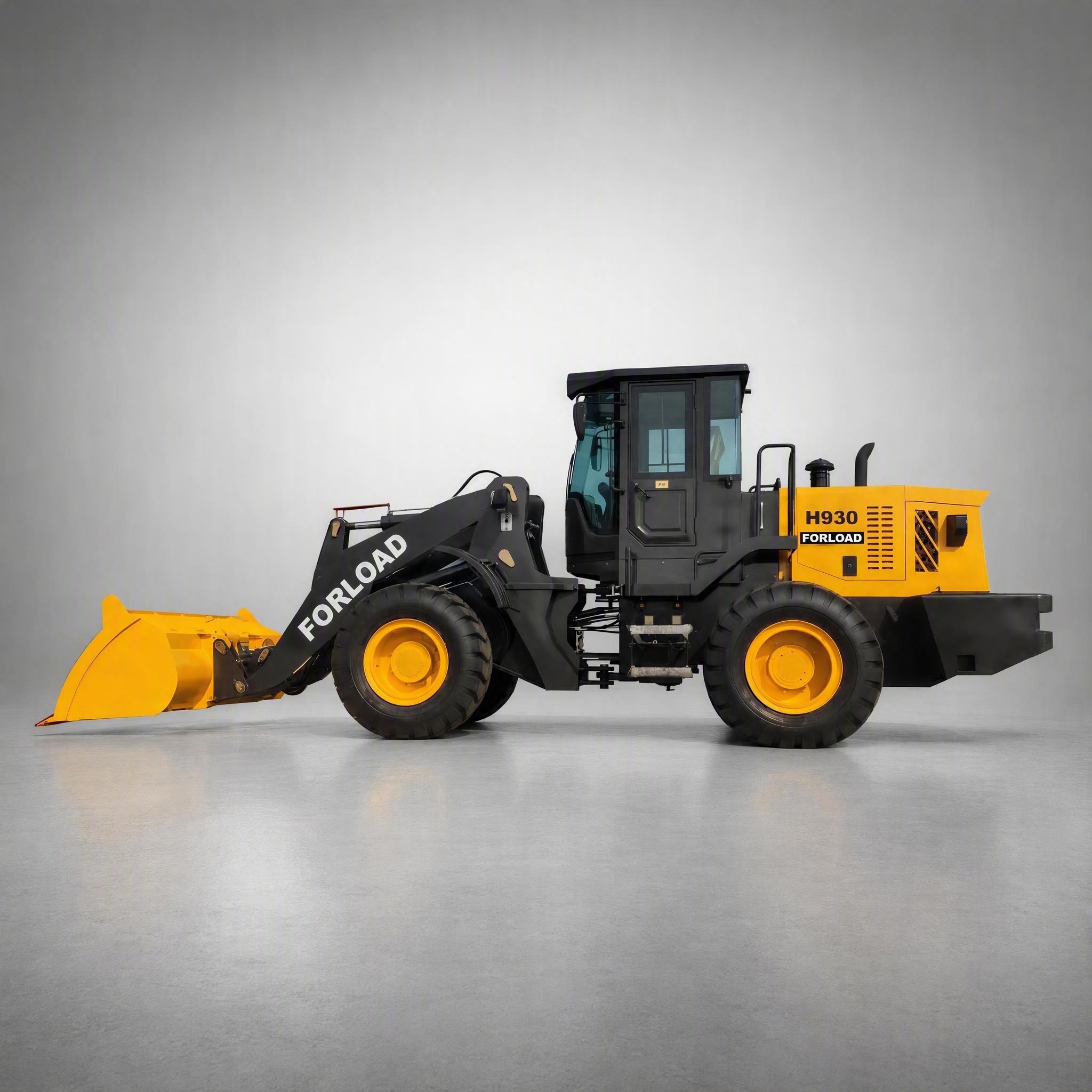

H930
FORLOAD
8429510000
| Availability: | |
|---|---|
| Quantity: | |
1-Reliable and durable: the mature fixed shaft transmission system, the overall frame has been verified for a long time, and the structure life has been greatly extended.
2-Job efficiency: strong rising forces and traction, more efficient operations.
3-Energy saving economy: optimize low-speed engine, large displacement shunt hydraulic system, high efficiency energy saving.
4-Comfortable operation: Simple operation, light steering, low noise.
5-Advanced cooling system: using water-cooled drive radiator, can effectively balance water and oil temperature, improve transmission bearing life.
Main parameters:
Performance | 1 | Rated loading | 3000kg |
2 | Overall weight | 9600kg | |
3 | Bucket capacity | 1.8-2.5m3 | |
4 | Maximum dump height | 3100mm | |
5 | Maximum dump reach | 966mm | |
6 | Overall dimension (L×W×H) | 6890*2430*3070mm | |
Engine | 7 | Model | Deutz engines WP6G125E22 |
8 | Rated power | 92kw—2200r/min | |
Transmission system | 9 | Torque converter | YJ315-X |
10 | Gearbox mode | Power shaft normally engaged straight gear | |
11 | Gears | 4 forward 2 reverse | |
12 | Maximum speed | 40km/h | |
Drive axles | 13 | Main reducing spiral | Bevel gear grade1 reduction |
14 | Wheelbase (mm) | 2740mm | |
15 | Wheel tread | 1800mm | |
16 | Ground clearance | 400mm | |
Tire | 17 | Type specification | 17.5-25 |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
