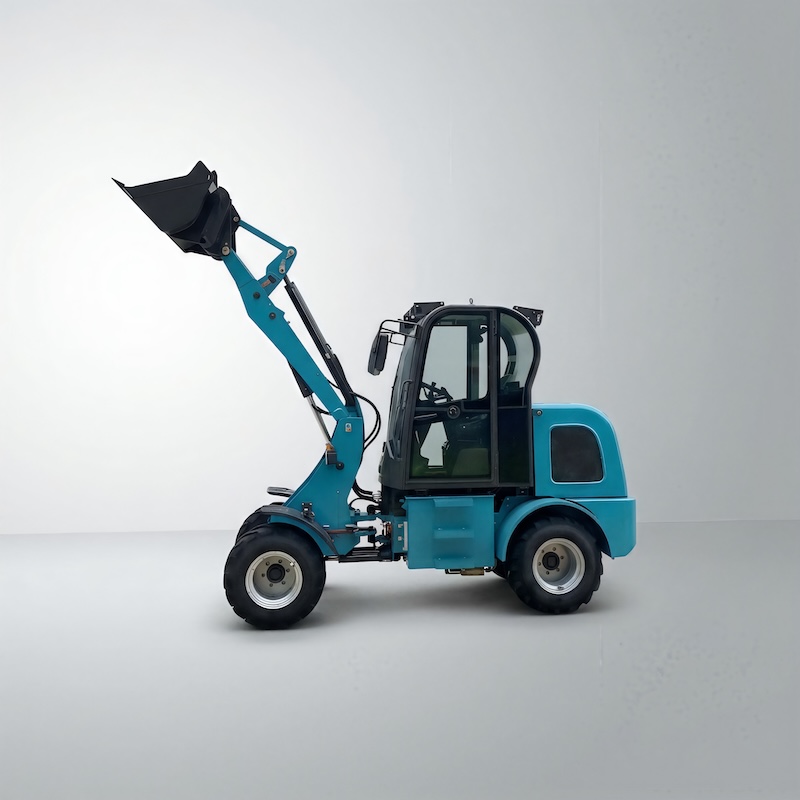

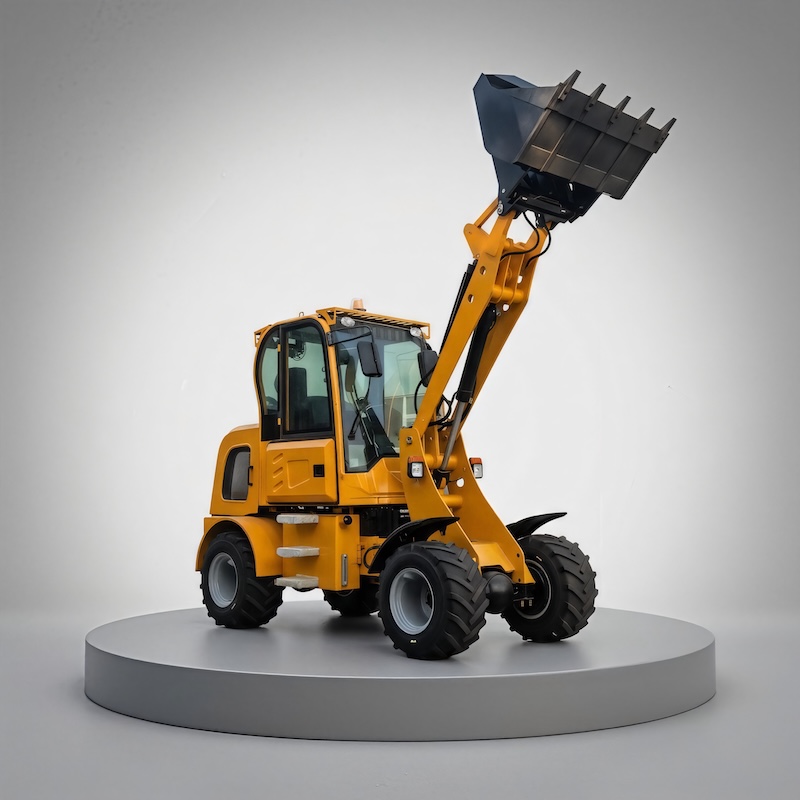

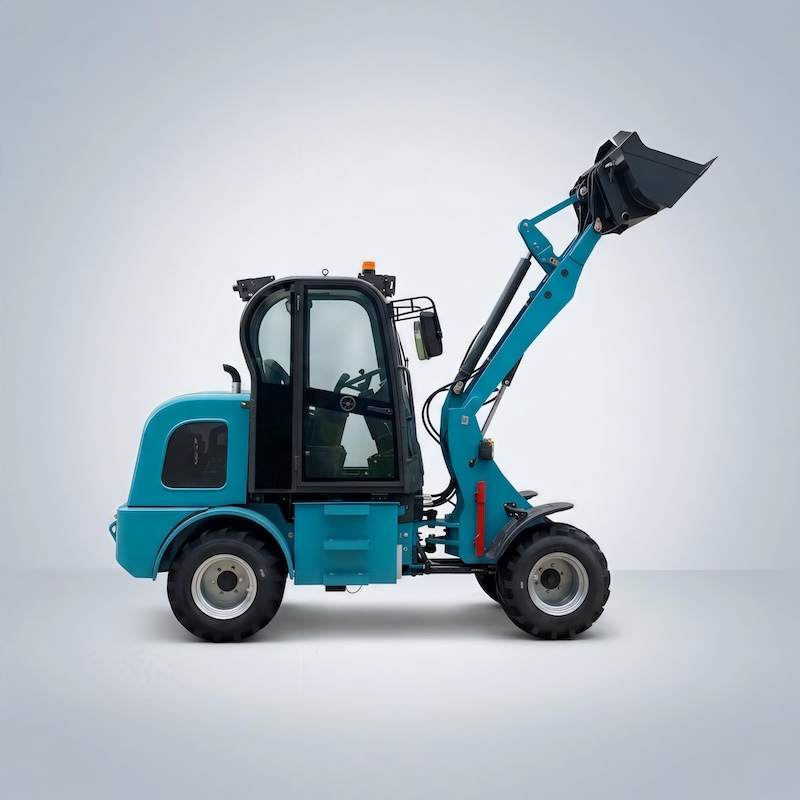

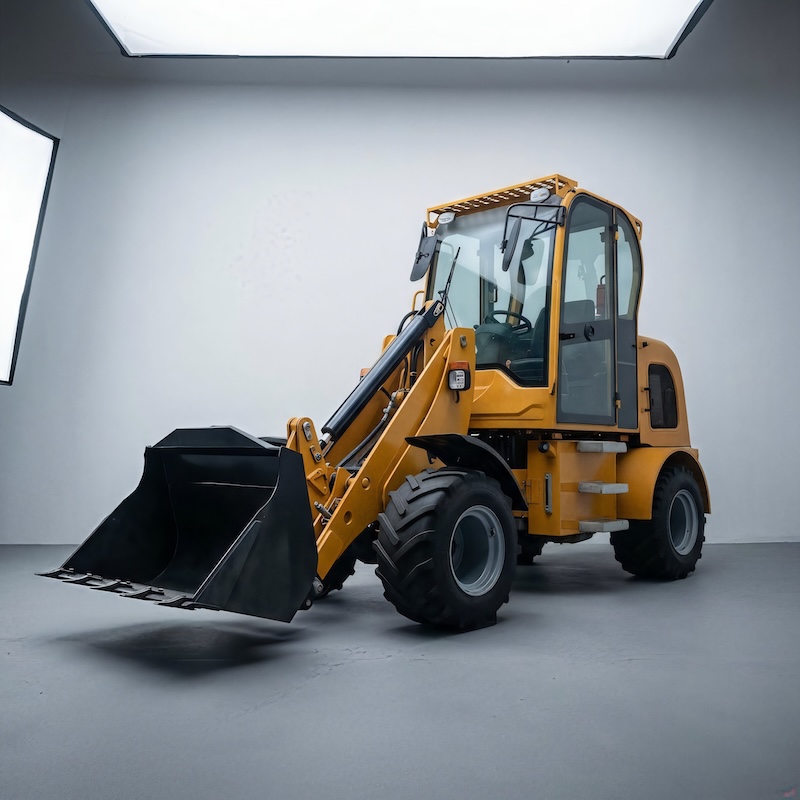

FORLOAD brand H280 model small wheel loader, is one compact front end loader, special design for farmyard, livestock yard.
H280 mini loader have two versions, one is with torque converter, and another one is hydrostatic transmission type with plug piston motor and plug piston pump.
LAIDONG, YUNNEI, YANMAR, KUBOTA Euro5 and EPA4 engine for optional, to meet different clients’ different request.
Main parameters:
Specification | Overall weight(kg) | 2500 |
L×W×H(mm) | 4500X1650X2200mm |
Rated bucket capacity(m3) | 0.5 |
Rated load(kg) | 1000 |
Lifting height(mm) | 3500 |
Max. dump height (mm) | 2200 |
Engine | Model | LAIDONG KM385B |
Type | Vertical, In-line , Water cooling, four-stroke diesel engine |
Rated power(kw) | 29KW |
Transmission system | Type | Torque converter |
Gearshift | 2 gears ahead,2 gear astern |
Hydraulic system | Working pressure | 16Mpa |
Working flow | 32ml/r |
Walking flow | 16ml/r |
Steering system | Type | Hydraulic steering |
Steering angle | 35° |
Tires | Standard tires | 31*15.5-15 |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
