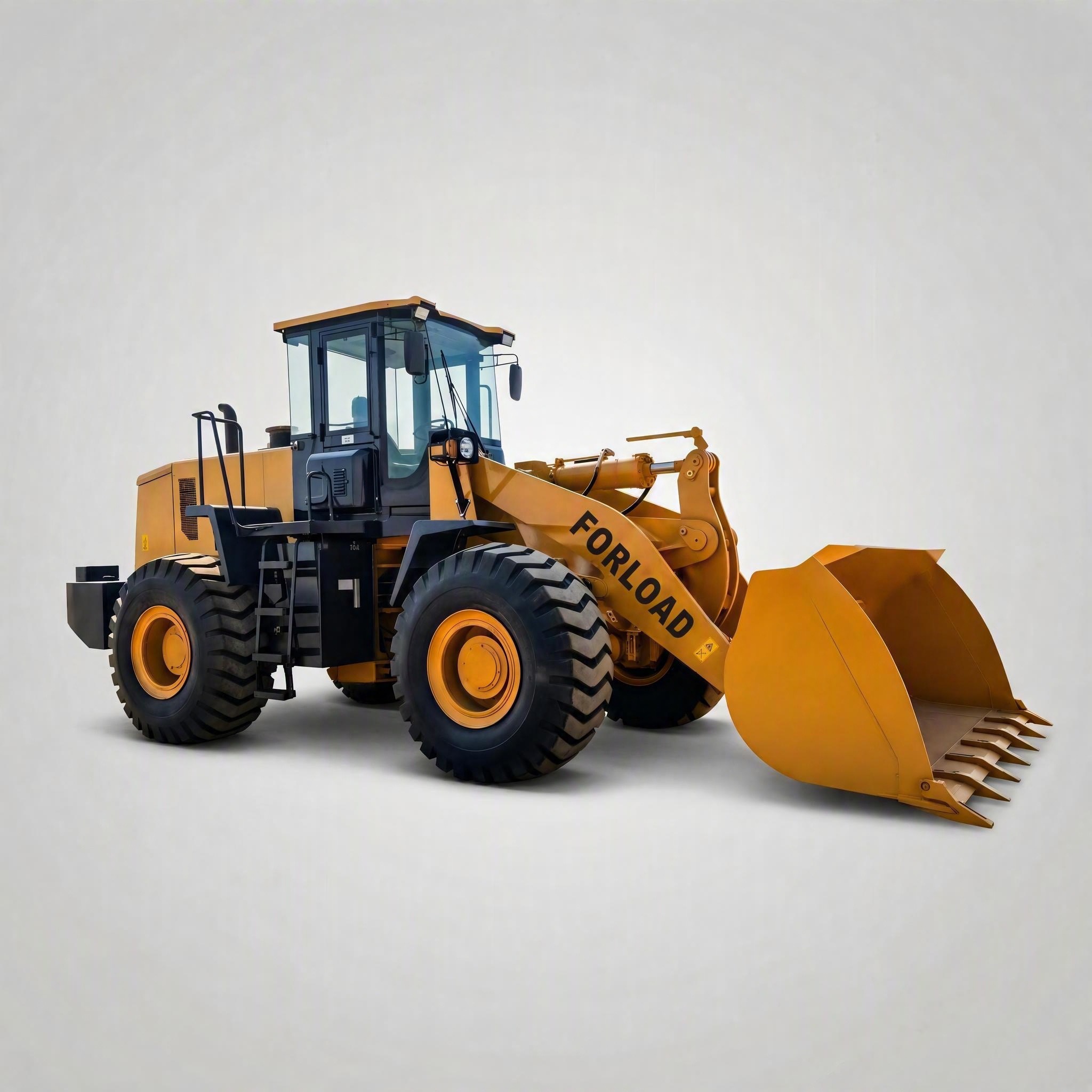

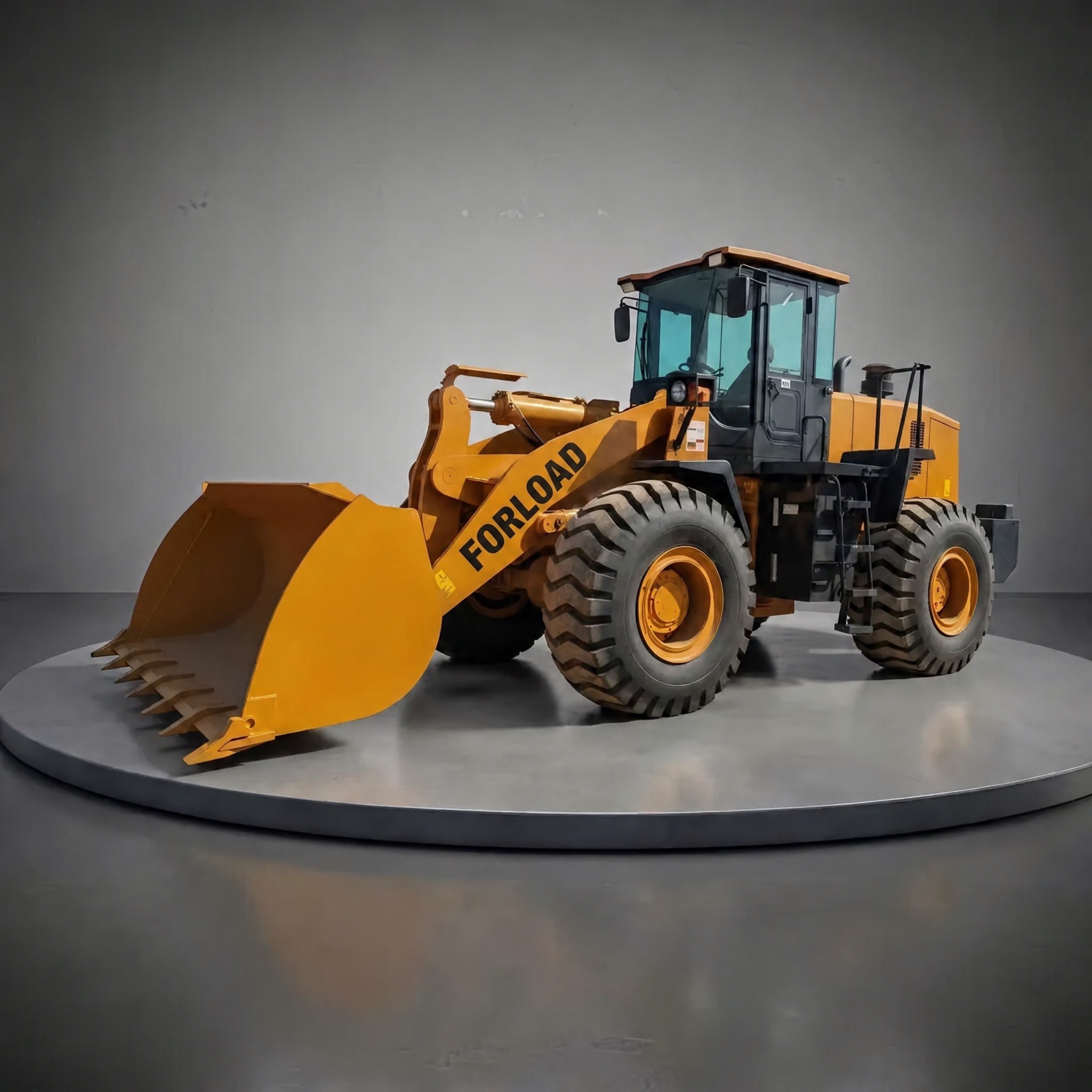

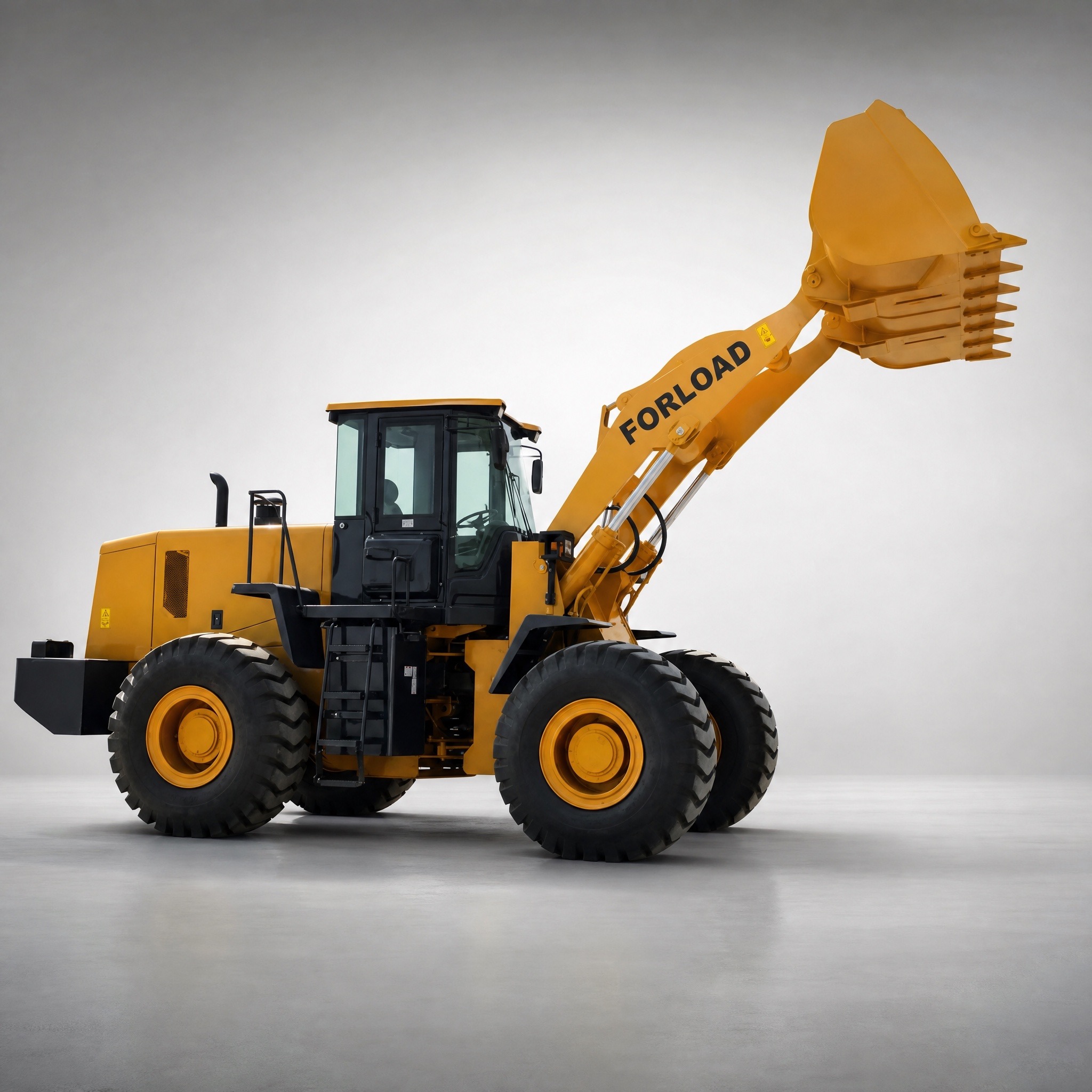

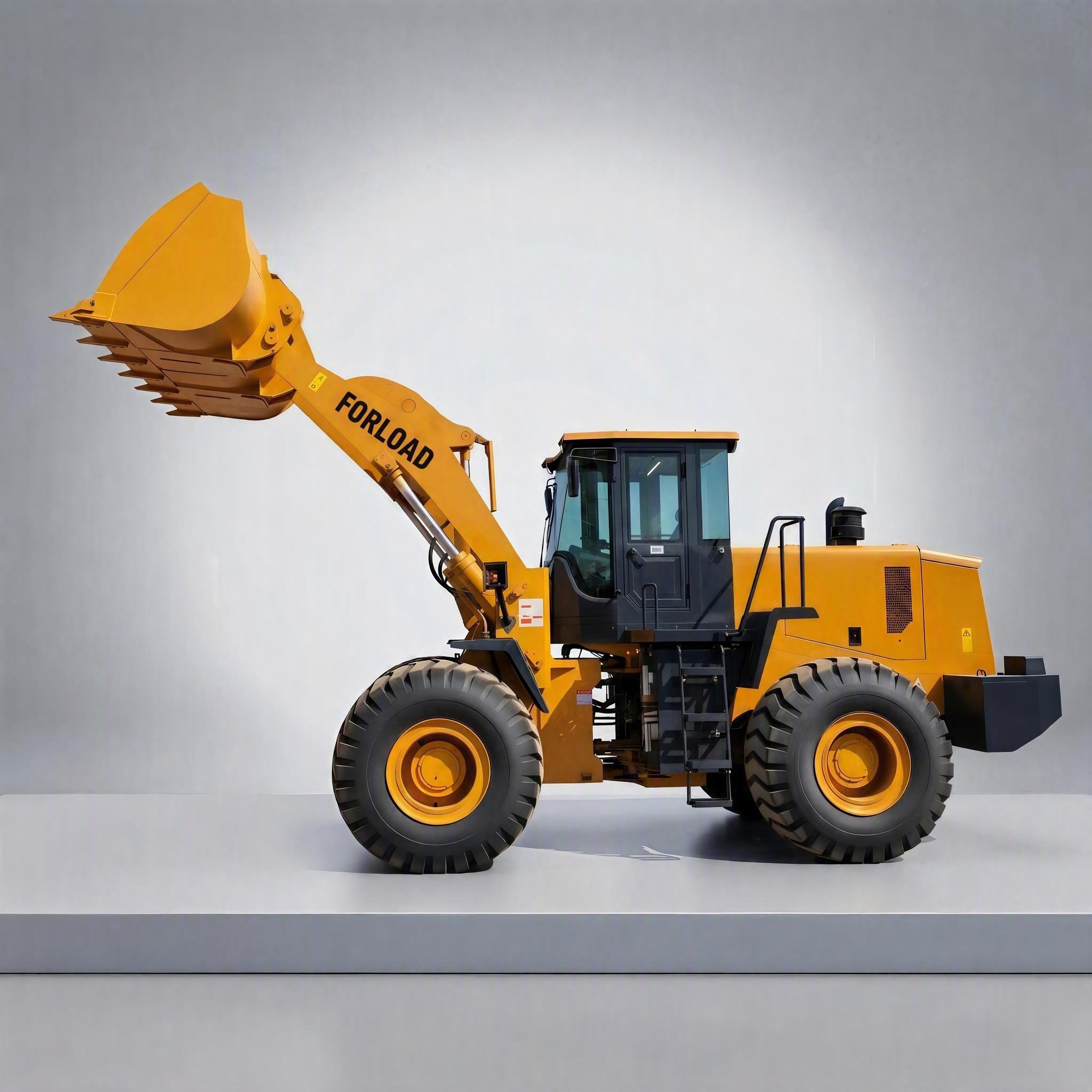

1-Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.
2-Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable.
3-Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety.
4-Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise ,high reliability .Double-stage air filter is standard equipment for dusty fields.
5-Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable.
6-Twin pump-merging flow of working pump and steering pump. When the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy.
7-Pilot hydraulic implement controls make operate easy and comfortable.
8-The big loading engine side covers made in steel are of good appearance and suitable for maintenance.
Main parameters:
Performance | 1 | rated load | 5000kg |
2 | overall weight | 16500kg |
3 | rated bucket capacity | 3.0m3 |
4 | maximum dump height | 3142mm |
5 | maximum dump reach | 1250mm |
6 | overall dimension (L×W×H) | 8085×2965×3450mm |
Engine | 7 | model | Weichai Steyr WD10G220E23 |
8 | No. of cylinder-bore/stroke | 6－126×130mm |
9 | rated power | 162kw--2000r/min |
Transmission system | 10 | torque converter | Single stage two phase four components |
11 | gearbox mode | Power shift planetary structure |
12 | gear shift | 2 forward shift, 1 reverse shift |
13 | maximum speed | 38km/h |
Drive axles | 14 | main reducing spiral | bevel gear grade 1reduction |
15 | decelerating mode | planetary reduction, grade 1 |
16 | wheel base (mm) | 3250mm |
17 | wheel tread(mm) | 2250mm |
18 | minimum ground clearance | 450mm |
Tire | 19 | Size | 23.5-25 |
