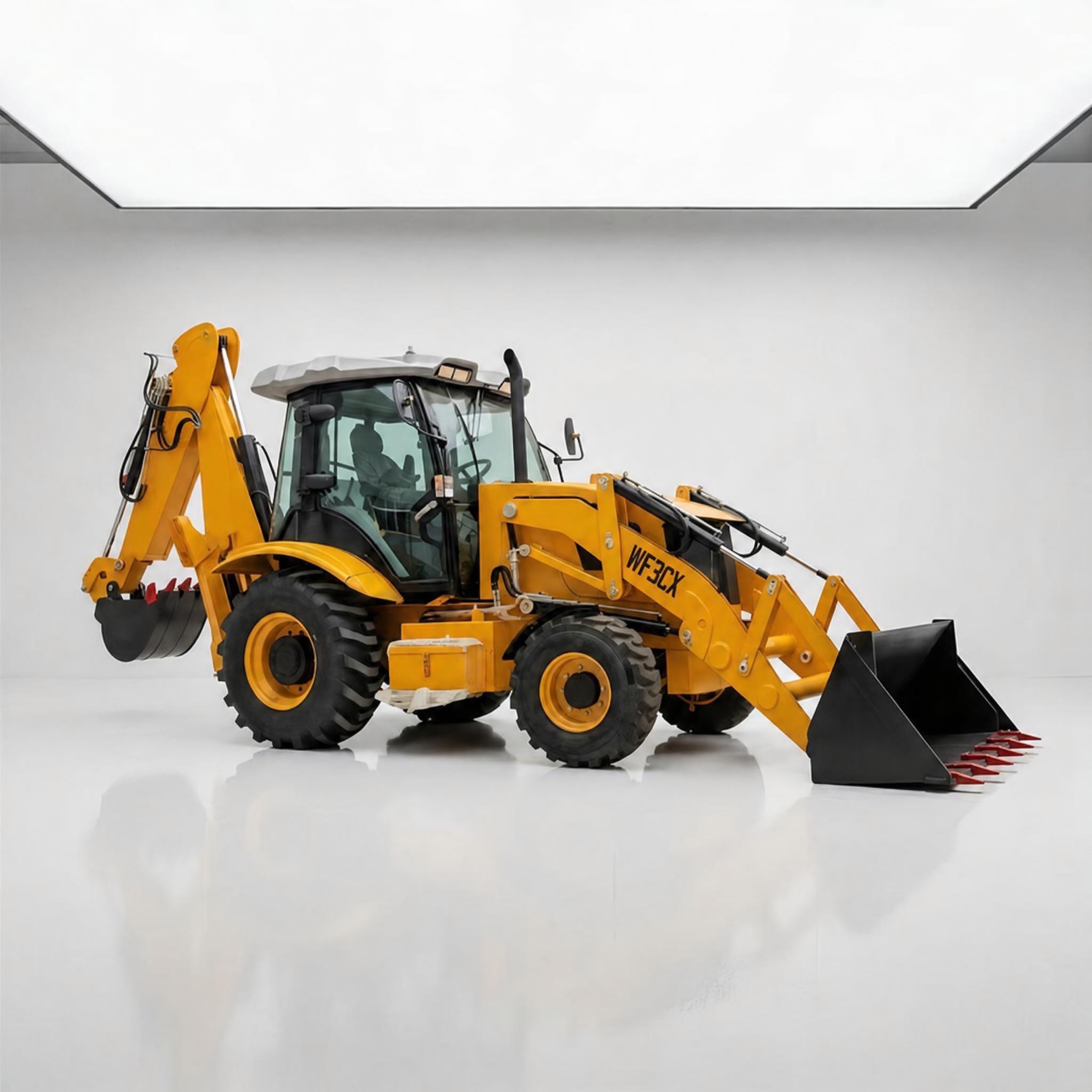

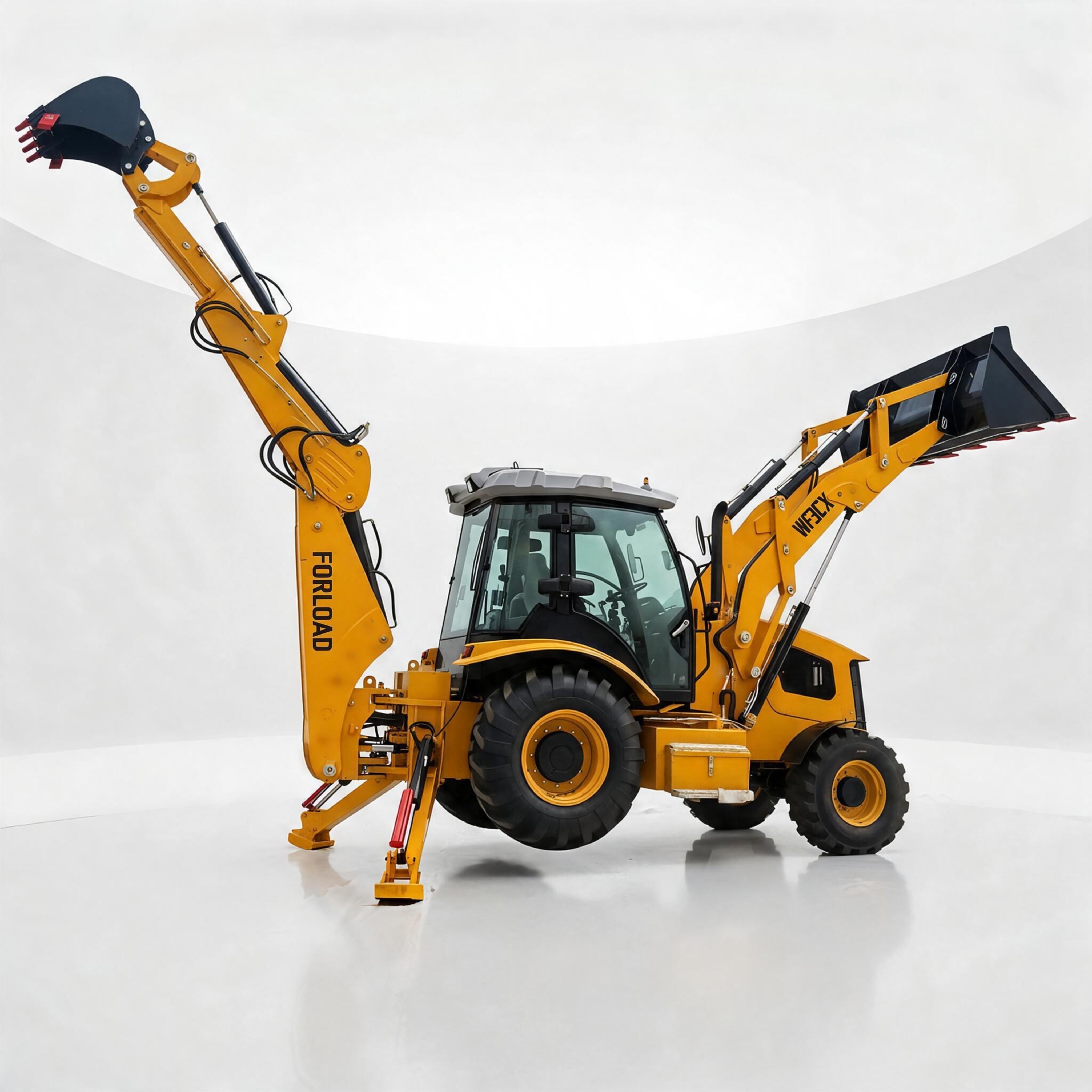

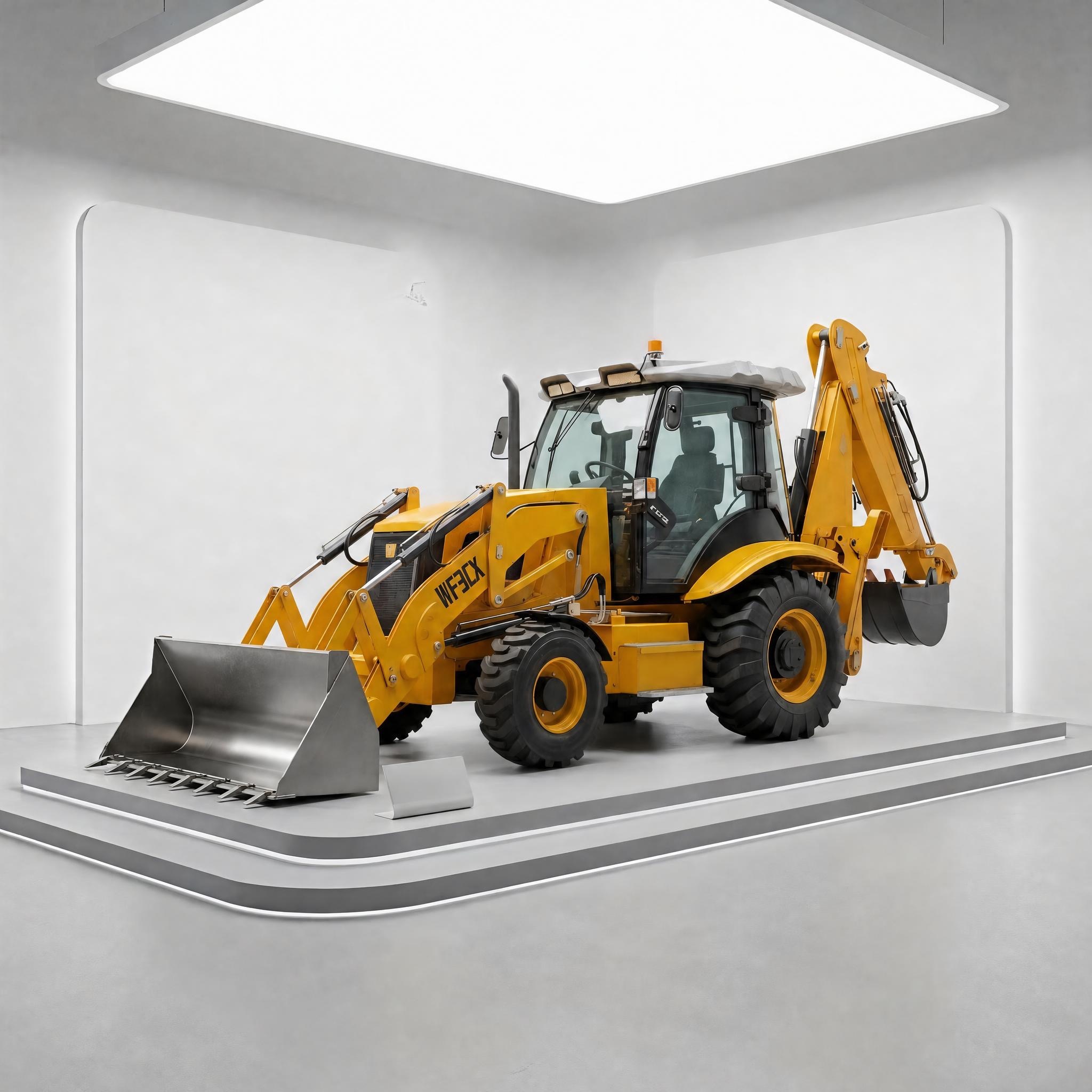

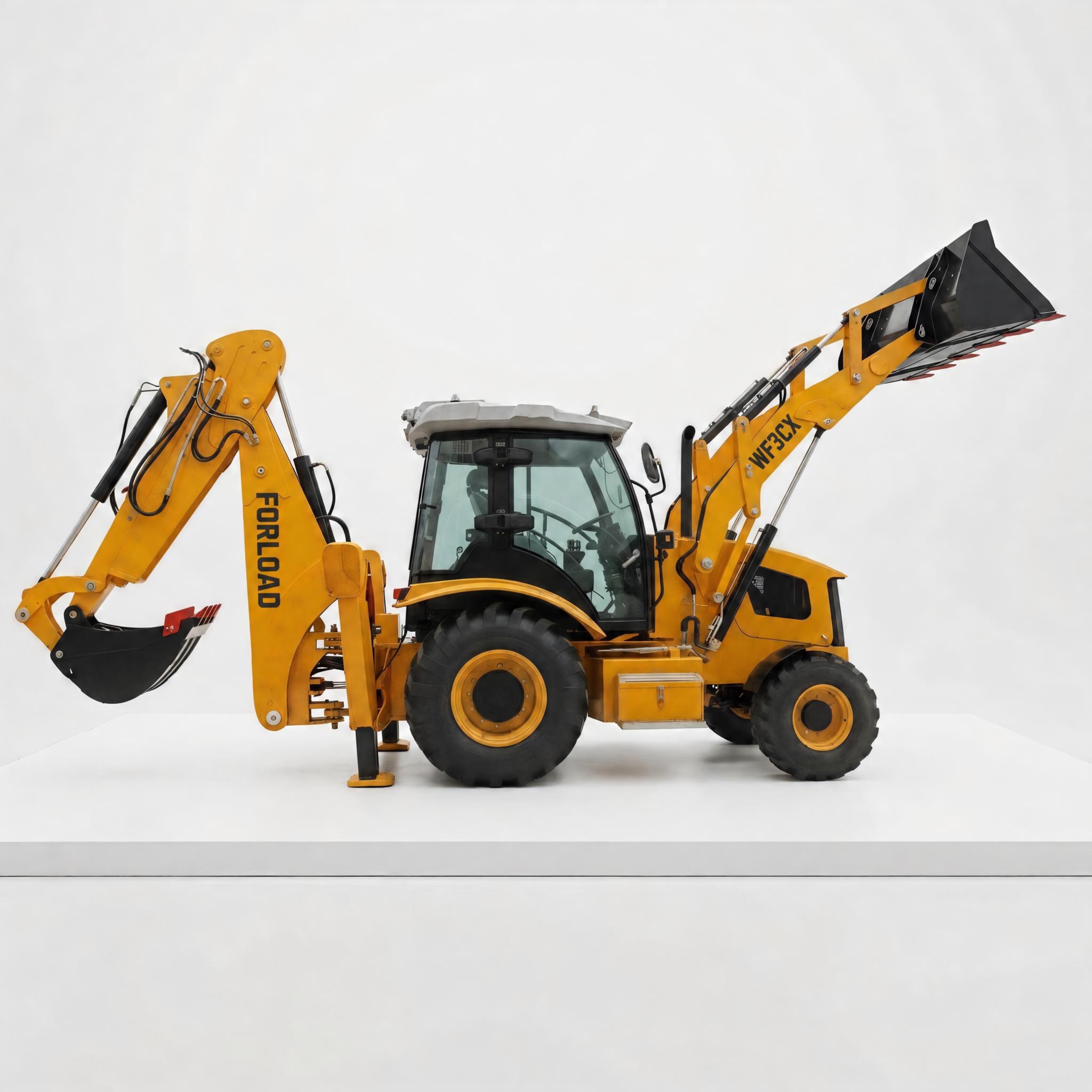

FORLOAD brand WF3CX backhoe wheel loader, is one multi-function construction machine, integrated front-end wheel loader and excavator function, could load and dig.
Because of its front and rear could change to use different attachments (forks, hammer, drill, 4in1 bucket, 6in1 bucket, sweeper, mixer bucket etc.) wide usage in various jobsites.
Main parameters:
Overall Operating Weight | 7800KG |
Transport Dimension |
L*W*H | 7600×2260×2890mm |
Wheelbase | 2250mm |
Min. Ground Clearance | 300mm |
Front Bucket Capacity | 1.3m3（2200mm width） |
Breakout Force | 38KN |
Loading Lifting Capacity | 2500KG |
Bucket Dumping Height | 2800mm |
Bucket Dumping Distance | 1062mm |
Backhoe bucket Capacity | 0.3m3（620mm width） |
Max. Digging Depth | 4000mm |
Optional Digging Depth | 5000mm-5500mm（Digging boom telescopic） |
Swing Angle of backhoe | 190o |
Max. Pulling Force | 39KN |
Engine |
Brand/Model | YUCHAI YCD4J22T-115 Turbo engine |
Type | In Line，Direct injection，Four-Stroke，Water Cooling |
Rated Power | 85KW |
Steering System |
Steering Angle | ±36 o |
Min. turning radius | 6581mm |
Pressure of the system | 12Mpa |
Axle |
Main Transmission Type | Double Reduction |
Final Reducer | Single Stage Final Reducer |
Rated Loader of Axle | 4/18.5t |
Tire |
Size | （F）14-17.5 （R）19.5L-24 |
Pressure of Front wheel | 0.22 Mpa |
Pressure of Back Wheel | 0.22 Mpa |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
