1-Streamlined appearance design, elegant and generous.
2-Fully hydraulic steering system, joystick and quick hitch to make sure easily operation.
3-New Rops/Fops luxury cabin, equipment air suspension seat, heater, warning lamp, reverse camera; the operating environment is more comfortable.
4-Quick hitch and 4th extra hydraulic line are standard equipment, to make sure can use different accessories and meet different working usage: pallet fork, 4in1 bucket, high dump bucket, wood/grass grab, snow blower, snow V-blade, sweeper, snow bucket with hydraulic wing, hammer etc.
5-Streamline new heavy type counterweight, heavy axle, new rotary type articulated joint, LED dashboard, Z type connecting rod.
6-DF CUMMINS 74KW engine, XINCHAI EURO5 engine are optional; Air conditioner optional.
Main parameters:

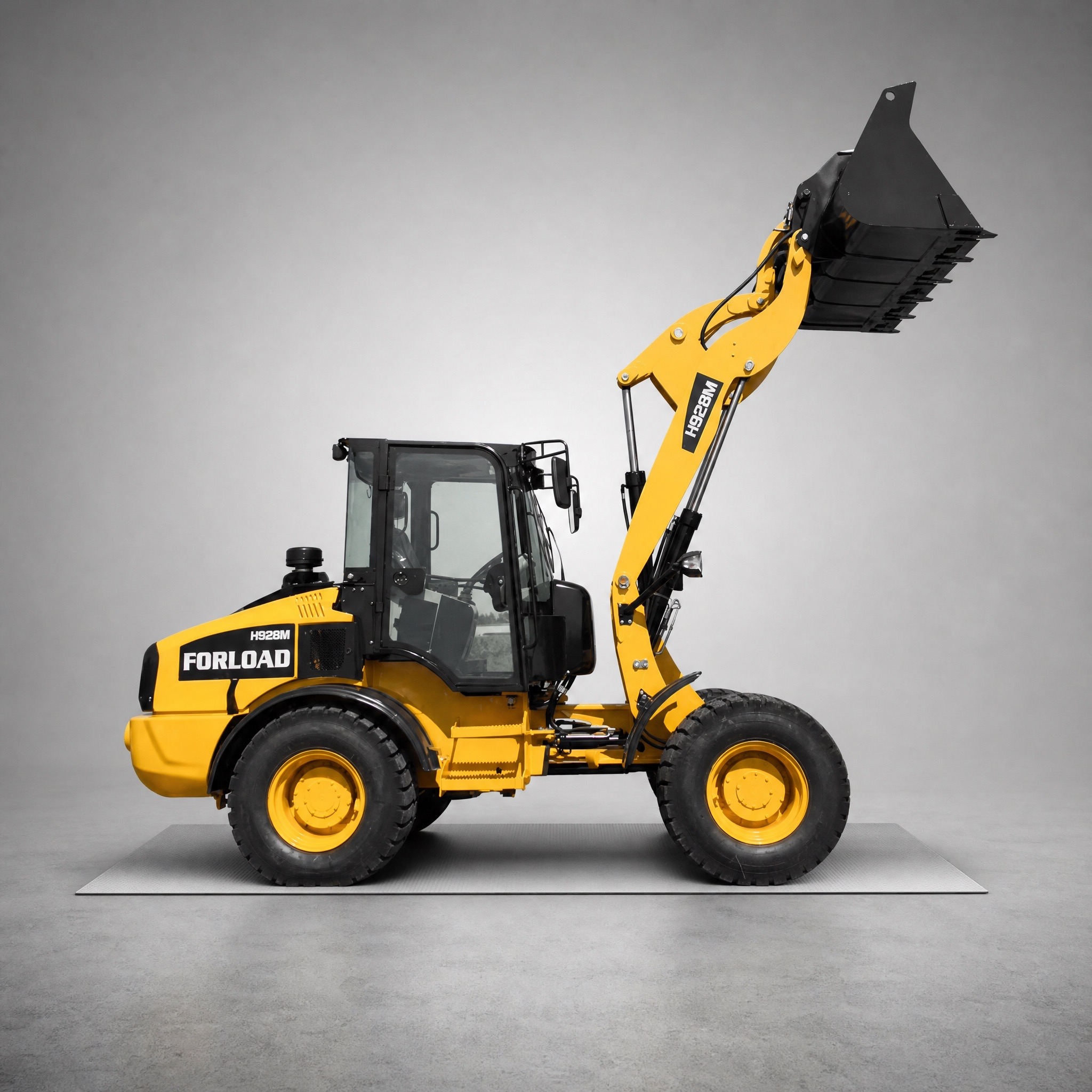

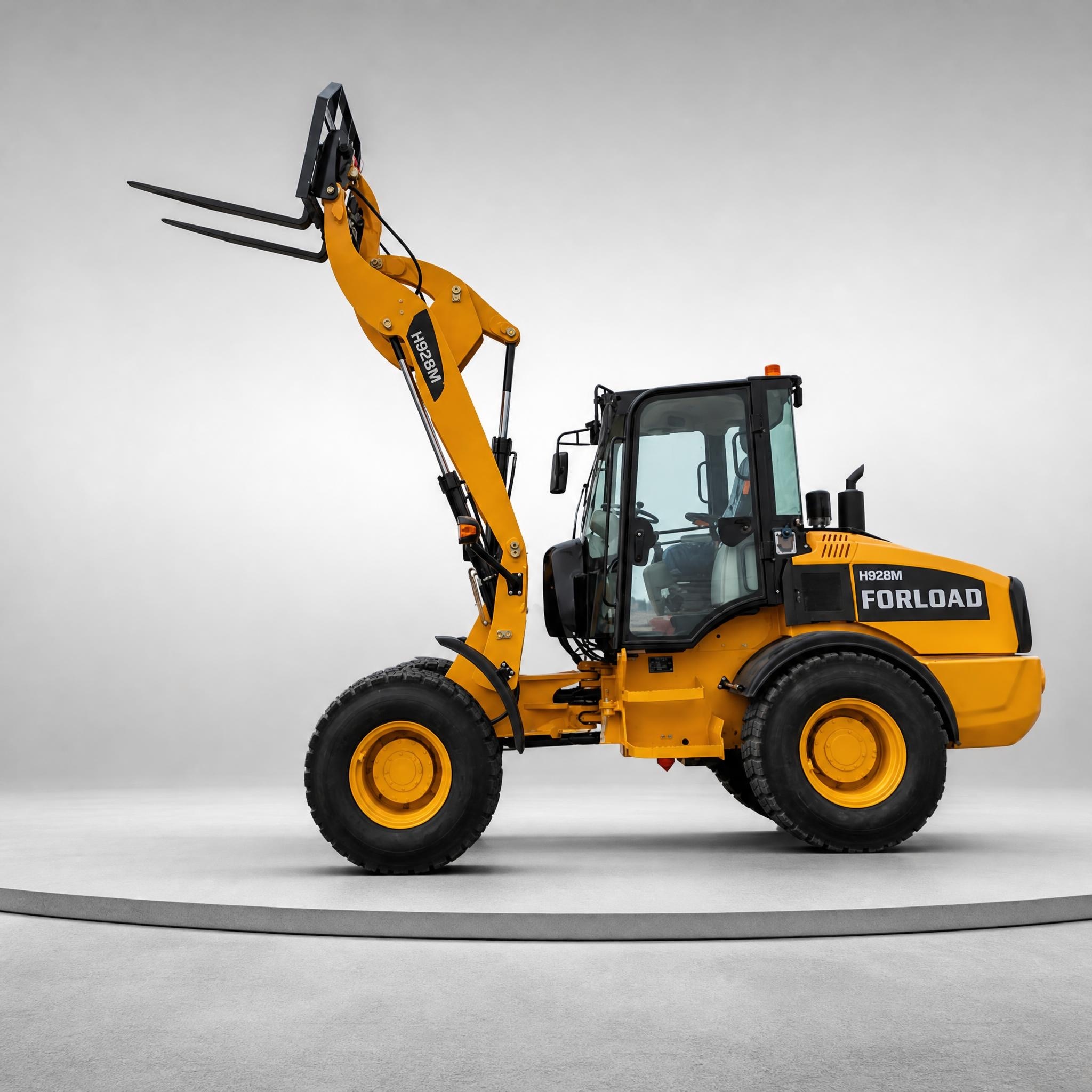

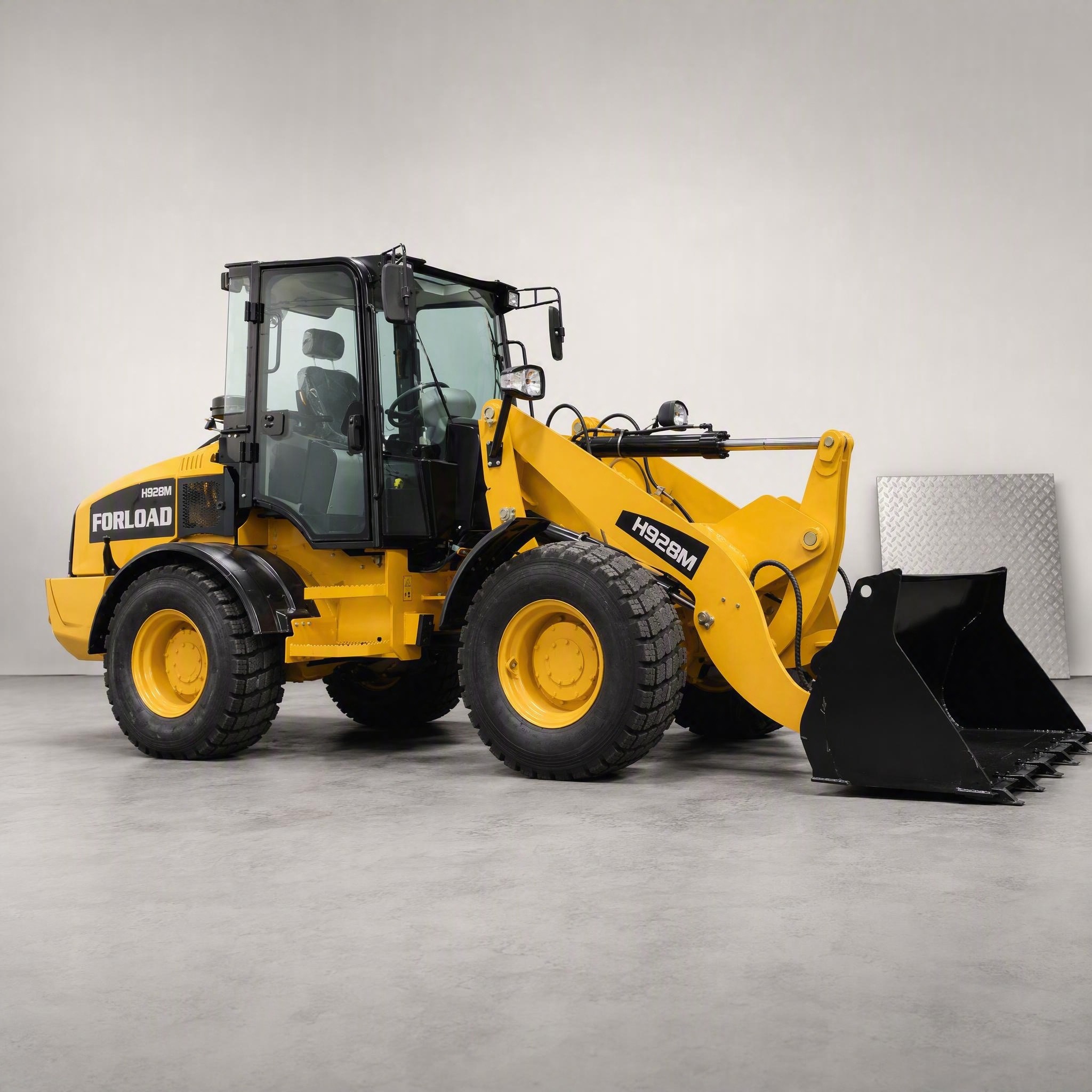

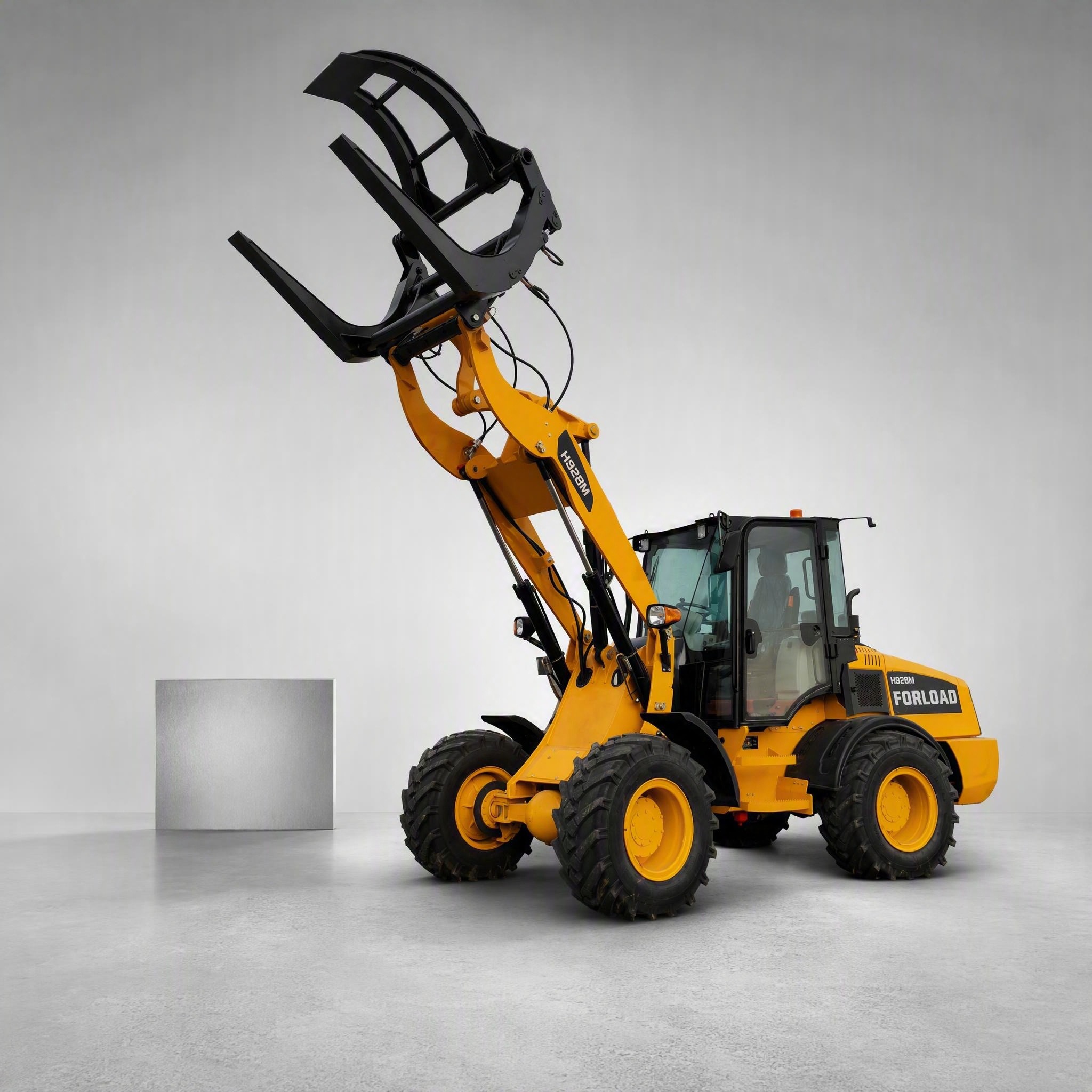

Performance | Model | H928M |
Rated loading | 2500kg |
Operation weight | 6000kg |
Rated bucket capacity | 1.2m3 |
Max. Dump height | 2800~3500mm |
Dump distance | 930mm |
Overall dimension (LxWxH) | 6170x2040x2695mm |
Engine | Model | YN38GBZ, YUNNEI brand |
Rated power | 76KW / 2400rpm |
Transmission system | Torque converter | ZL265 |
Gear shift | 2 forward, 2 reverse |
Max. Speed | 30km/h |
Drive axle | Type | Big wheel hub axle |
Wheelbase | 2670mm |
Track base | 1600mm |
Min. ground clearance | 400mm |
Tire | Tire size | 16/70-20 |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
