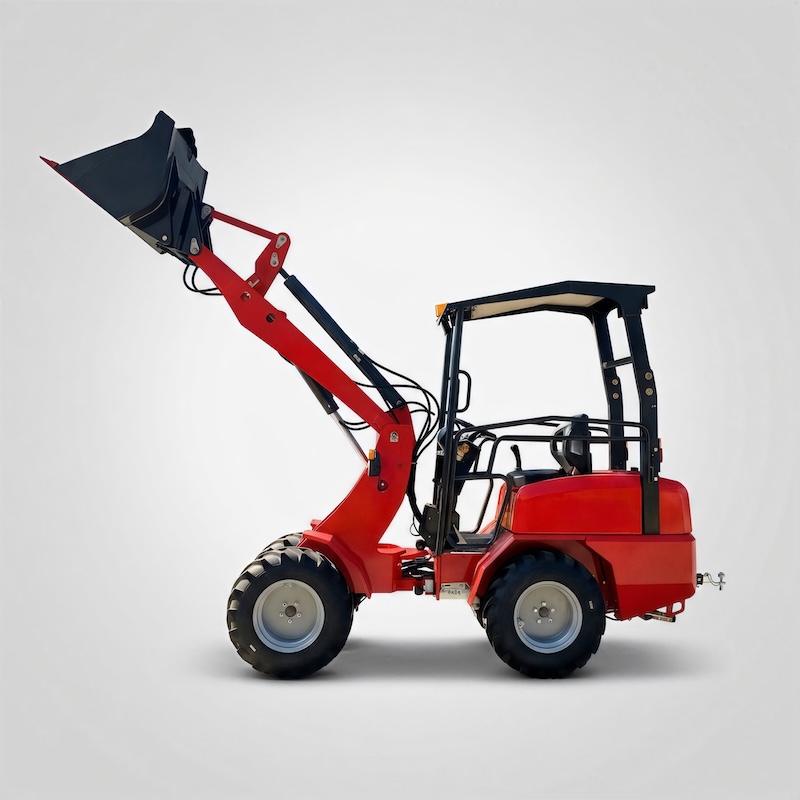

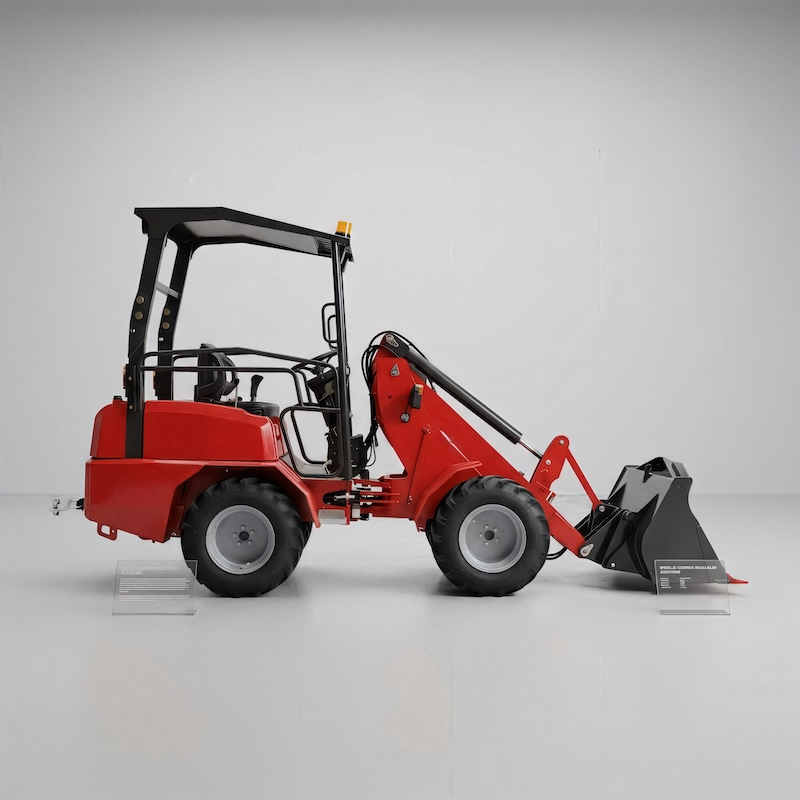

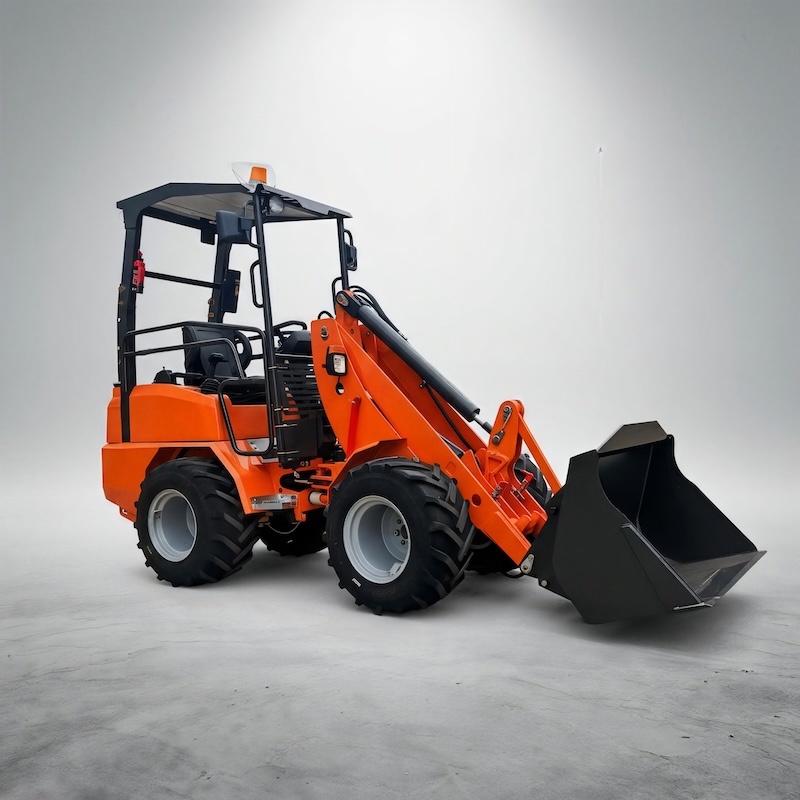

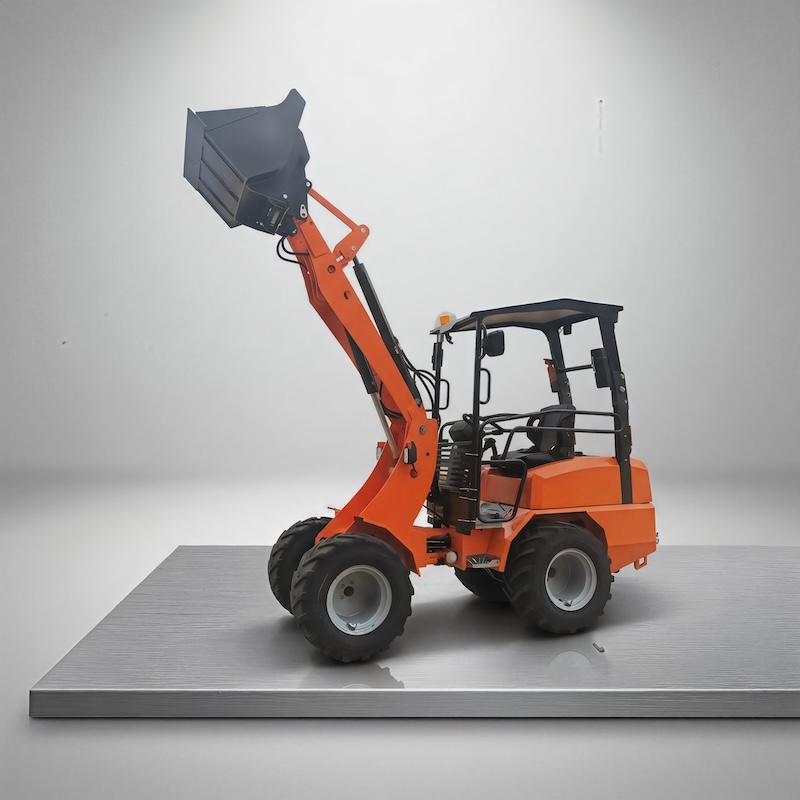

FORLOAD brand H180 model small wheel loader, is one compact front end loader, special design for farmyard, livestock yard.
Because its height meets the requirements of livestock farms, it is highly popular among farmers.
Also, this H180 mini loader could use different brand engine, Yanmar, Kubota, Perkins etc. meet EURO5 and EPA4 standard, much popular in EU market.
Main parameters:
Performance | Model | H180 |
Rated loading | 800kg |
Operation weight | 2000kg |
Bucket capacity | 0.3cbm |
Min. ground clearance | 200mm |
Wheelbase | 1564mm |
Max. dump height | 2286mm |
Max. lifting height | 3536mm |
Dig | Dinging depth | 94mm |
Dump distance | 390mm |
Overall dimension (L*W*H) | 4300x1160x2150mm |
Track base | 872mm |
Dumping angle | 45° |
Function of leveling automatic | Yes |
Engine (standard) | Brand | LAIDONG KM385B |
Type | Vertical, in-line, water cooling, 3-cylinder |
Rated power | 29KW |
Transmission system | Type | Hydrostatic |
System pump type | Variable displacement piston |
Drive type | Independent wheel motors |
Classic angle oscillation | 7.5 each way |
Max. speed | 20km/h |
Tire | Tire model | 10.0/75-15.3 |
Optional Tire | 31x15.5x15 |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
