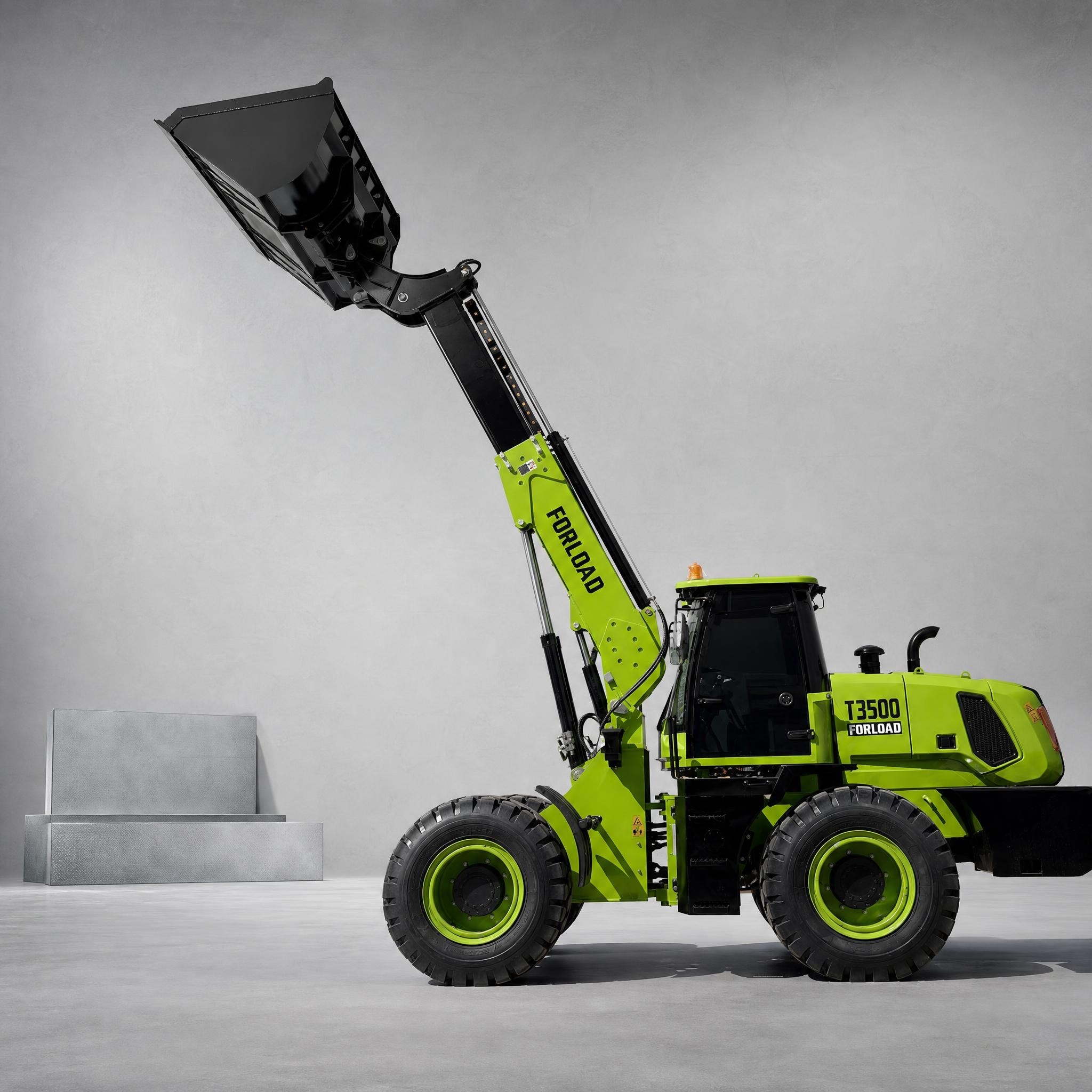

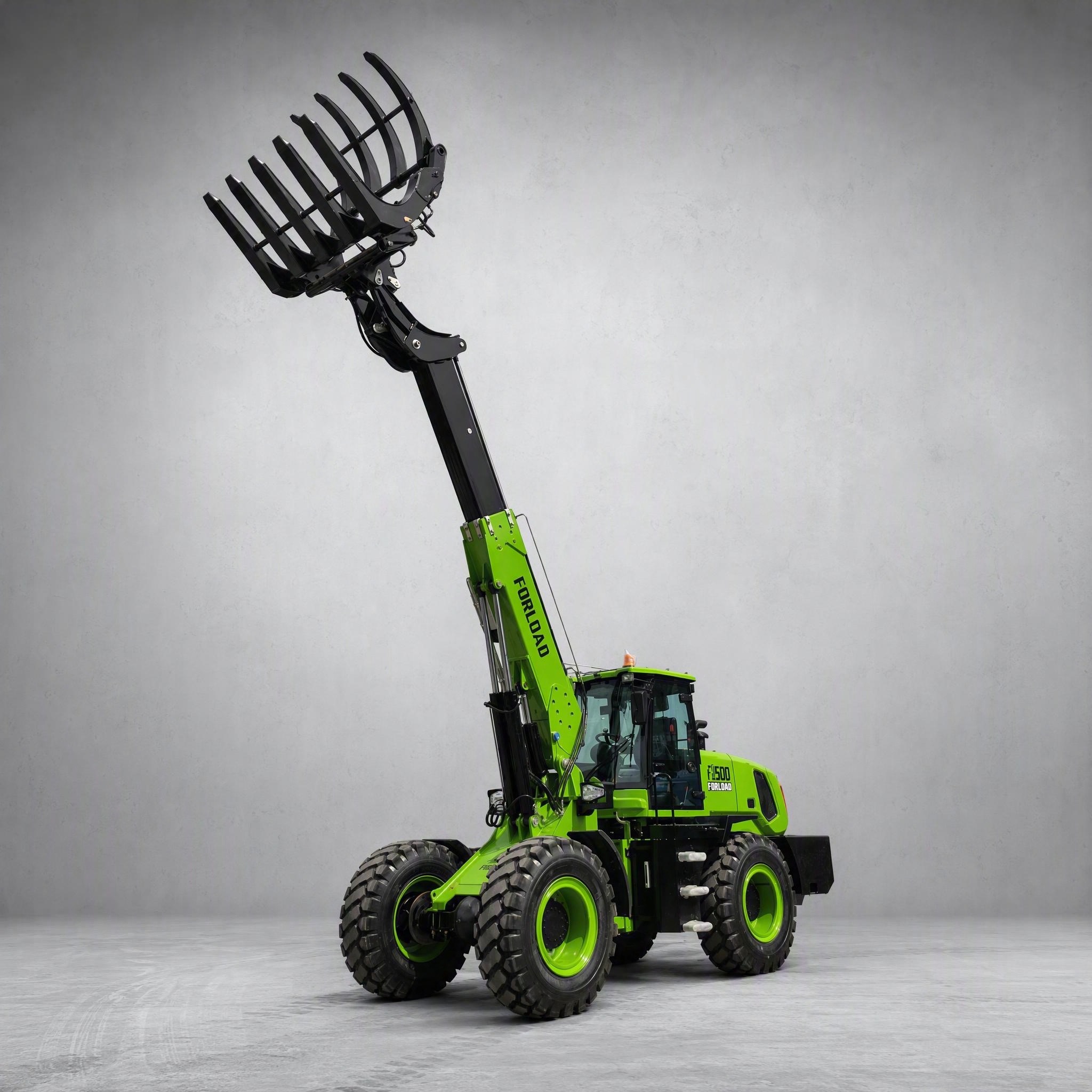

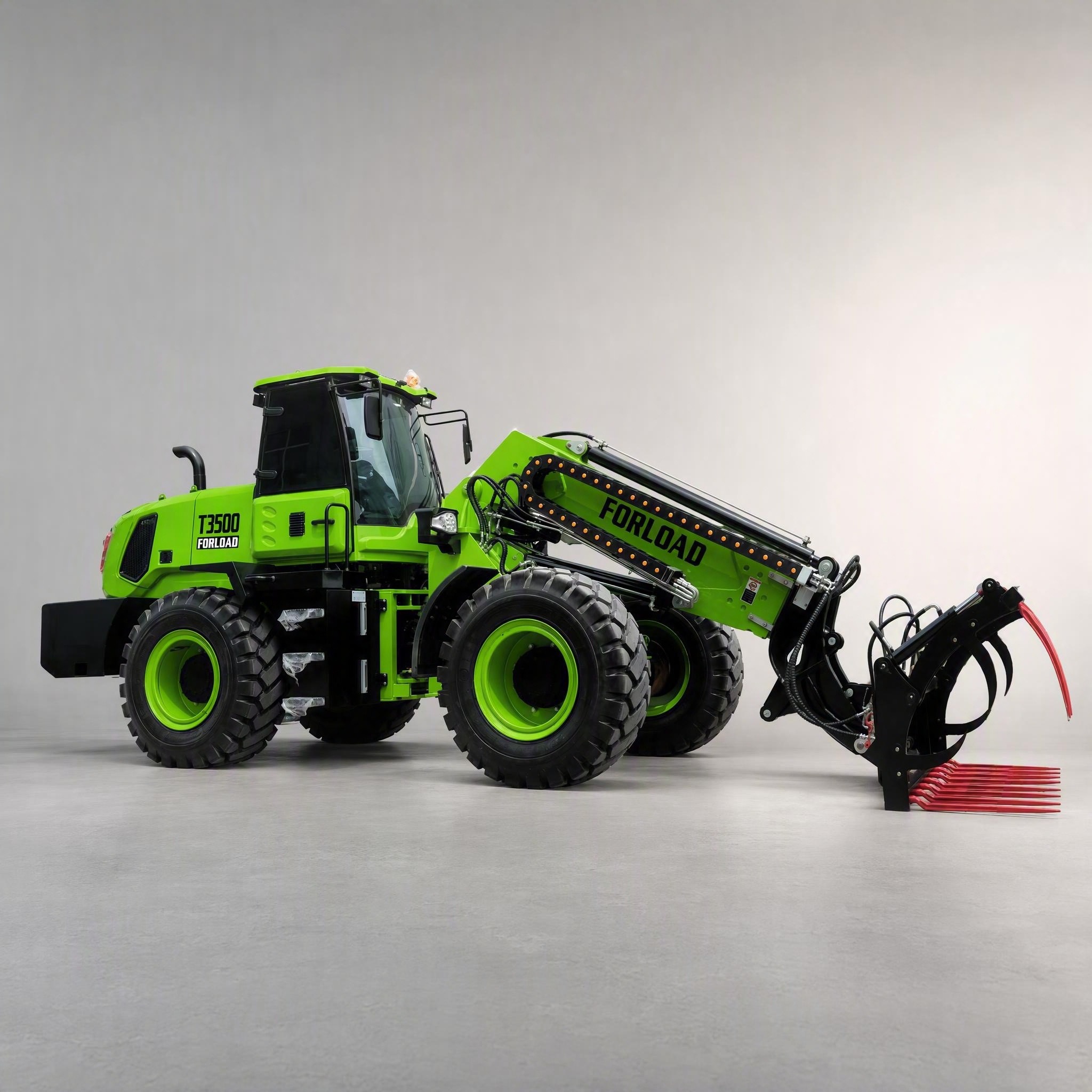

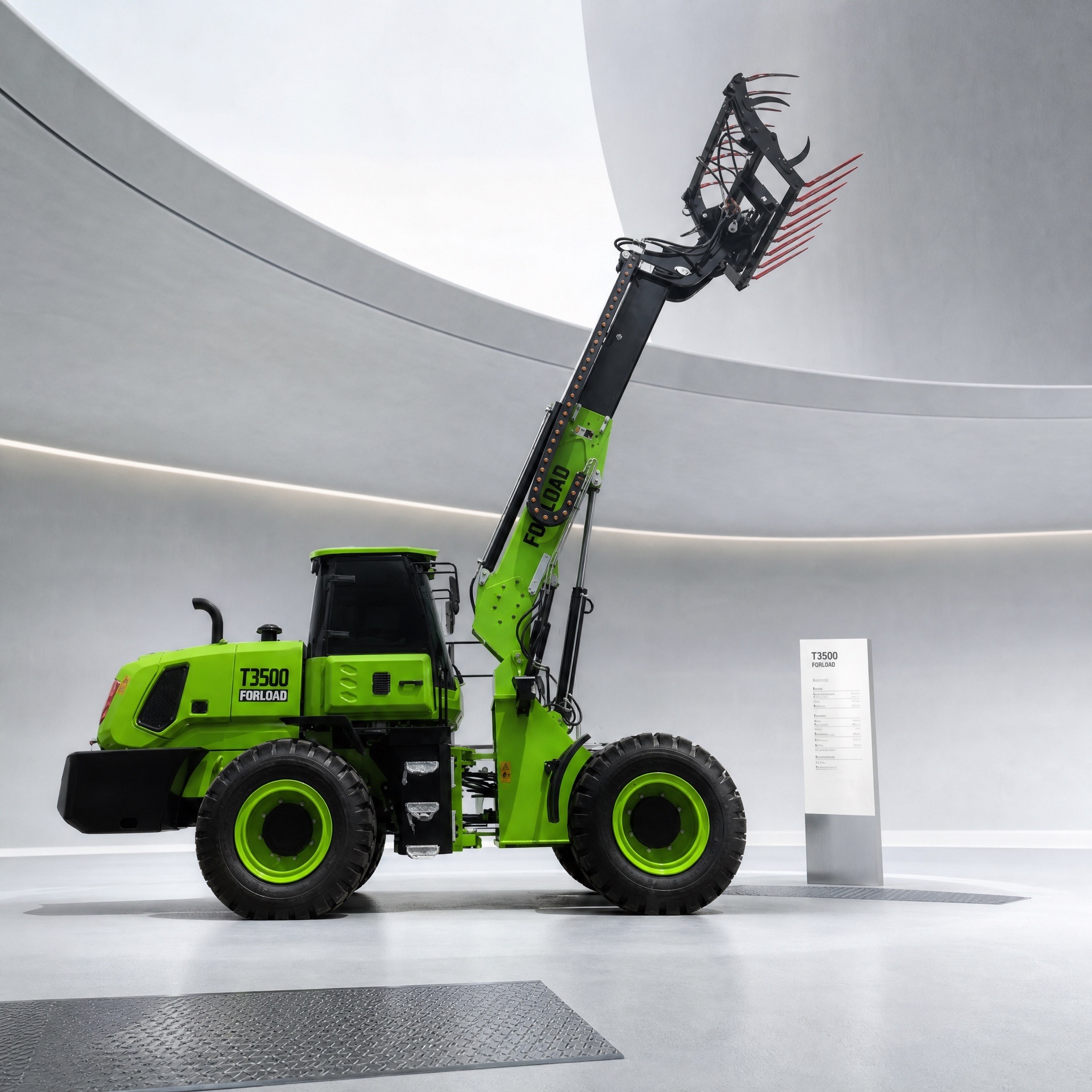

T3500 telescopic wheel loader, is one loading capacity 3.5tons multi-function front-end wheel loader.
It equips with WEICHAI 92KW six cylinders engine, four-way multi valve and hydraulic joystick control.
Luxury cabin with air conditioner, heater, suspension seat and big screen rearview camera.
The tire size is 17.5-25 which mounted on strong durable axles, and it is 4WD type.
Front end with quick hitch, could use different attachments to meet various jobsite request, including grain bucket, pallet forks, pitch forks, grass grab, wood grab, hook, working platform, snow blower, mixer bucket, sweeper etc.
Main parameters:
1.0 Engine |
(1) Brand/Model | WEICHAI |
(2) Rated Power | 92KW |
2.0 Overall Dimensions |
(1) Overall Length | 7500mm |
(2) Overall Width | 2280mm |
(3) Overall Height | 3200mm |
(4) Bucket Max. lift height | 6500mm |
(5) Max. unloading height | 5300mm |
3.0 Transmission System 315 Gearbox Hydraulic converters + Drive shaft +28 Hub reduction axle |
4.0 Bucket |
(1) Capacity | 1.8m³ |
(2) Width | 2300mm |
(3) Type | Heavy-duty bolt on teeth |
(4) Max. Load capacity | 3500kg including bucket or attachment |
5.0 Tire |
(1) Size | 17.5-25 Herringbone Tire |
6.0 Operation Weight | 9000KG |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
