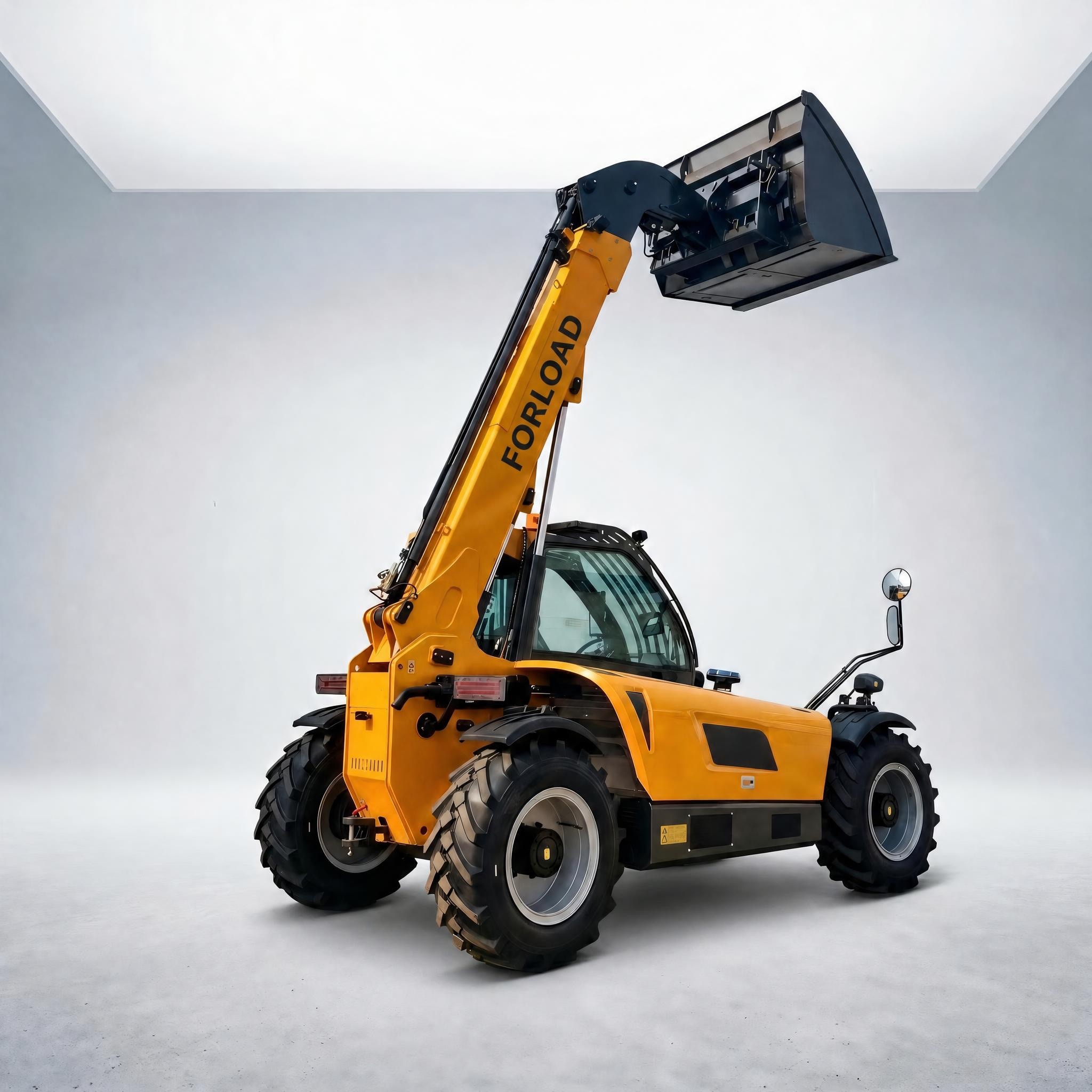

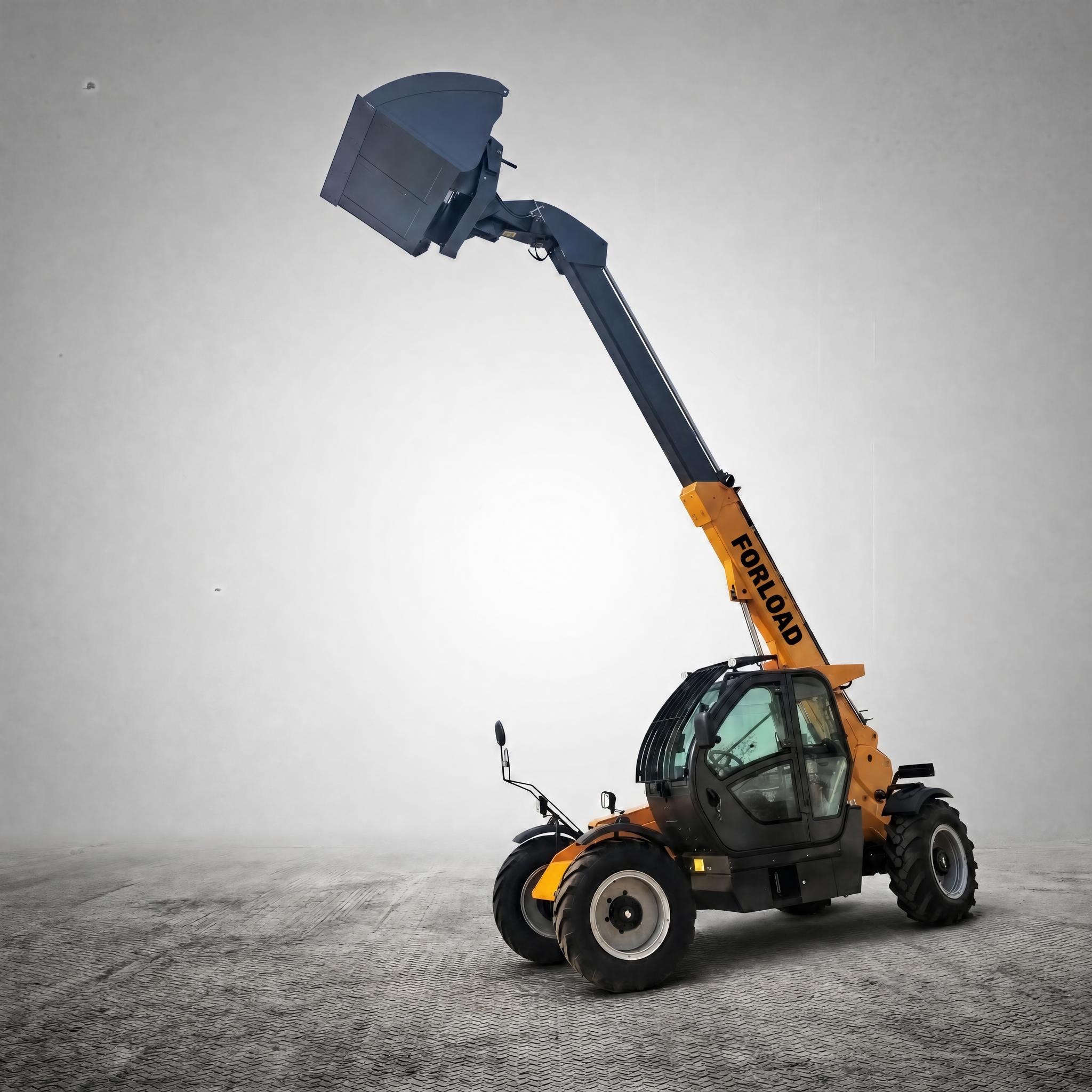

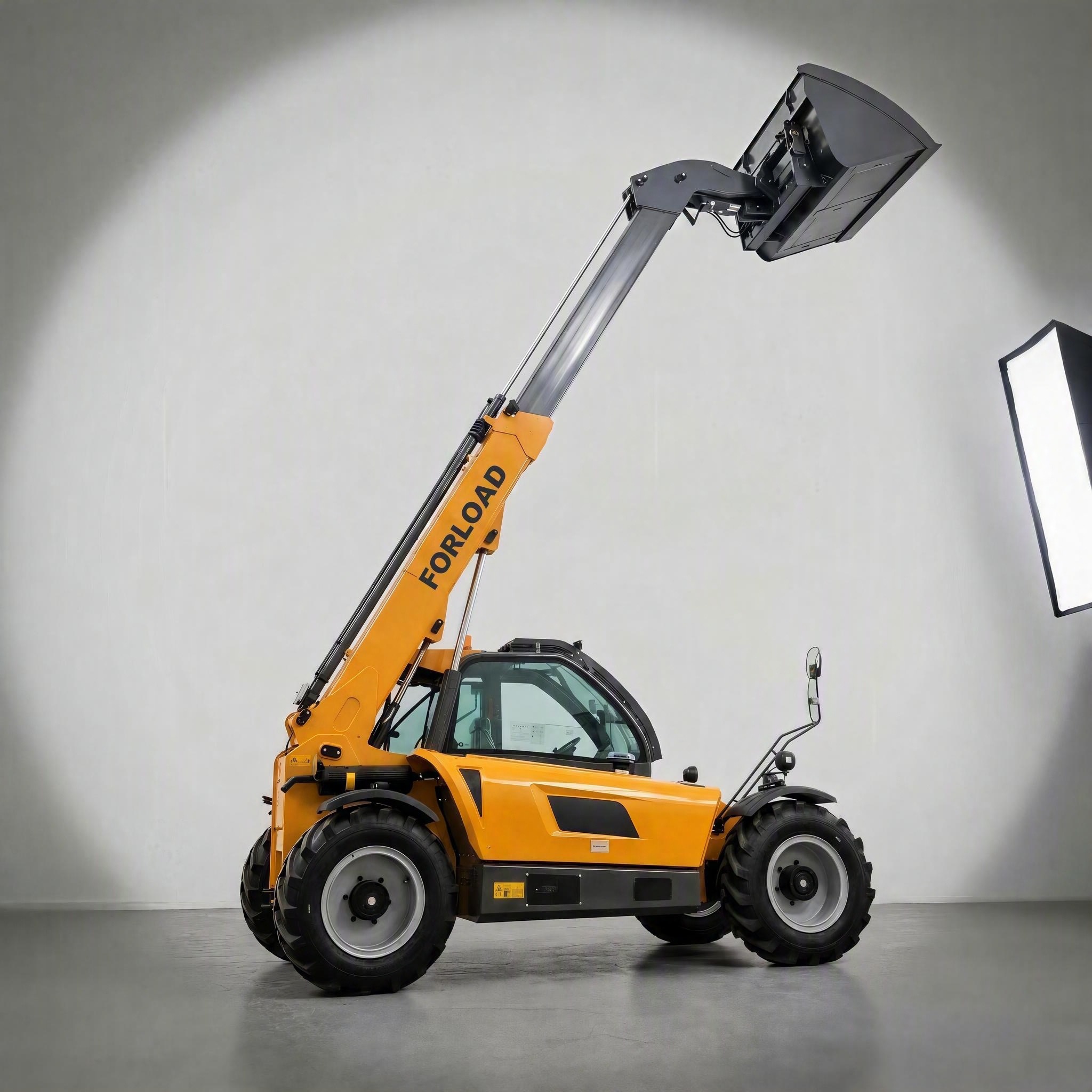

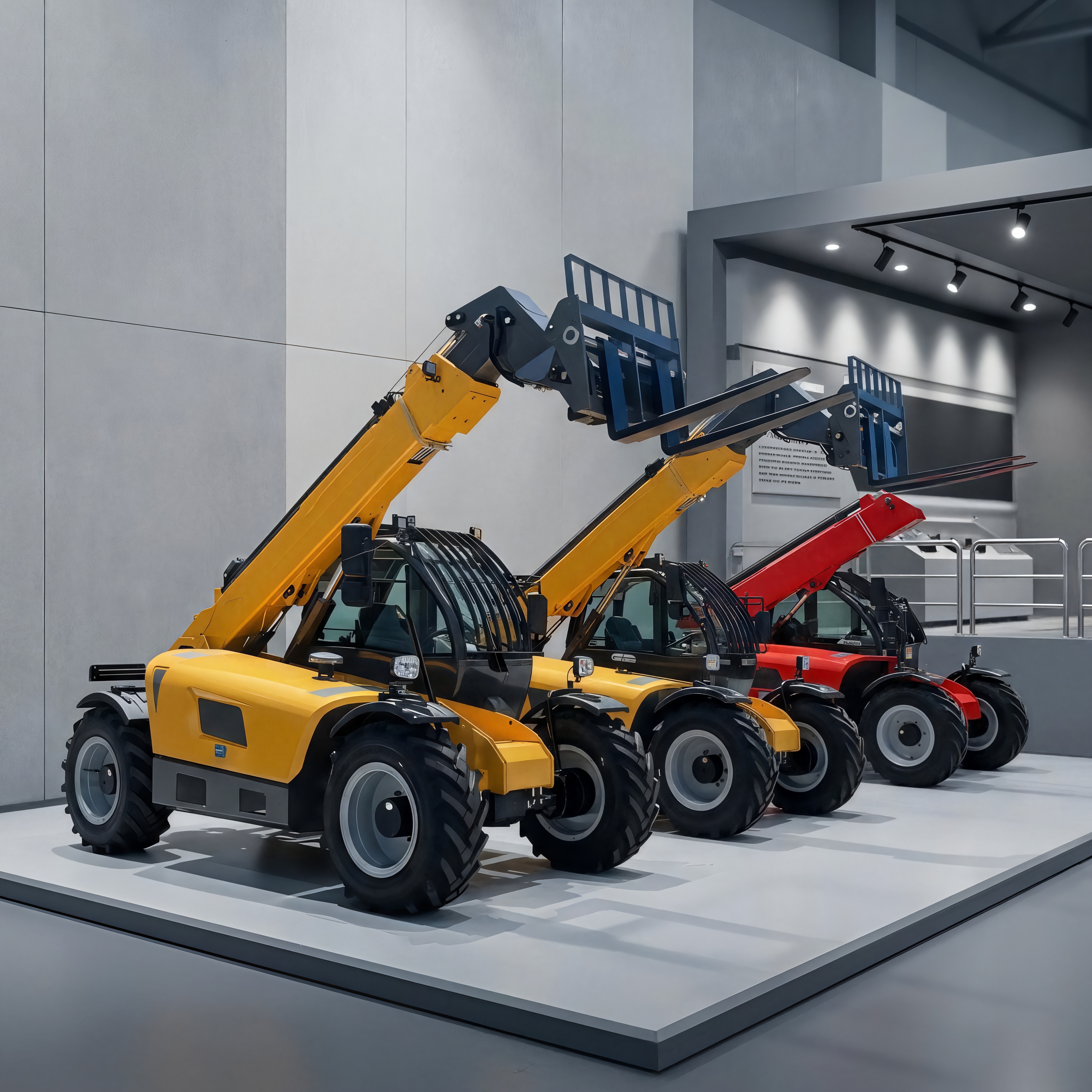

1-FORLOAD brand TH735 telehandler, also named telescopic forklift, has normal forklift function, but more performance function than normal forklift.
2-Two stages with 7000m lifting height and 3.5ton lifting capacity to meet aerial places work usage.
3-Different attachments could equip on this telescopic forklift to meet different work usage.
4-More brand engine for optional: CUMMINS, YANMAR, KOHLER Euro3/Euro4/Euro5, EPA3/EPA4.
Main parameters:
Capacities | Metic |
Max. capacity | 3500kg |
Max. lifting height | 7.0m |
Max. outreach | 3.2m |
Weight and dimensions |
Overall length to carriage | 4.65m |
Length to face of forks | 5.87m |
Overall width | 2.20m |
Overall height | 2.55m |
Wheelbase | 3.15m |
Ground clearance | 0.35m |
Overall cab width | 0.84m |
External turning radius (over tire) | 4.25m |
Overall weight | 7600kg |
Tire size | 16/70-20 |
Forks length/width/section | 1220mmx125mm/50mm |
Engine |
Engine brand | YUNNEI |
Engine model | YN38GBZ |
Number of cylinders | 4 |
Rated power | 76kw/103hp |
Transmission |
Transmission type | Hydraulic torque converter |
Number of gears(forward/reverse) | 4/4 |
Max.travel speed | 35km/h |
Parking brake | Automatic air cut brake |
Service brake | Oil-immersed multi-discs braking on front & rear axles |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
