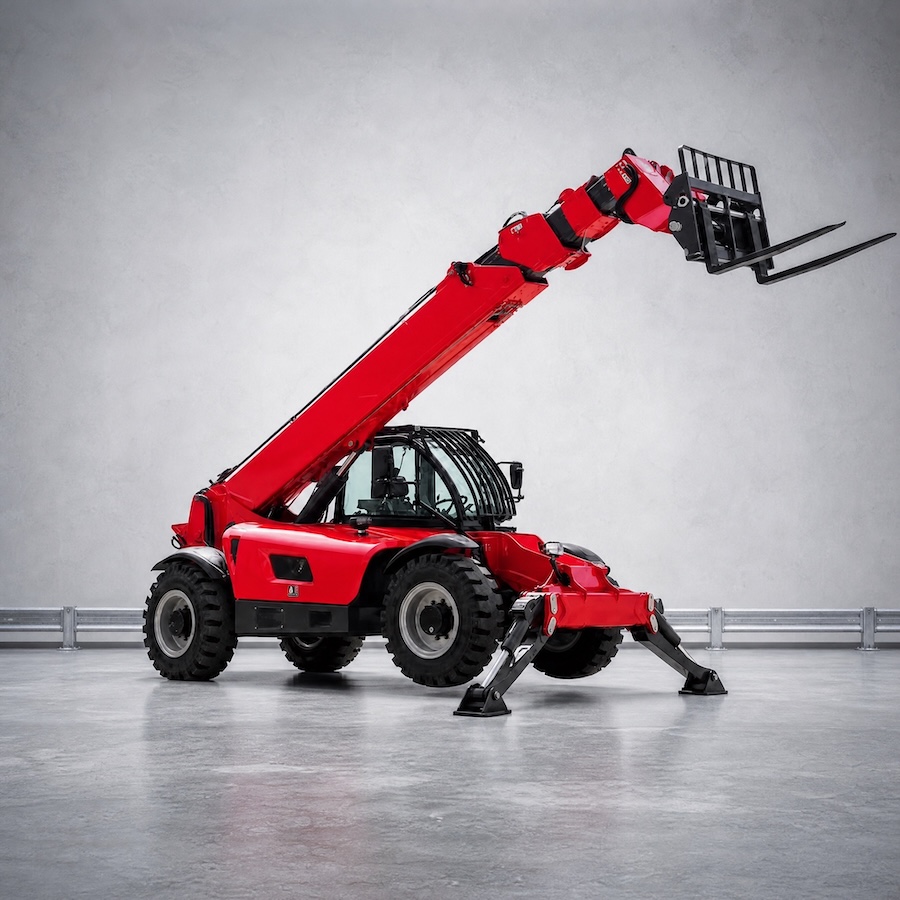

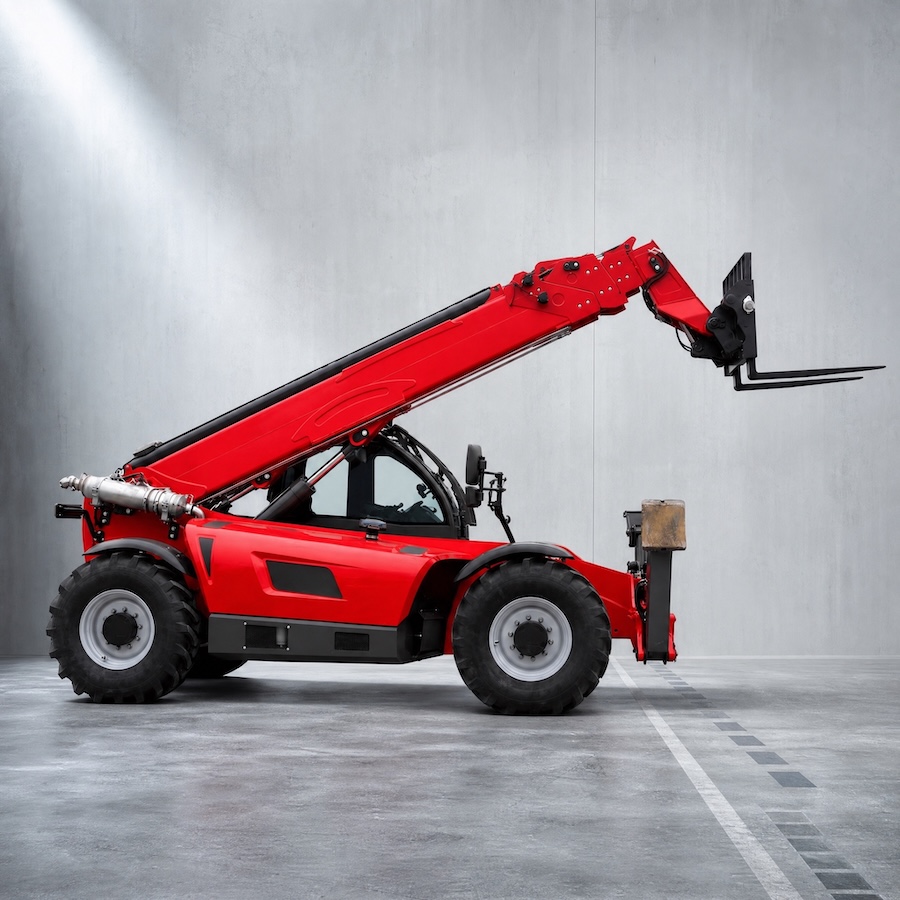

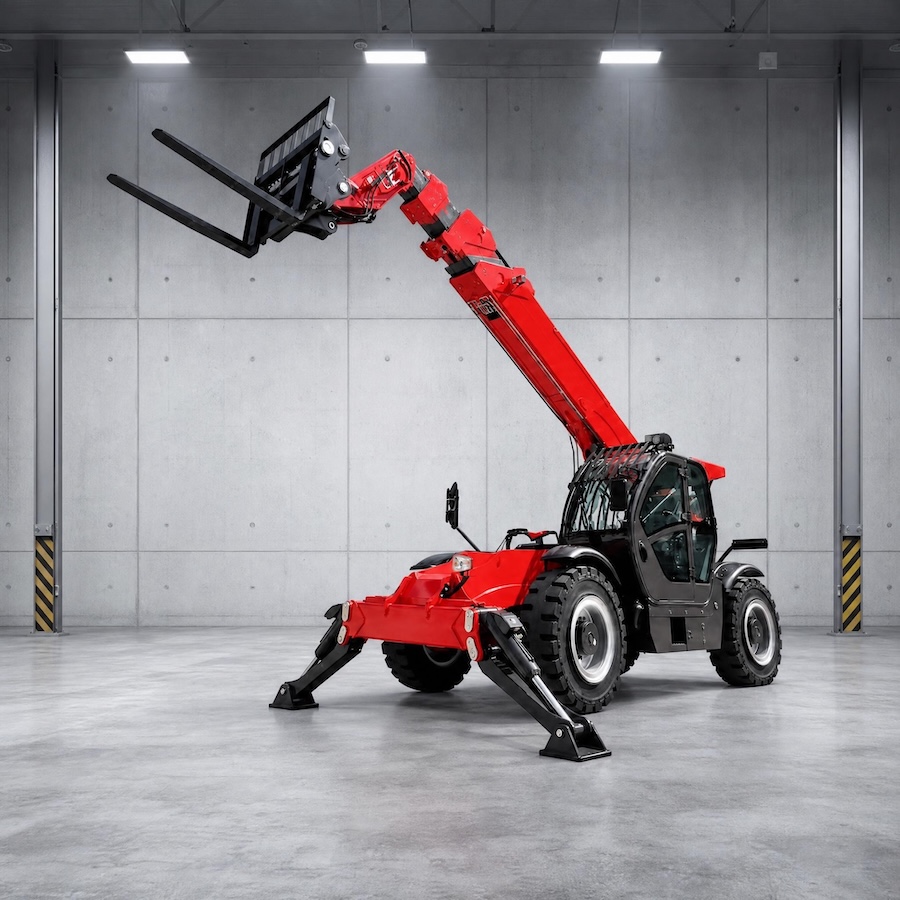

1-FORLOAD brand TH1840 telehandler, also named telescopic forklift, has normal forklift function, but more performance function than normal forklift.
2-Four stages with 17.6m lifting height and 4.0tons lifting capacity to meet aerial places work usage.

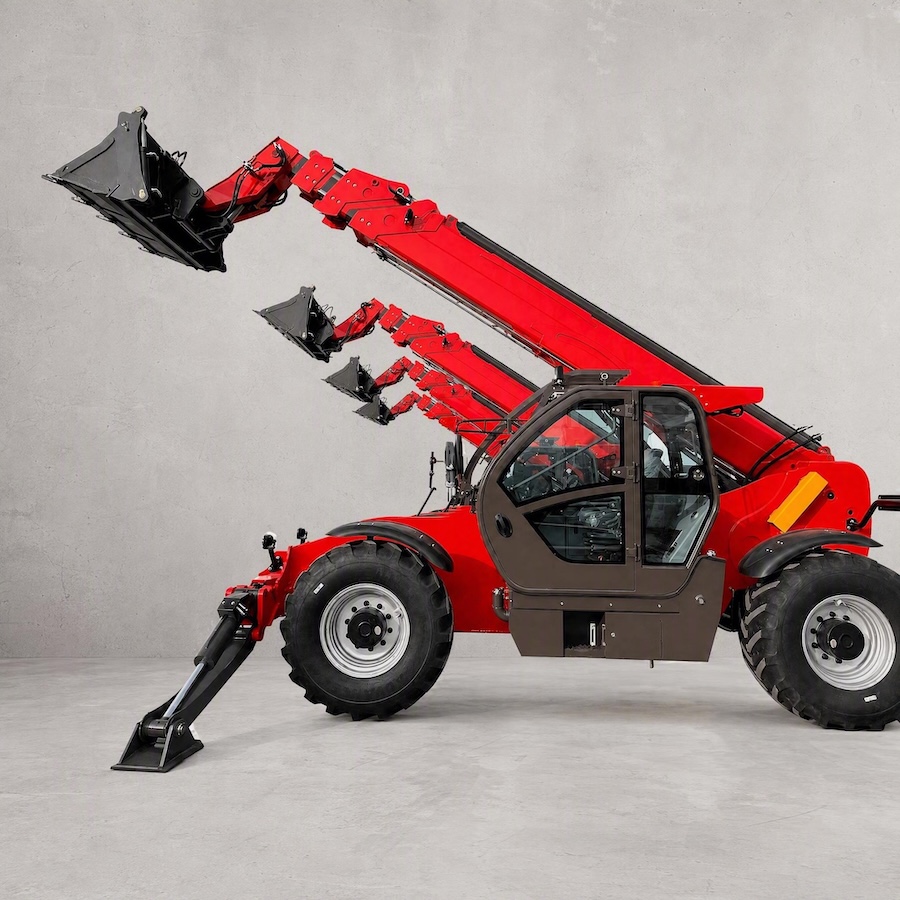

3-Different attachments could equip on this telescopic forklift to meet different work usage.
4-More brand engine for optional: CUMMINS, YANMAR, KOHLER Euro3/Euro4/Euro5, EPA3/EPA4.
5-Danfoss brand hydrostatic transmission system, Wet type brake axle for optional to use on it.
Main parameters:
Capacities | Metic |
Max. capacity | 4000kg |
Max. lifting height | 17.6m |
Max. outreach | 12.8m |
Weight and dimensions |
Overall length to carriage | 6.4m |
Length to face of forks | 7.62m |
Overall width | 2.42m |
Overall height | 2.55m |
Wheelbase | 3.15m |
Ground clearance | 0.38m |
Overall weight | 13600kg |
Tires type | Tubeless |
Standard tires | 440/80R24 |
Forks length/width/section | 1220mmx125mm/50mm |
Performances |
Lifting | 16s |
Lowering | 12s |
Extension | 16s |
Retraction | 13s |
Upward tilt | 4s |
Downdip | 4s |
Engine |
Engine brand | YUCHAI |
Engine model | YCD4J22T-115 |
Number of cylinders | 4 |
Rated power | 85KW |
Transmission |
Transmission type | Hydraulic torque converter |
Number of gears(forward/reverse) | 4/4 |
Max.travel speed | 30km/h |
Parking brake | Automatic air cut brake |
Service brake | Oil-immersed multi-discs braking on front & rear axles |
Hydraulics |
Hydraulic pump type | Gear pump |
Hydraulic flow/pressure | 167L/min-265bar |
Tank capacities |
Engine oil | 5.5L |
Hydraulic oil | 110L |
Fuel tank | 100L |
Miscellaneous |
Steering wheels(front/rear) | 2/2 |
Drive wheels(front/rear) | 2/2 |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
