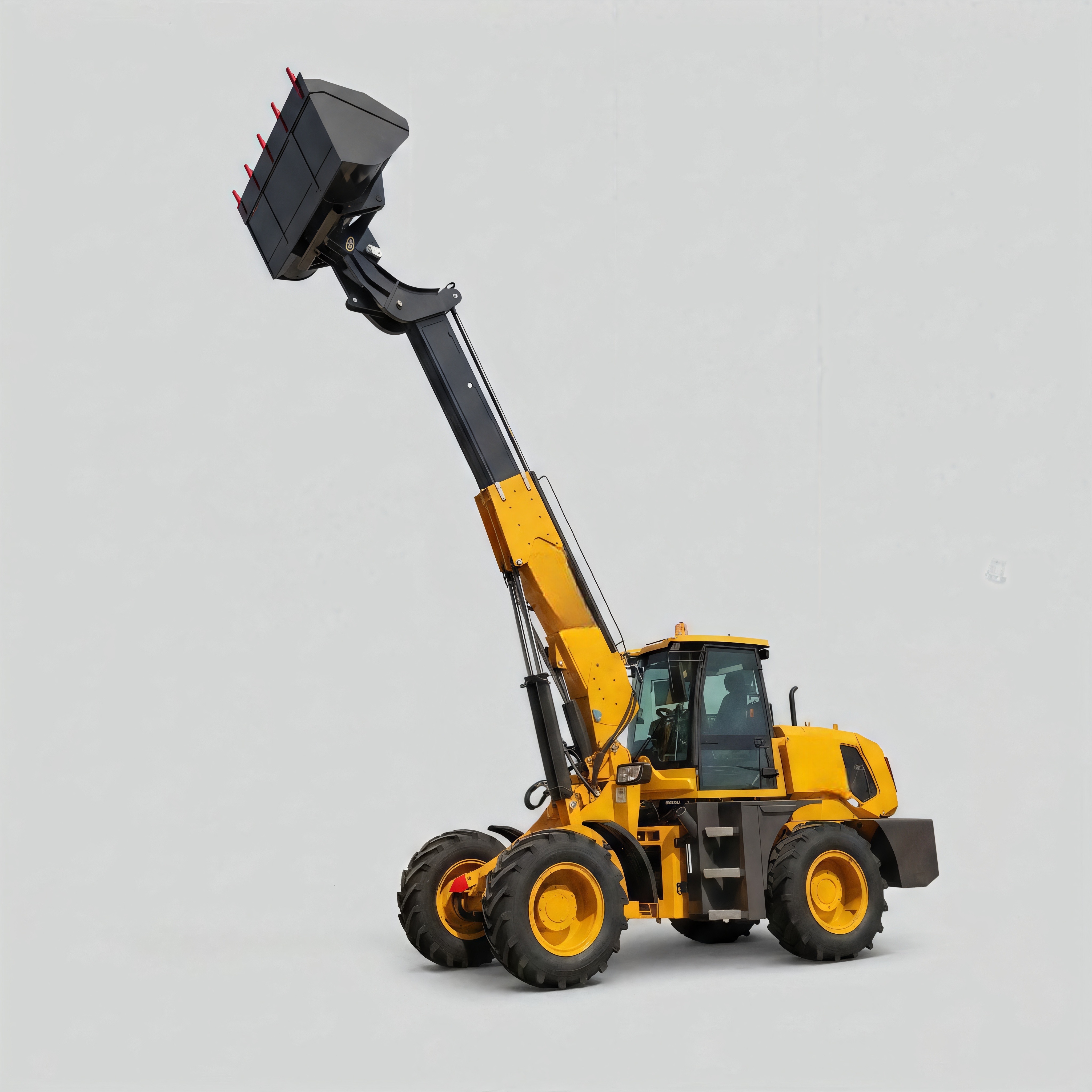

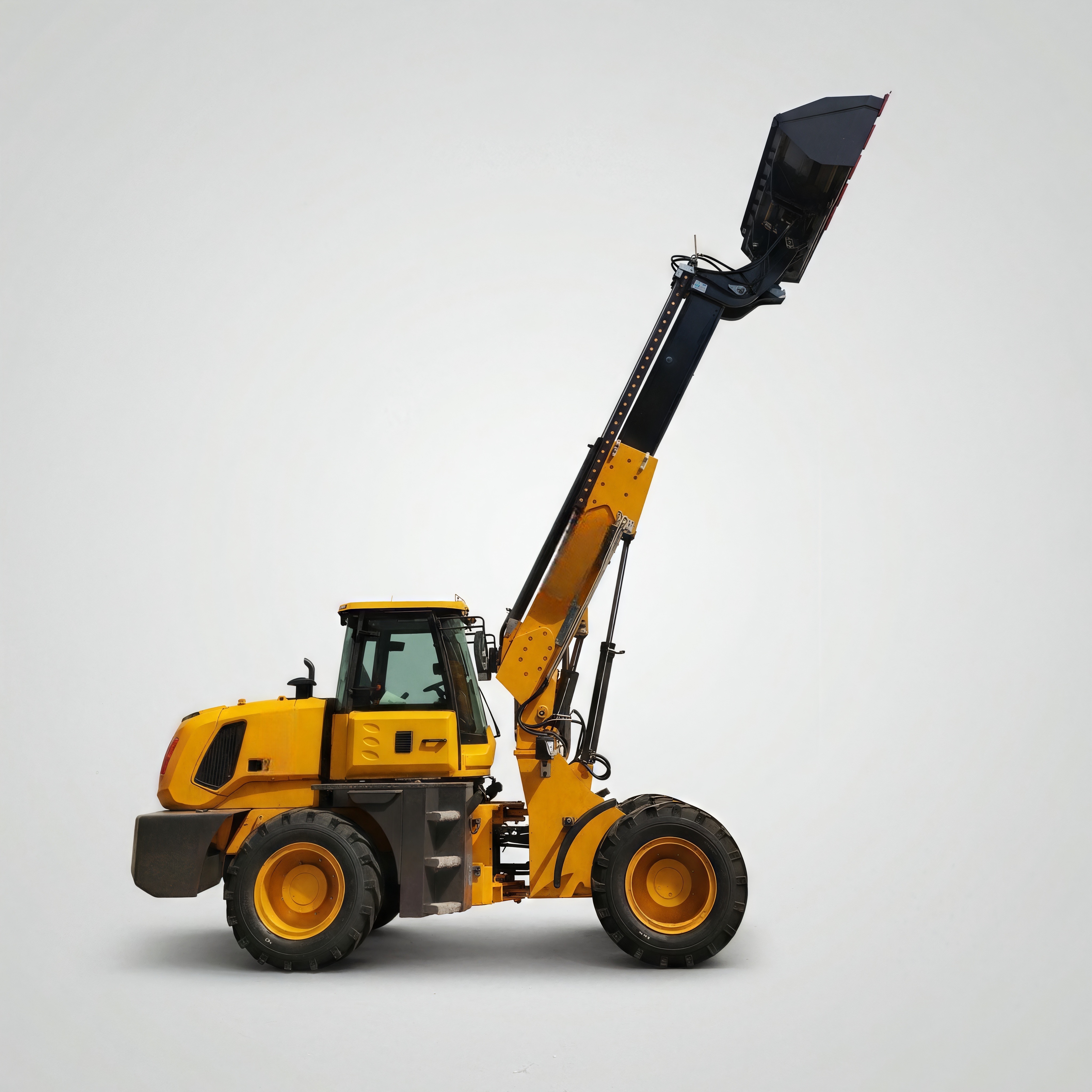

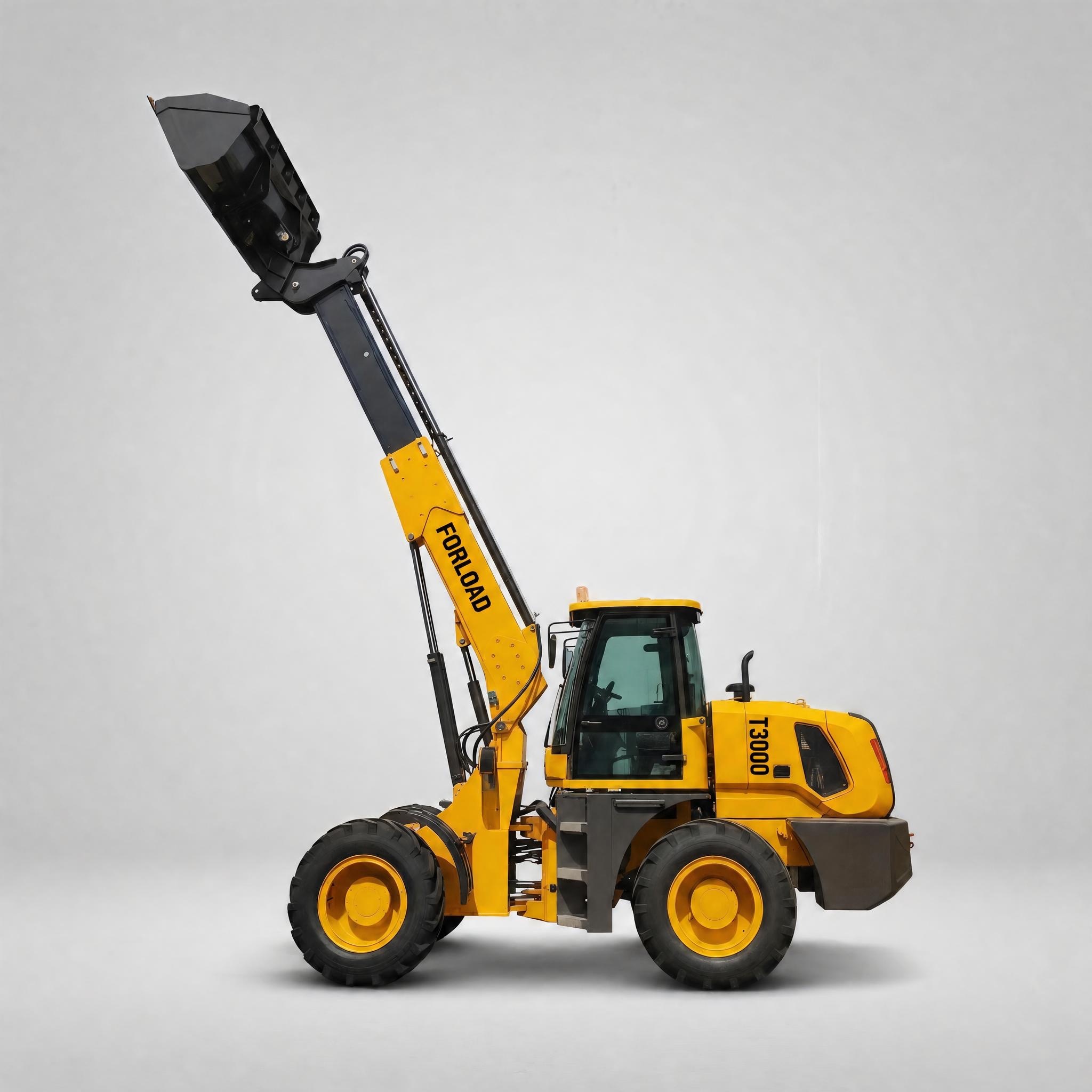

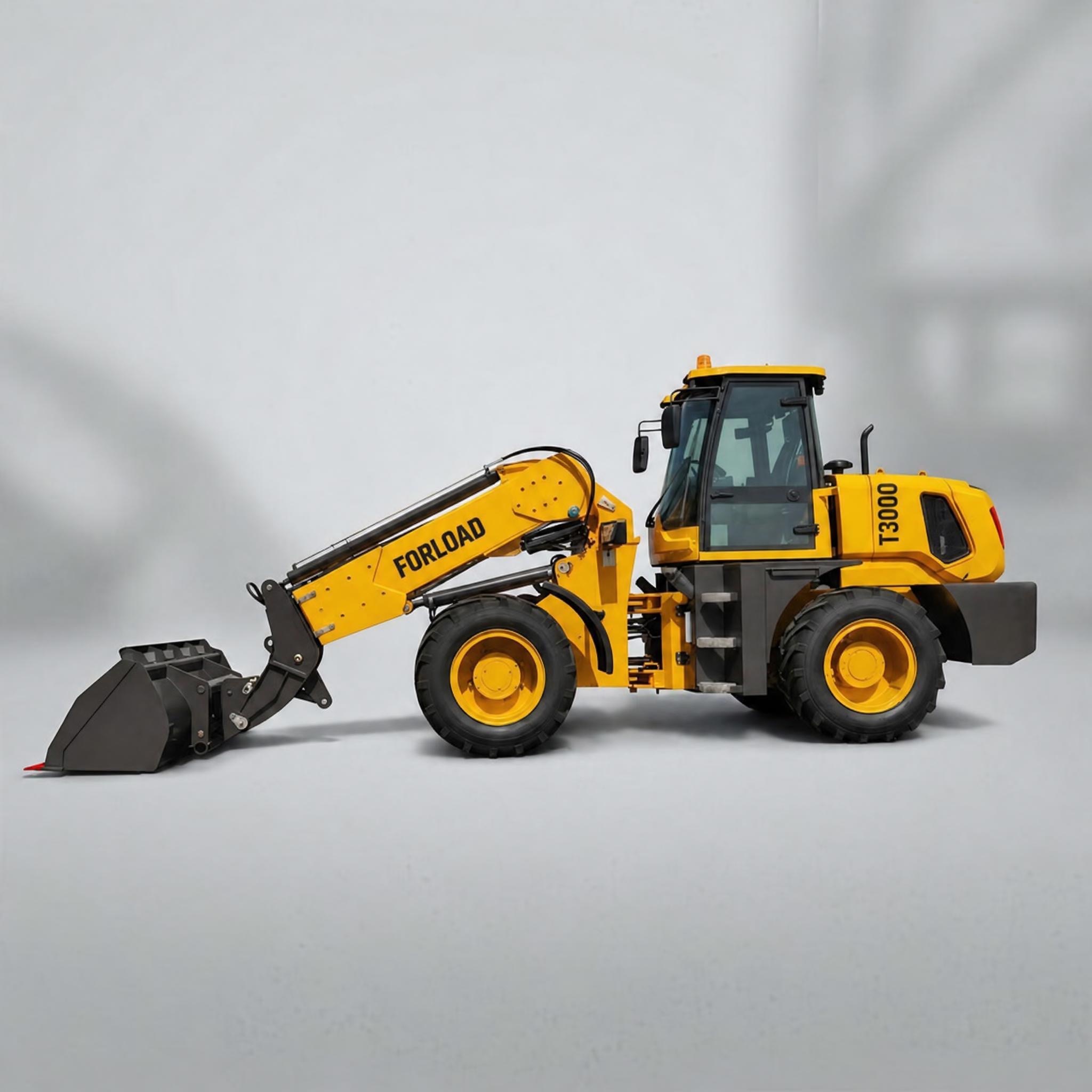

T3000 telescopic wheel loader, is one loading capacity 3tons multi-function front end wheel loader.
It equips with YUCHAI 85KW engine, four-way multi valve and hydraulic joystick control.
Luxury cabin with air conditioner, heater, suspension seat and big screen rearview camera.
Front end with quick hitch, could use different attachments to meet various jobsite request, including grain bucket, pallet forks, pitch forks, grass grab, wood grab, hook, working platform, snow blower, mixer bucket, sweeper etc.
Main parameters:
1.0 Engine |
(1) Brand/Model | YUCHAI YCD4J22T-115 |
(2) Rated Power | 85KW |
2.0 Overall Dimensions |
(1) Overall Length | 7200mm |
(2) Overall Width | 2200mm |
(3) Overall Height | 3000mm |
(4) Bucket Max. lift height | 5500mm |
(5) Max. unloading height | 5000mm |
3.0 Transmission System 315 Gearbox Hydraulic converters + Drive shaft +Hub reduction axle |
4.0 Bucket |
(1) Capacity | 1.5m³ |
(2) Width | 2200mm |
(3) Type | Heavy-duty bolt on teeth |
(4) Max. Load capacity | 3000kg including bucket or attachment |
5.0 Tire |
(1) Size | 16/70-24 Herringbone Tire |
6.0 Operation Weight | 7200KG |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
