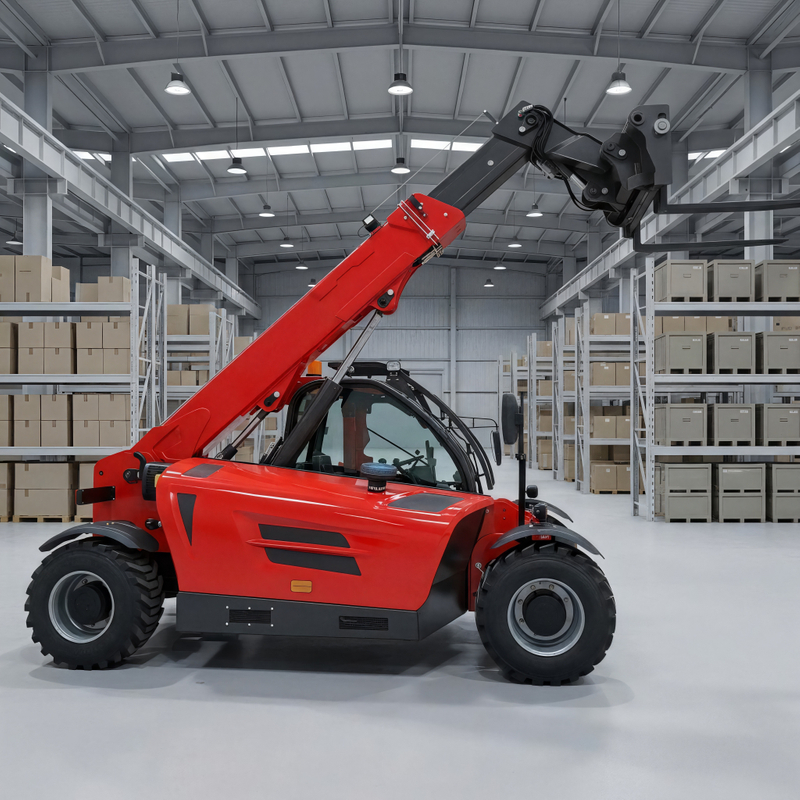

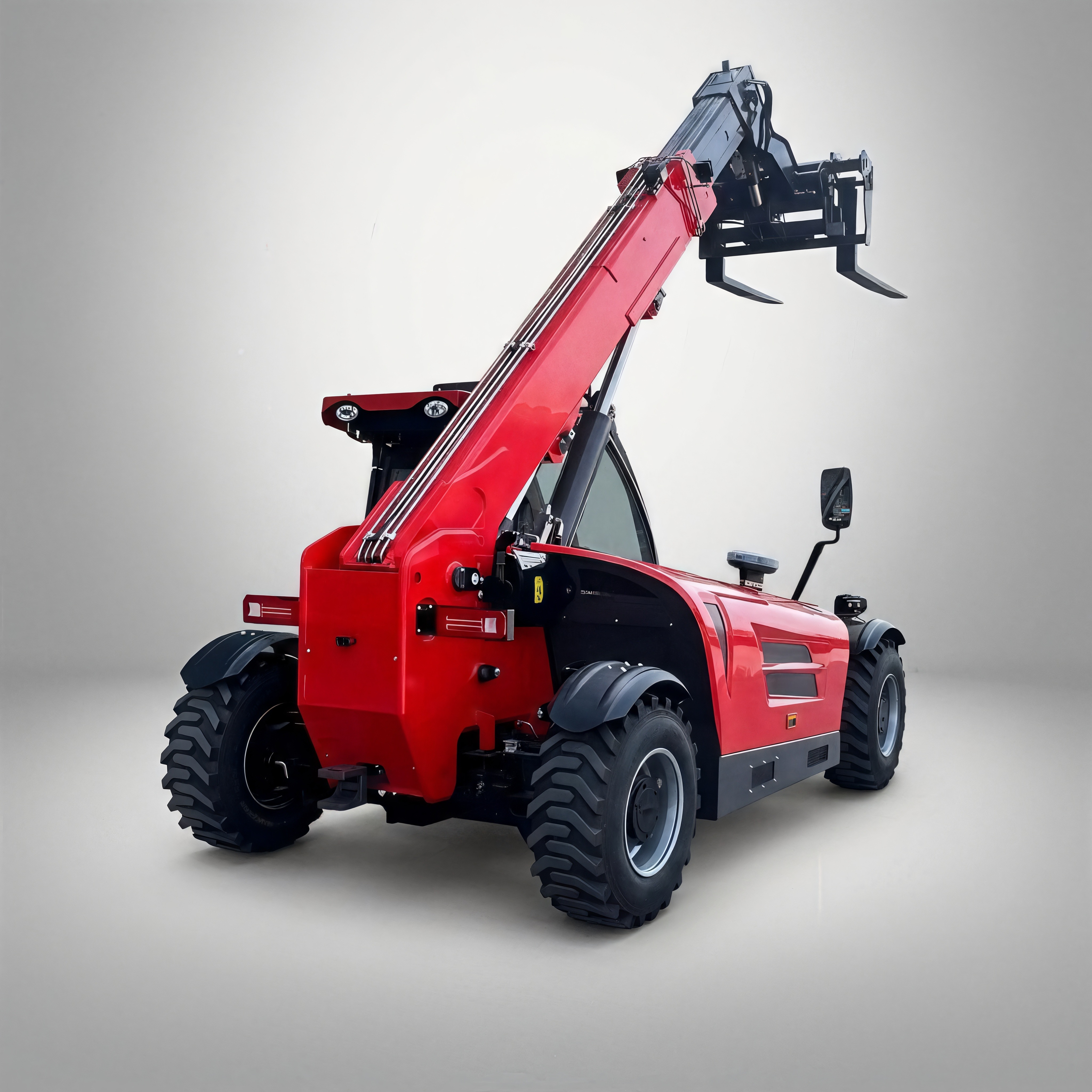

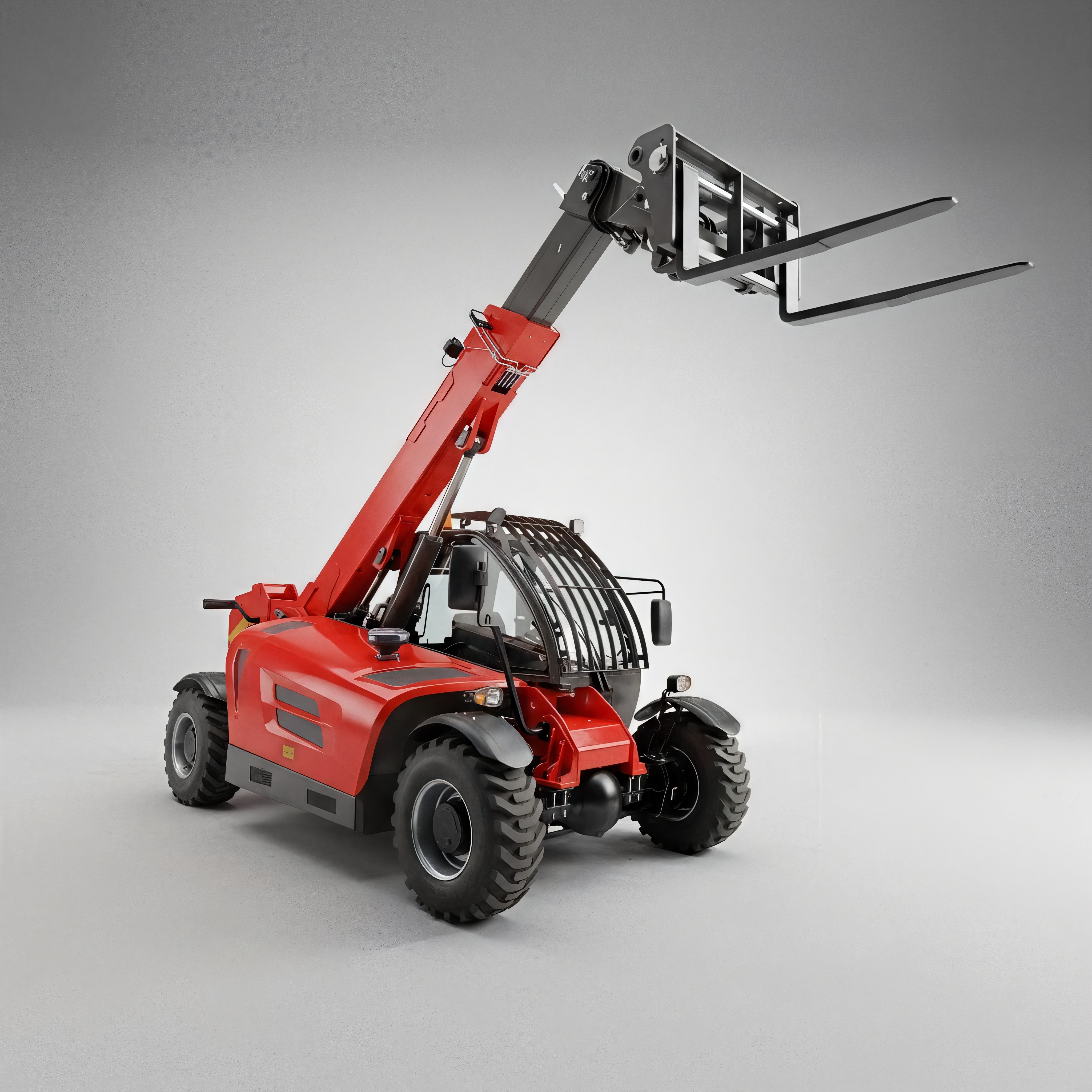

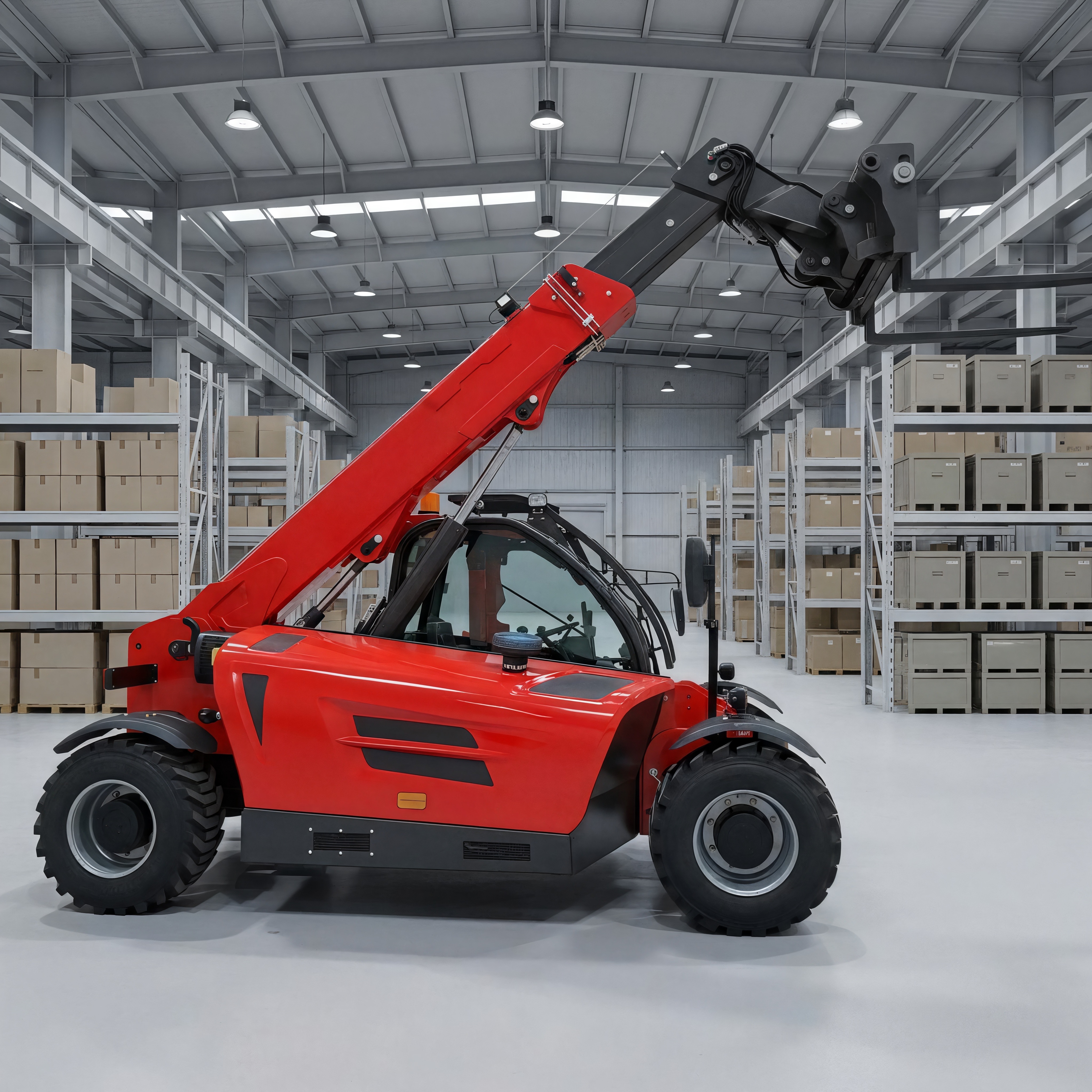

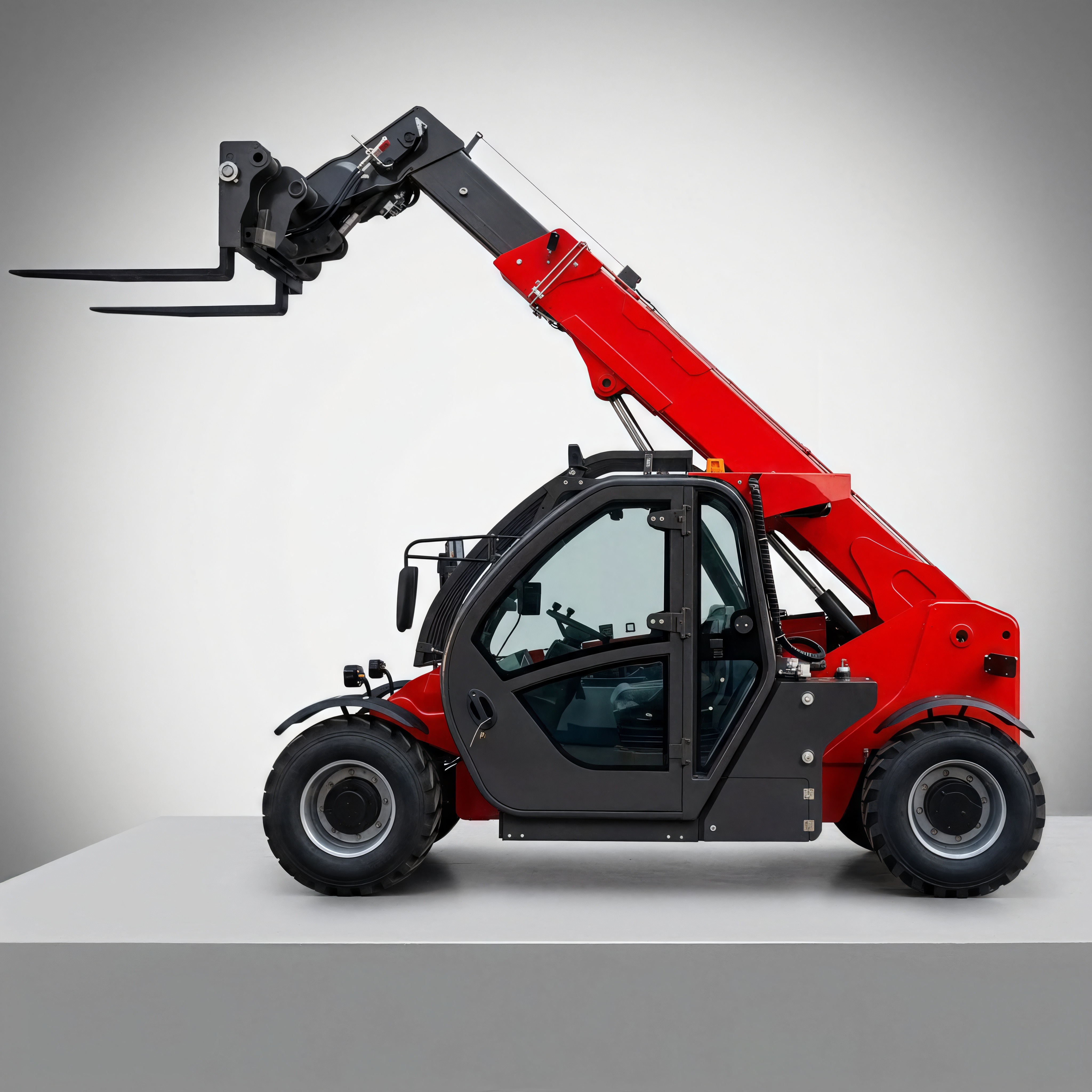

FORLOAD brand TH625 telehandler forklift, with two-section telescopic boom, hydraulically piloted operation, deluxe cab with LED lights/window breaker/fire extinguisher/rear sliding window/10-inch driving and reversing camera/rear and right front cameras, high-definition color multimedia display (with USB interface, Bluetooth function, radio), reversing voice alarm, emergency parking system, tow hook.
With hydraulic quick change. Electric travel control, automatic fork leveling, electric telescopic fork extension, 12-16.5 vacuum tires.
Single-axle air brake axle with a load capacity of 8 tons, hydraulic braking system. Specialized forklift integrated high and low speed gearbox (4F/4R semi-electric control), four-wheel drive, three steering modes: front wheel steering, four-wheel steering, and crab steering, plate fin radiator, front and rear adjustable large-shell instrument and steering wheel, adjustable deluxe seat, 355 manganese plate frame, telescopic boom made of BS700 special steel, 2.5-ton load capacity, 1220mm forks, 5.9-meter lifting height.
Main parameters:
Capacities | Metic |
Max. capacity | 2500kg |
Max. lifting height | 5.95m |
Max. outreach | 3.45m |
Weight and dimensions |
Length | 3.923m |
Overall width | 1.8m |
Overall height | 2.14m |
Wheelbase | 2.3m |
Ground clearance | 0.35m |
Overall cab width | 0.86m |
Tilt-up angle | 12° |
Tilt down angle | 117° |
Overall weight | 5100kg |
Tires type | Pneumatic |
Standard tires | 12-16.5 |
Forks length/width/section | 1220mmx125mm/45mm |
Engine |
Engine brand | YUNNEI |
Number of cylinders | 4 |
Rated power | 55kw |
Transmission |
Transmission type | Hydraulic torque converter |
Number of gears(forward/reverse) | 2/2 |
Max.travel speed | 35km/h |
Parking brake | Automatic air cut brake |
Service brake | Oil-immersed multi-discs braking on front & rear axles |
Hydraulics |
Hydraulic pump type | Gear pump |
Hydraulic flow/pressure | 100L/min |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
