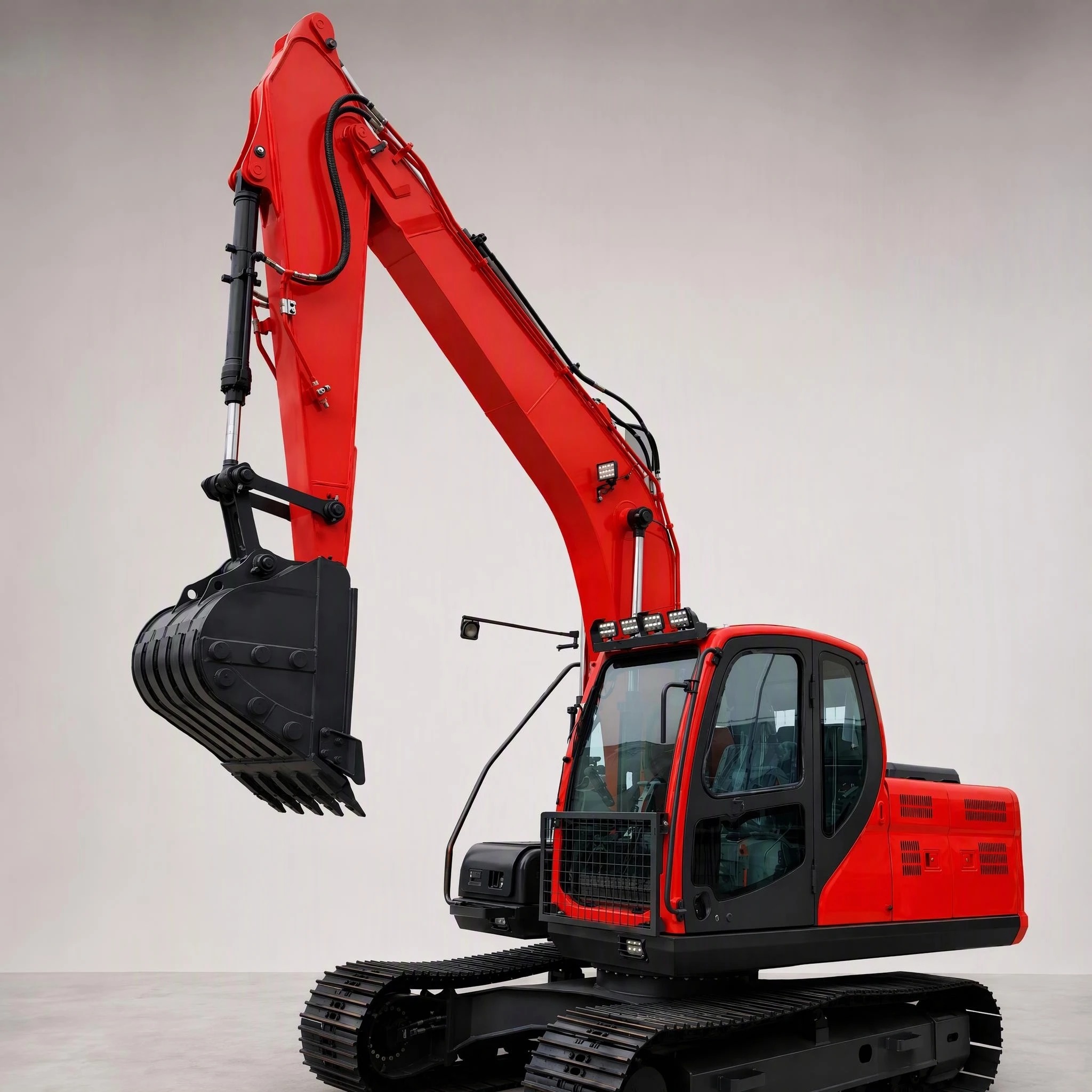

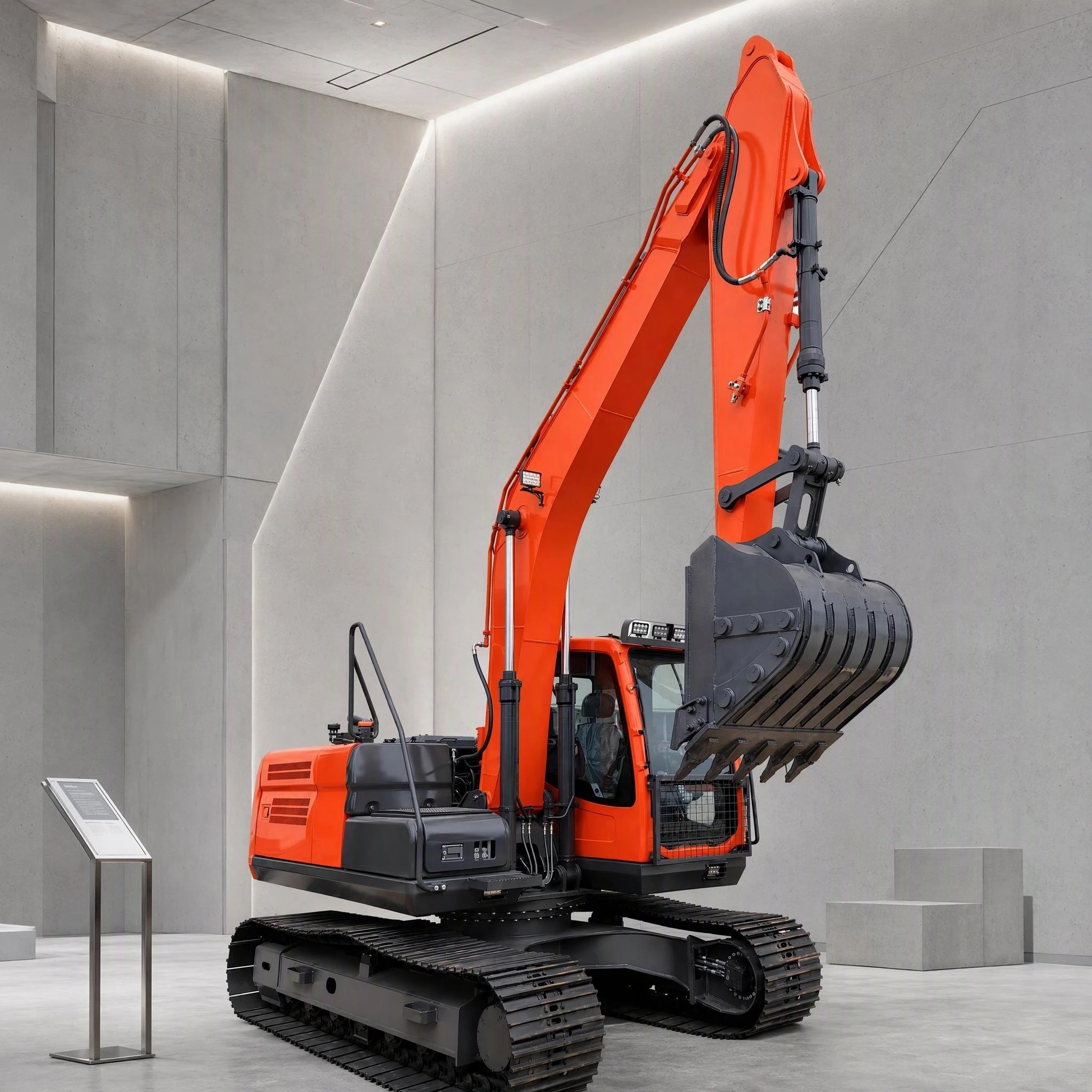

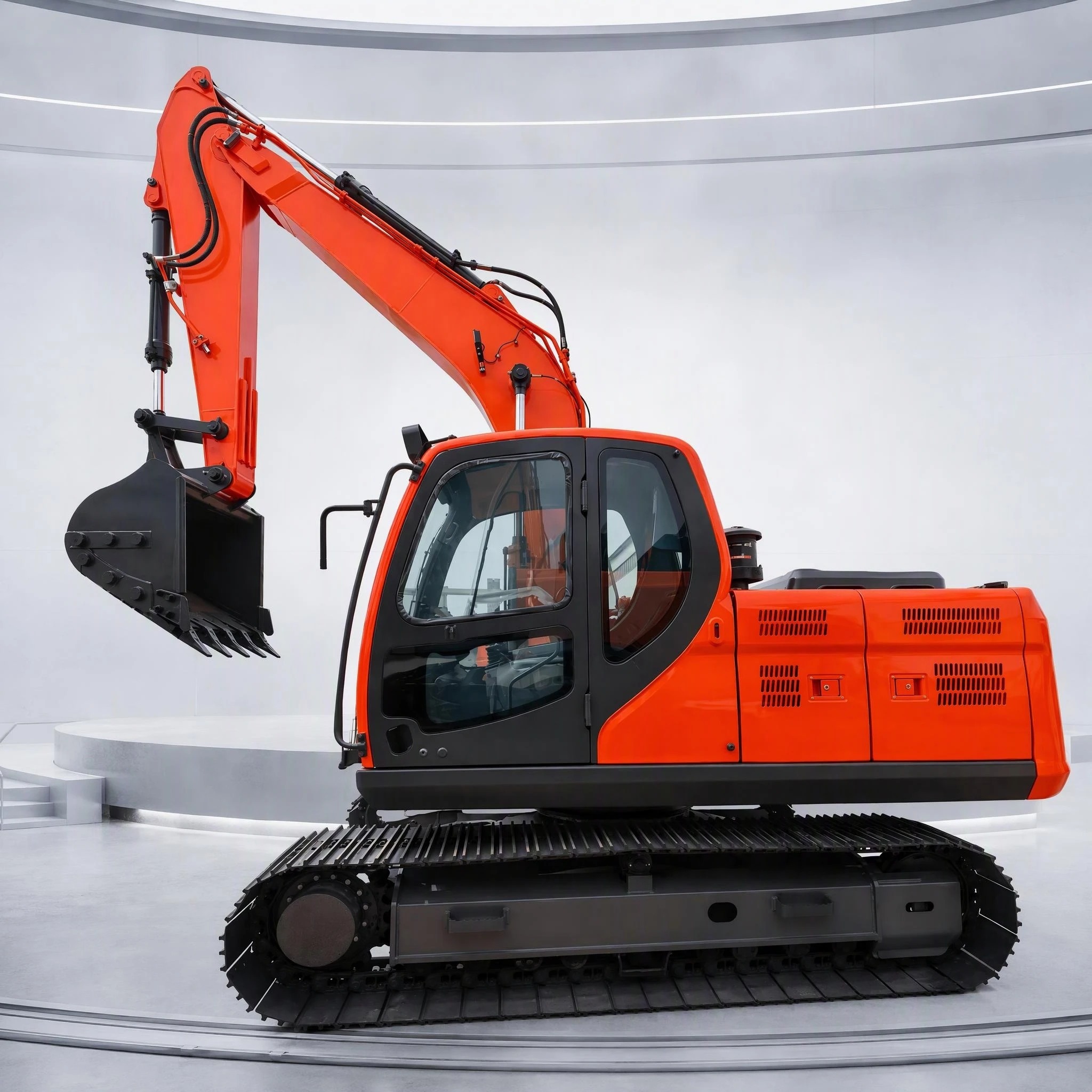

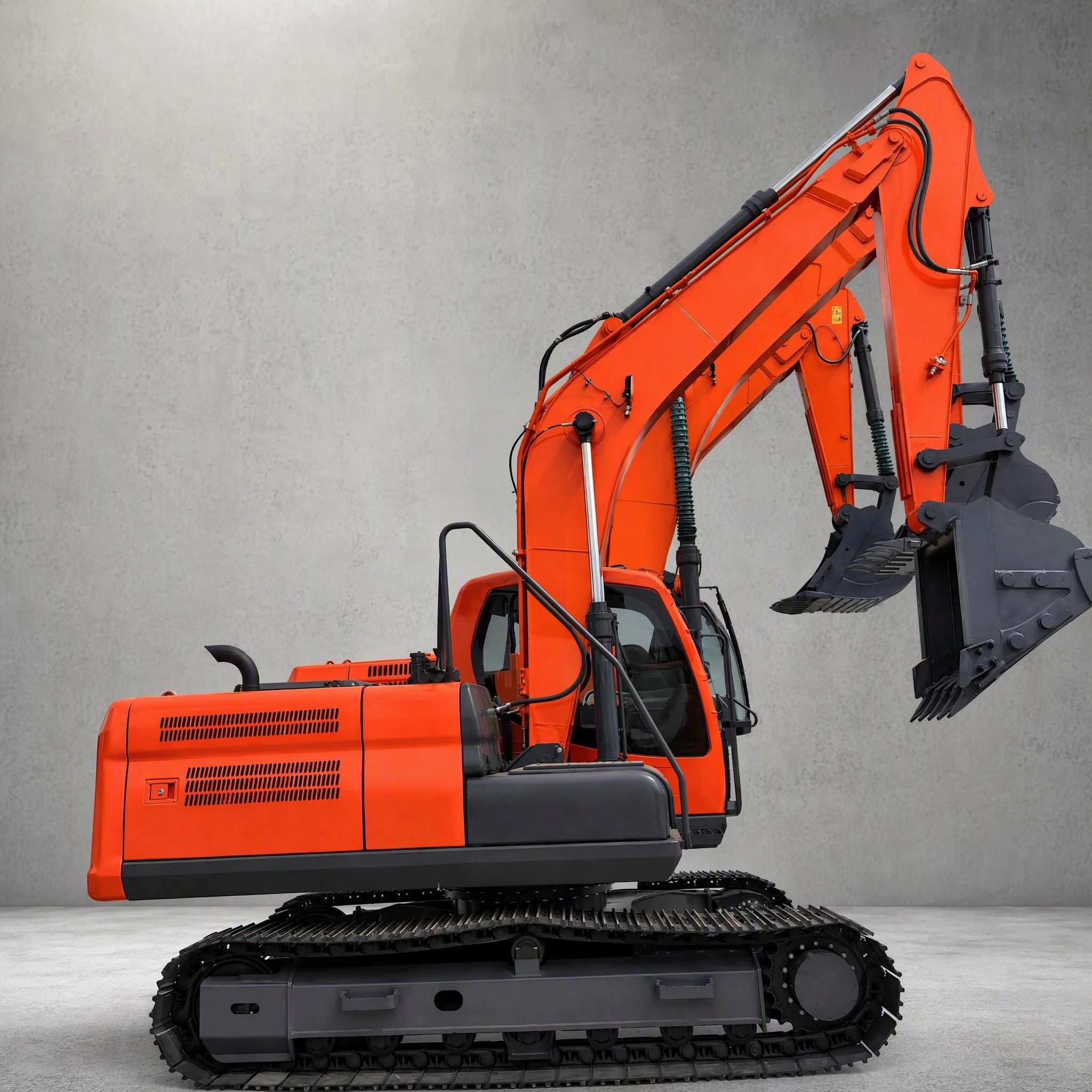

FORLOAD brand FL150PC-9 hydraulic crawler excavator, adopt DF CUMMINS QSB3.9 powerful engine, plus Kawasaki brand pump and valve, DOOSAN brand swing motor and imported hydraulic system, has excellent performance in construction projects.
Widely space luxury cabin with air conditioner and heater, smoothly operation joystick and big touch type screen.
Supply 60cm, 70cm and 80cm track shoes on this 15tons crawler excavator, meet different working area demand.
main parameters:
Model | FL150PC-9 |
Operation weight | 14500kgs |
Bucket capacity | 0.28~0.75m3 |
Engine |
Engine model | CUMMINS QSB3.9-C125-30 |
Engine power | 93kw |
Performance |
Bucket digging force | 81.3KN |
Bucket boom digging force | 62KN |
Boom length | 4600mm |
Arm length | 3000mm |
Hydraulic system |
Main pump type | KAWASAKI, variable displacement piston pump x2 |
Working hydraulic oil pressure | 32.5Mpa |
Swing hydraulic oil pressure | 26.5Mpa |
Walking hydraulic oil pressure | 32.5Mpa |
Main dimension |
Transport length | 7700mm |
Transport width | 2600mm |
Transport height | 2830mm |
Chain length | 3495mm |
Chain width | 600mm |
Chain total width | 2600mm |
Chain track distance | 2000mm |
Minimum ground clearance | 410mm |
Working range dimension |
Max. digging radius | 8740mm |
Max. digging depth | 6130mm |
Max. digging height | 8950mm |
Max. dump height | 6530mm |
The above information, specifications and images may differ from actual vehicle and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
