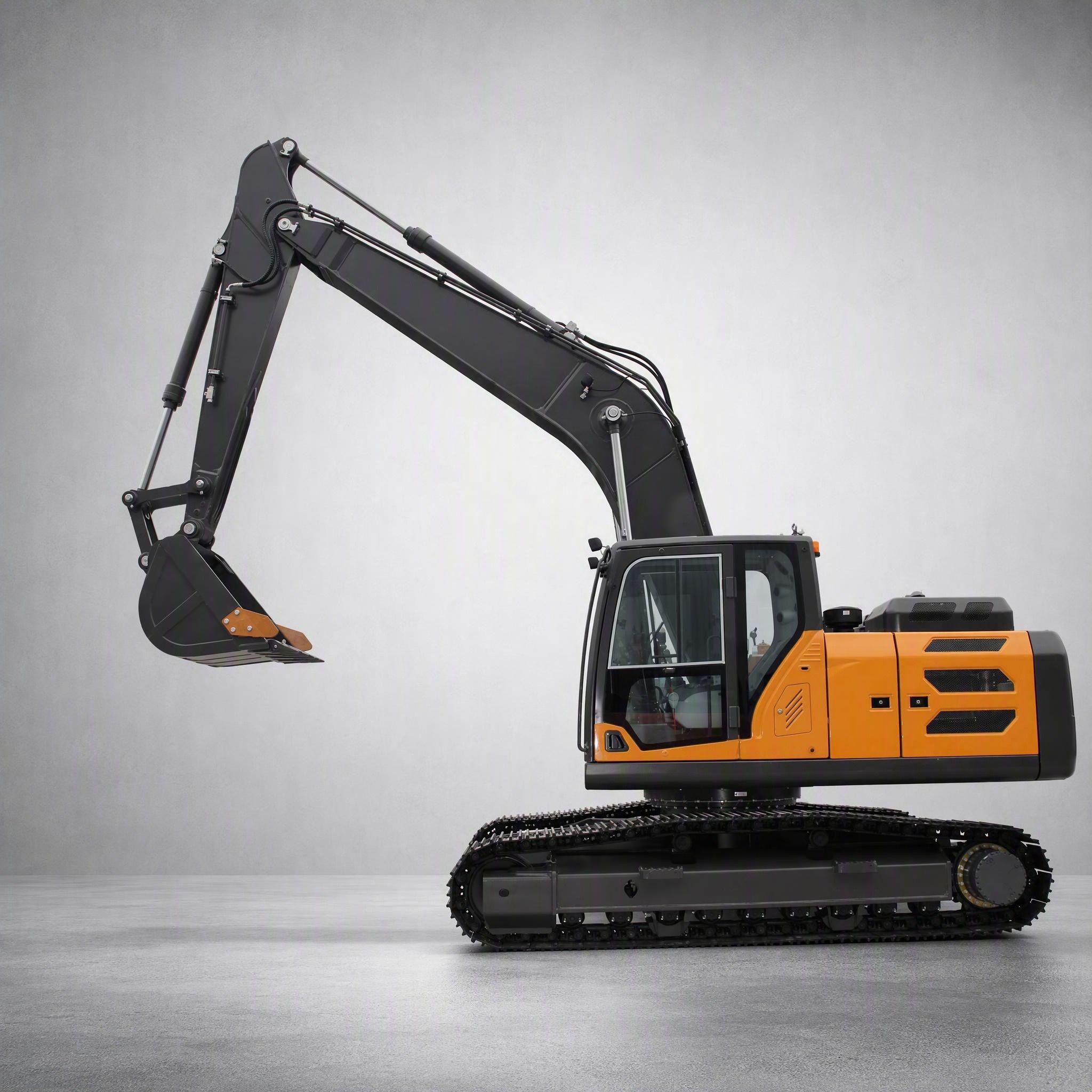

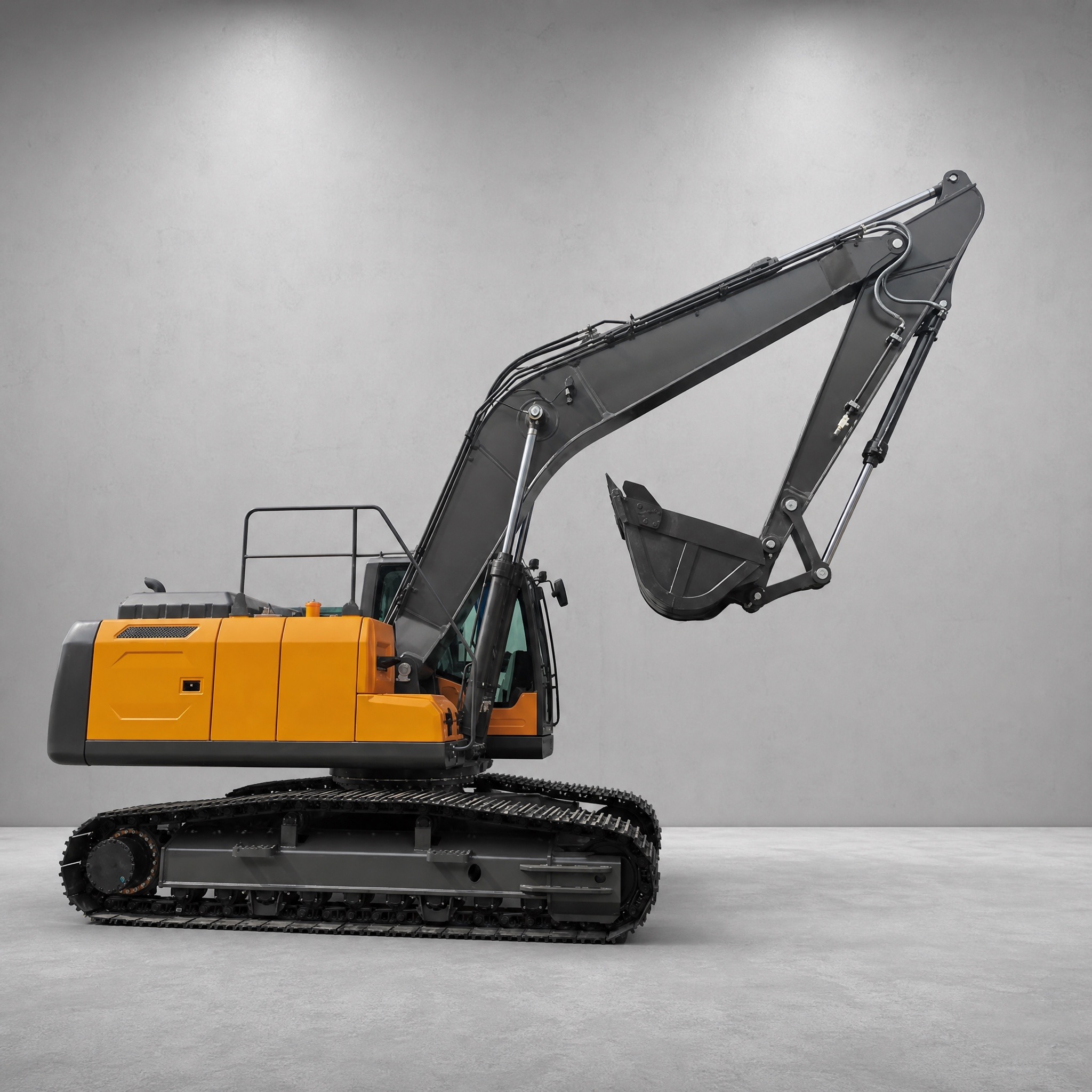

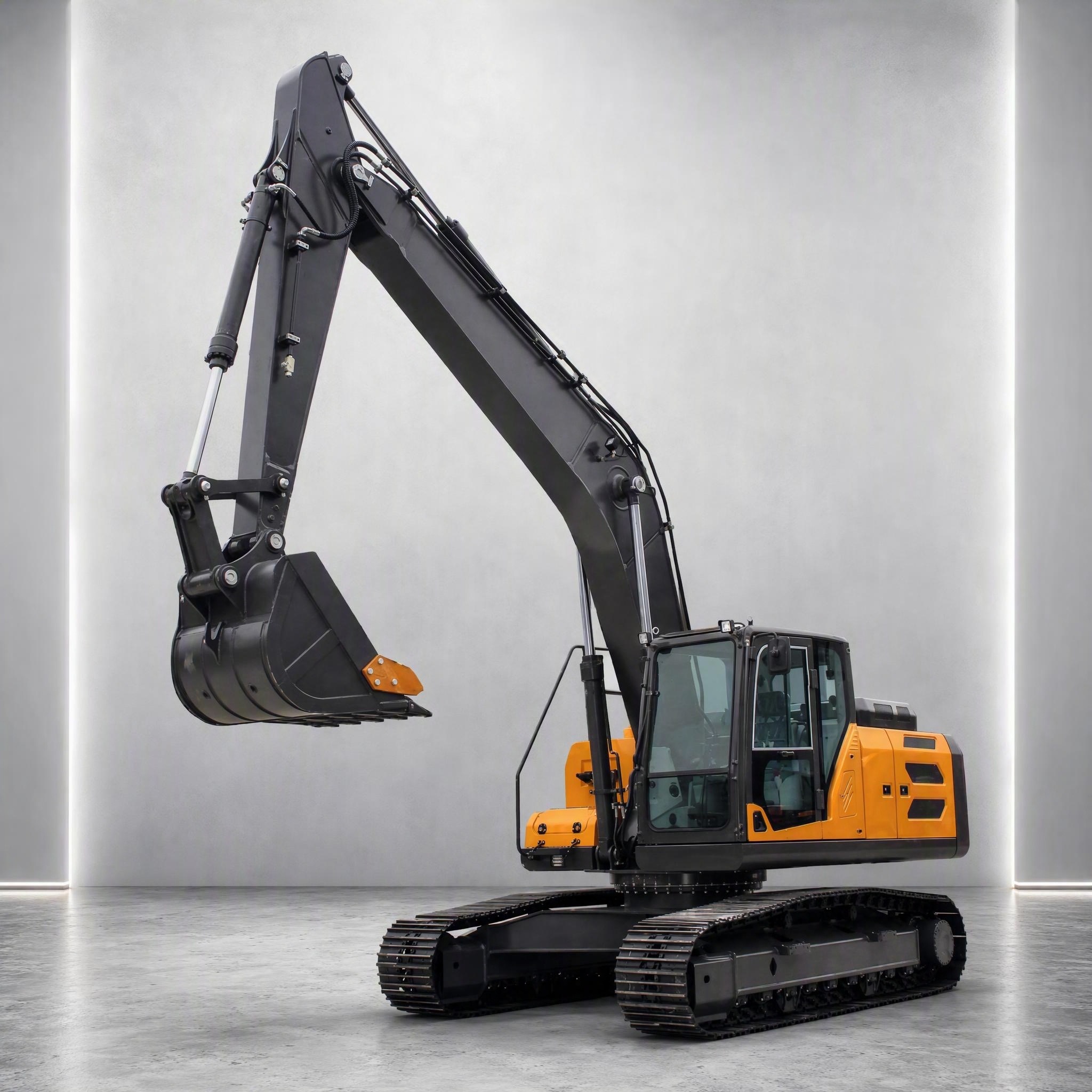

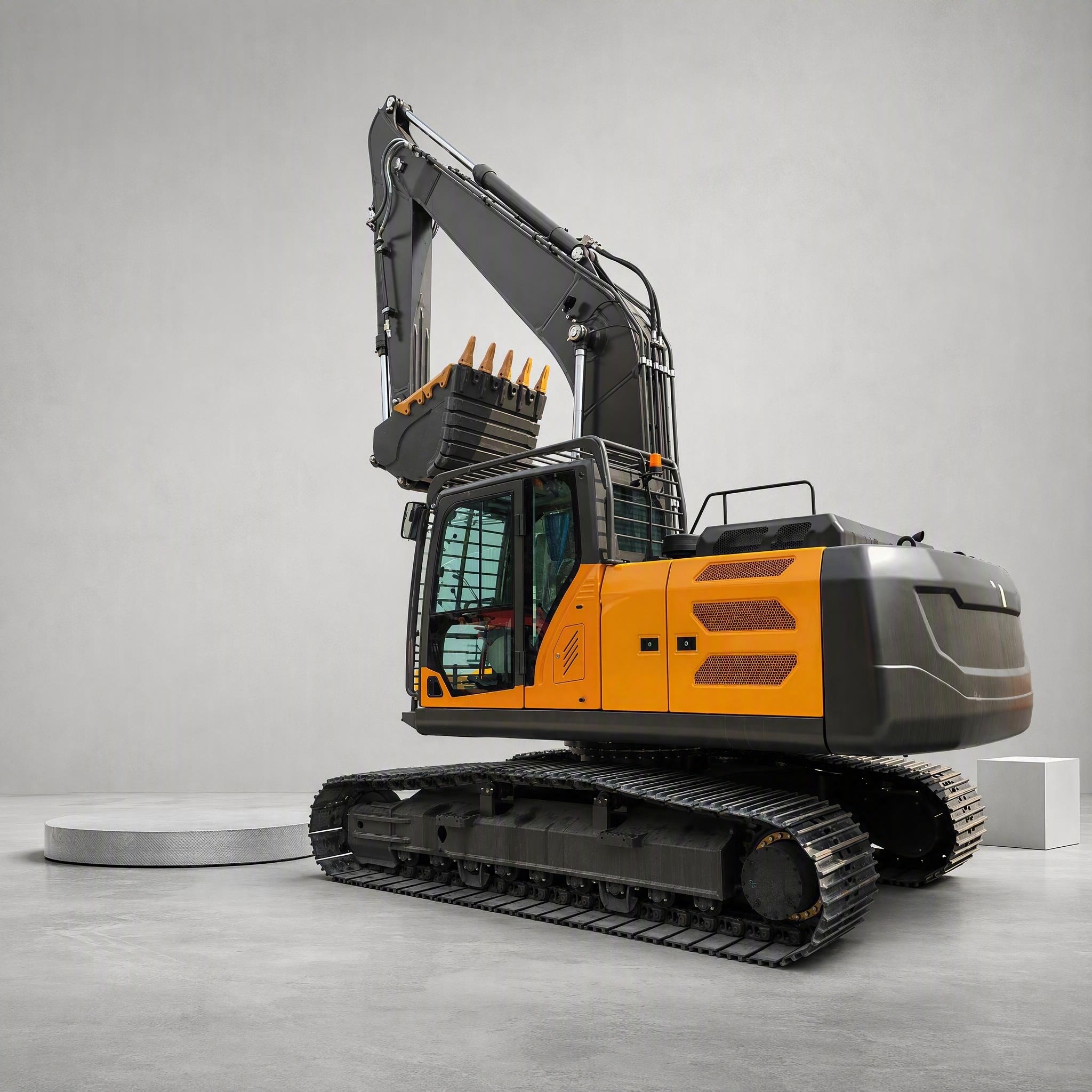

FORLOAD FL230LC crawler excavator is an economic middle type excavator, which matched CUMMINS engine with strong power and low noise and low consumption and environment protection.
▲Fitted imported brand main pump and valves etc.
▲ Adopted imported driving motor and swing motor.
▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency.
▲The professional structural parts and working mechanism, ensure the machine has reliability and durability .
▲The breaking pipeline equipped improve the working performance.
▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
▲ The humanized design, ensure the machine can comfortable operation and convenient maintenance.
Main parameters:
ENGINE |
Emission Standard | China Stage II |
Make | CUMMINS |
Model | 6BTAA5.9-C178-II |
Power /Rotation speed | 133kw(180HP)@2000rpm |
Number of cylinder | 6 |
TRACK SYSTEM |
Maximum Travel speed(high/low) | 4.3/3.3km/h |
Width of track shoe | 600mm |
Number of upper roller per side | 2 |
Number of bottom roller per side | 9 |
PERFORMANCE PARAMETER |
Rock Bucket capacity | 1.1m³ |
Swing speed | 12rpm |
Maximum Grade ability | 30° |
Maximum Bucket digging force | 150KN |
Maximum Arm digging force | 110KN |
Hydraulic system pressure | 34.3Mpa |
Ground pressure | 46kPa |
Machine weight | 22500kg |
Operation weight | 23500kg |
Fuel tank | 360L |
Hydraulic oil tank | 220L |
Boom length | 5700mm |
Arm length | 3800mm |
MACHINE SIZE |
Overall dimension (L*W*H) | 9600mm*2990mm*3000mm |
Height of cabin | 3000mm |
Track length on ground(Axle base) | 3700mm |
Track gauge | 2390mm |
Minimum Ground clearance | 470mm |
Min.slewing radius at front work device | 3555mm |
WORKING RANGE |
Maximum Digging height | 9410mm |
Maximum Dumping height | 6730mm |
Maximum Digging depth | 6480mm |
Maximum Vertical digging depth | 5925mm |
Maximum Digging radius | 9850mm |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
