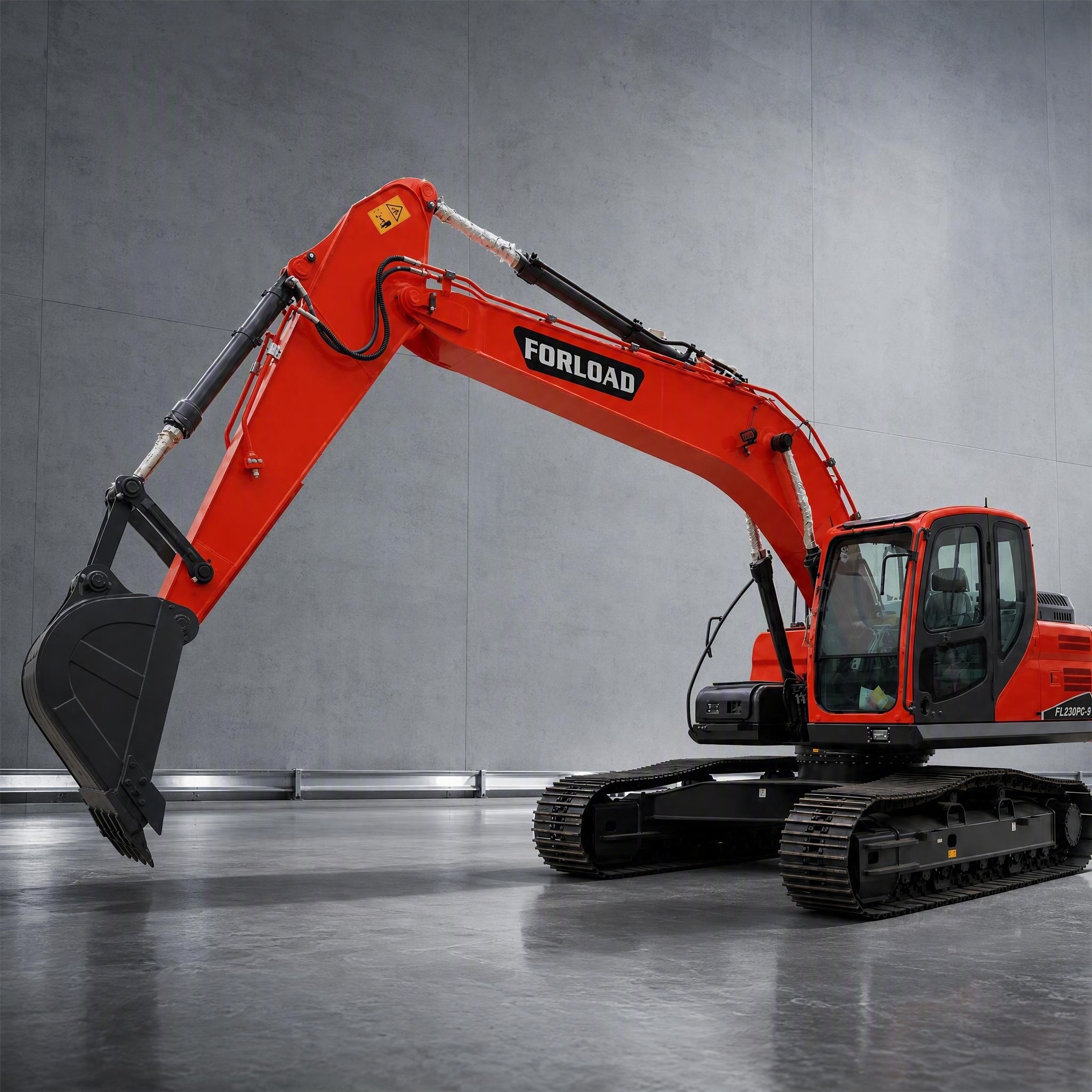

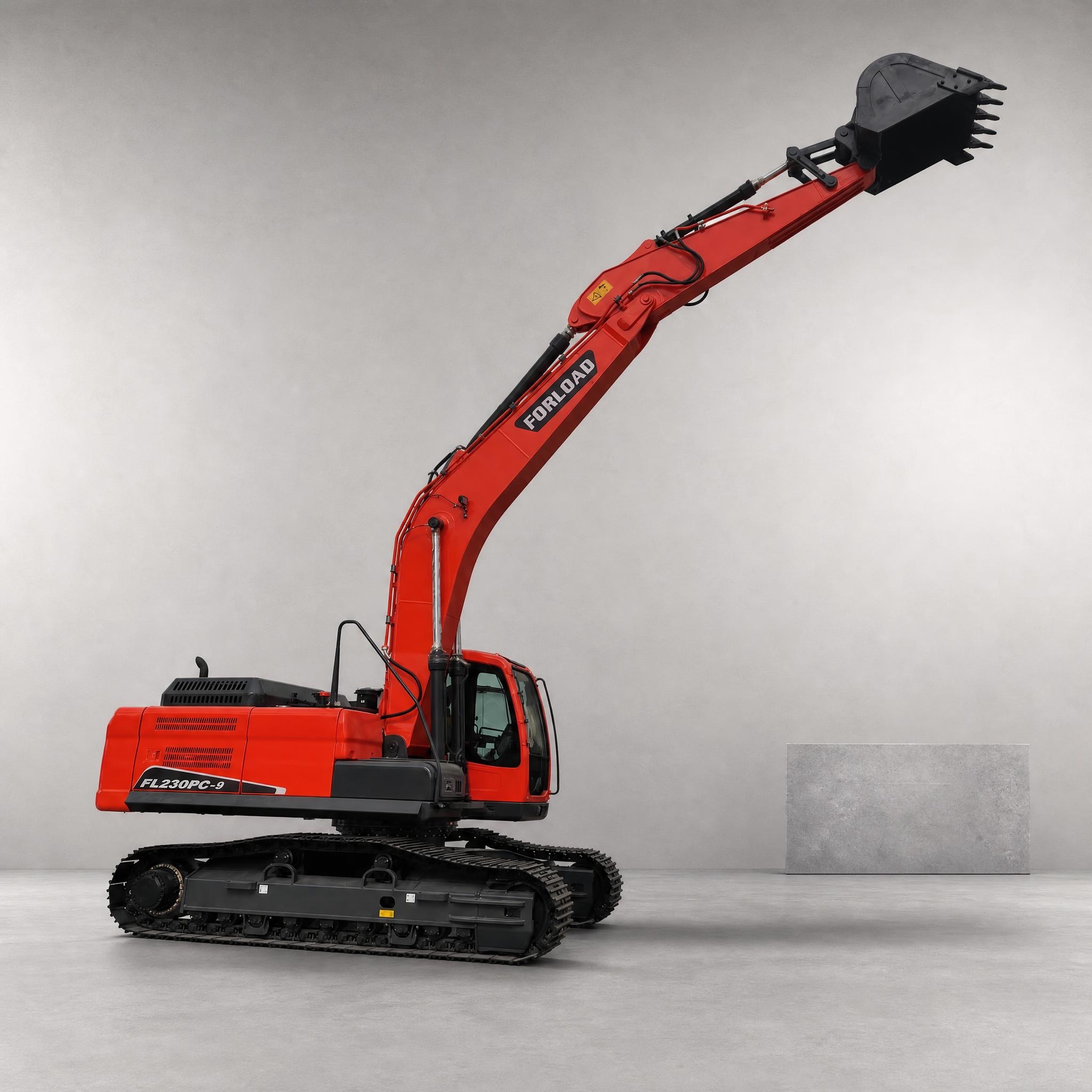

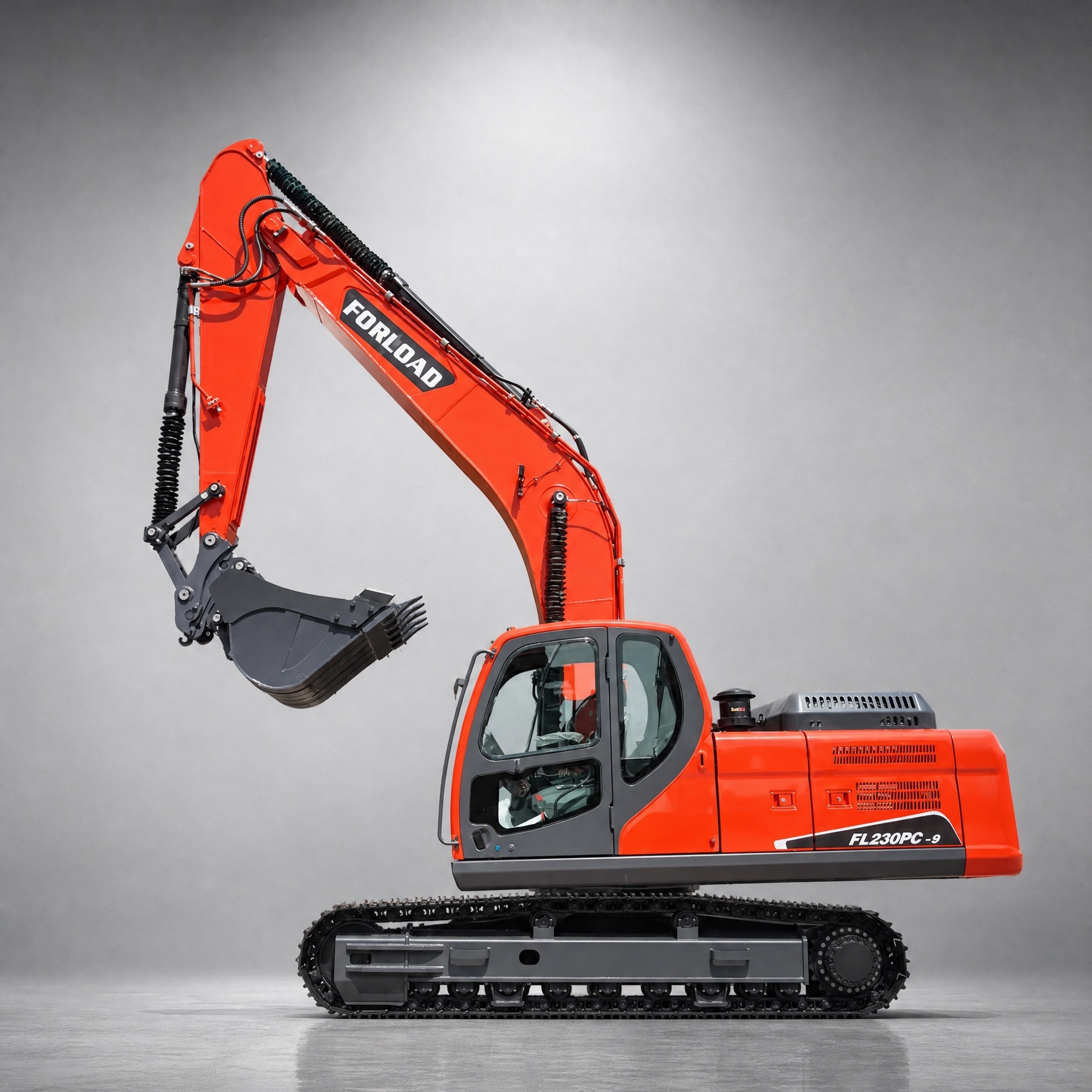

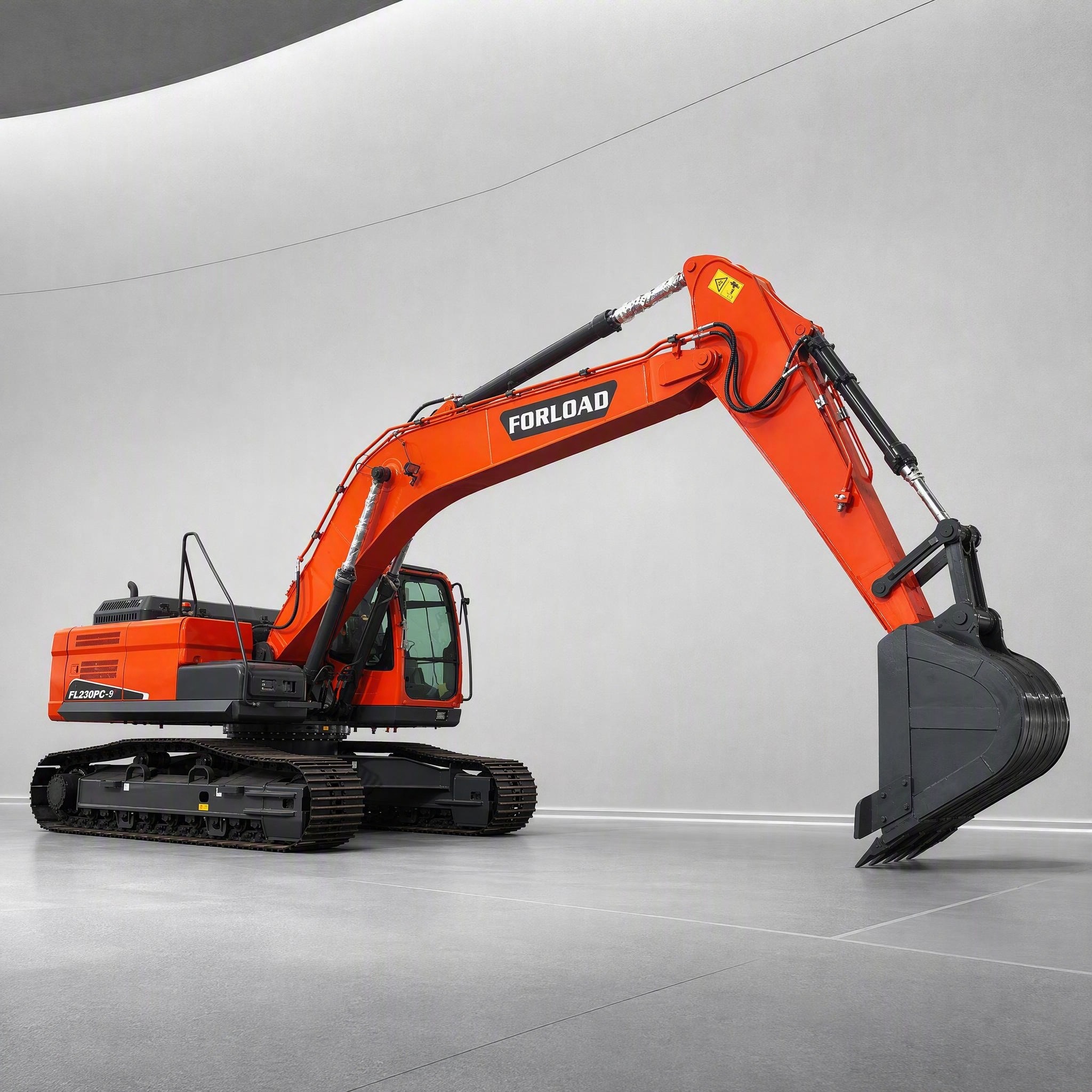

FORLOAD brand FL230PC-9 crawler excavator, designed for mining quarry and road construction projects, its operation weight is 22.5tons, equips with CUMMINS or ISUZU engine.
Hydraulic system adopts famous brand: Kawasaki pump and valve, Doosan swing motor.
Luxury cabin with air conditioner, touch screen; also with hammer pipeline.
Main parameters:
Model | FL230PC-9 |
Operation weight | 22500kgs |
Bucket capacity | 1.1m3 |
Engine |
Engine model | CUMMINS 6BTA5.9 (or CUMMINS QSB7) |
Engine power | 133KW (or 169KW) |
Performance |
Swing speed | 12.4rpm |
Walking speed | 5.4/3.1 km/h |
Bucket digging force | 165kn / 178kn |
Bucket boom digging force | 107.5kn / 115.3kn |
Boom length | 5700mm |
Arm length | 2900mm |
Hydraulic system |
Main pump type | KAWASAKI brand |
Walking hydraulic motor | DOOSAN brand, Axial plunger type |
Swing hydraulic motor | DOOSAN brand, Axial plunger type |
Main dimension |
Transport length | 9510mm |
Transport width | 3000mm |
Transport height | 3030mm |
Chain length | 3630mm |
Chain width | 600mm |
Chain total width | 3000mm |
Chain track distance | 2400mm |
Minimum ground clearance | 480mm |
Working range dimension |
Max. digging radius | 9910mm |
Max. digging depth | 6630mm |
Max. digging height | 9660mm |
Max. dump height | 6810mm |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
