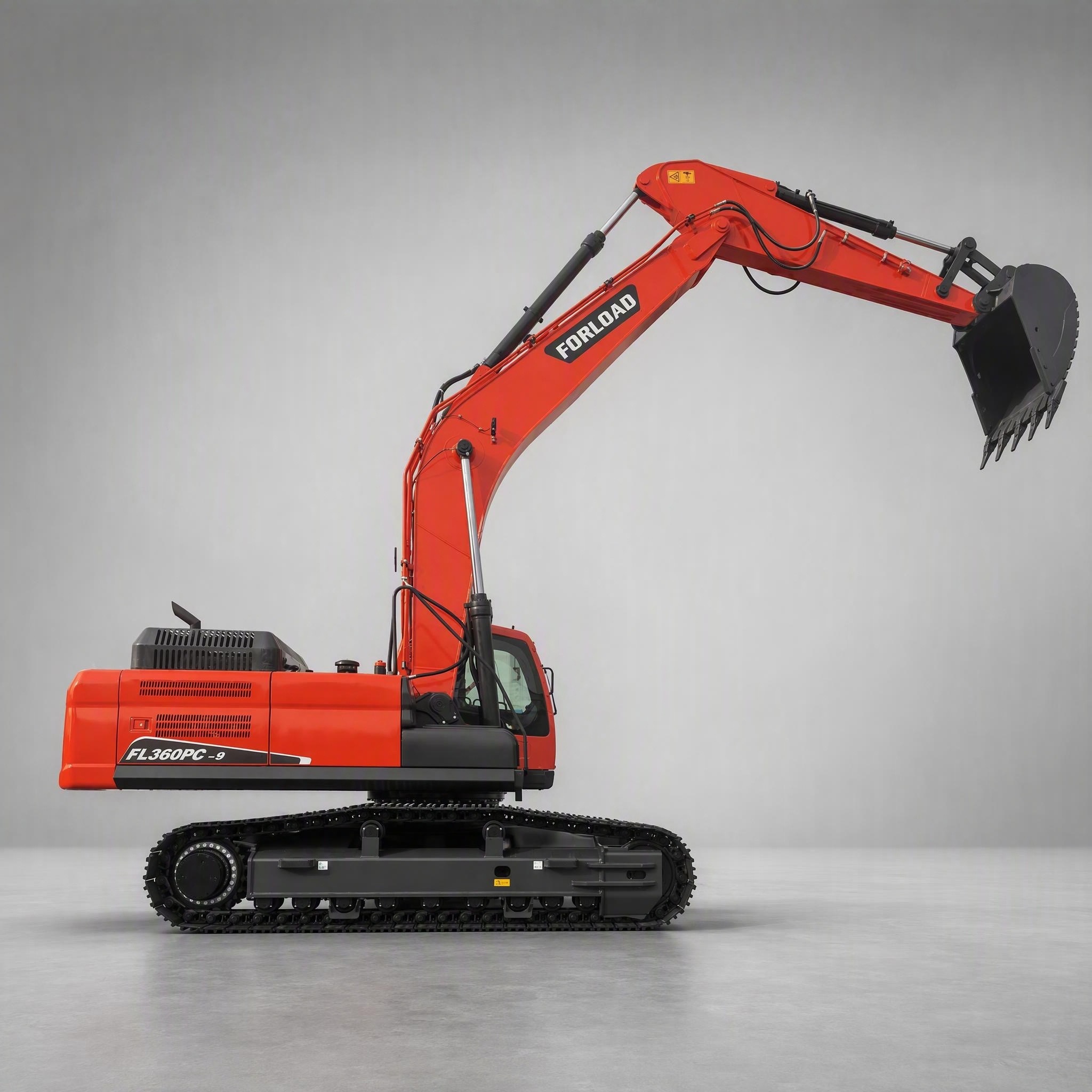

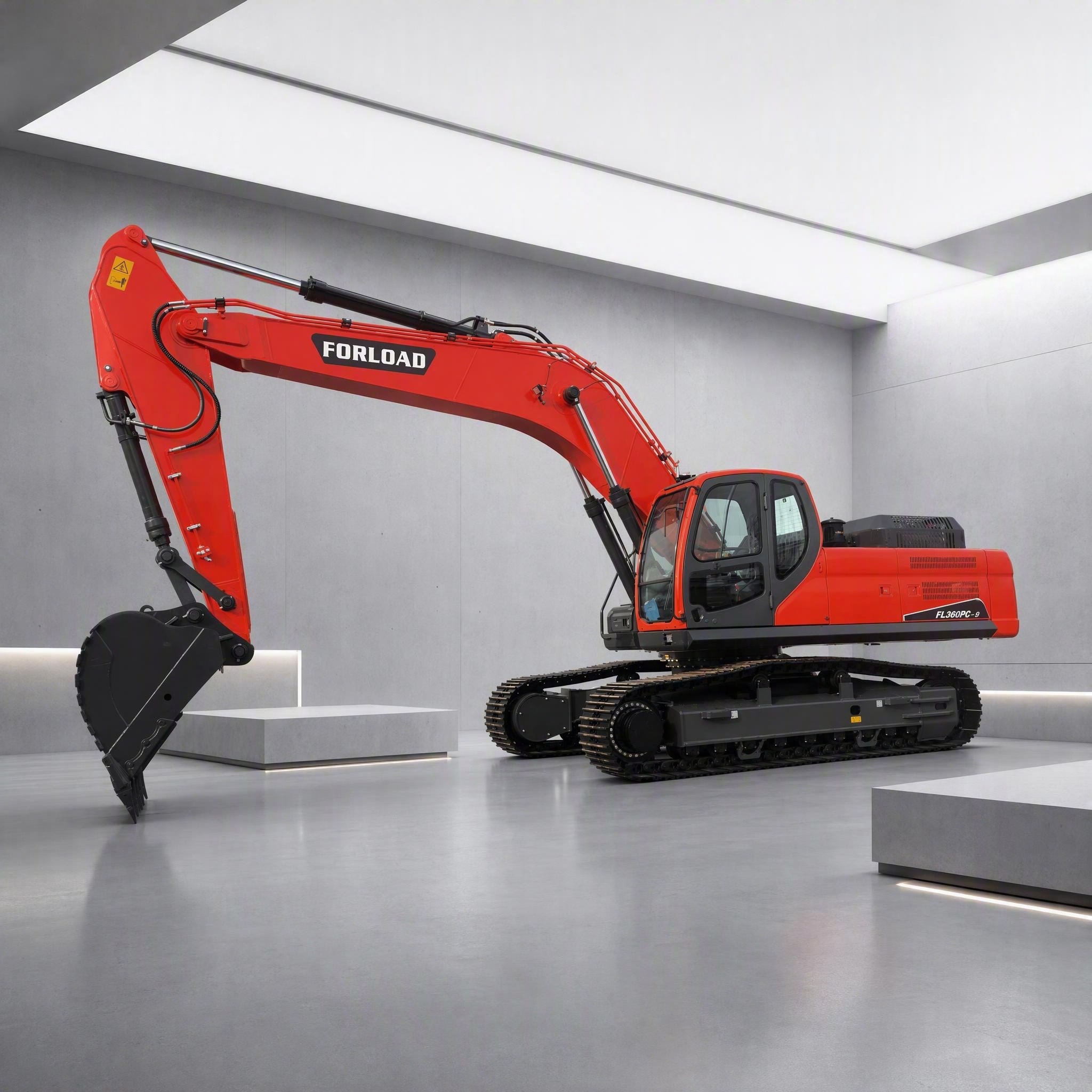

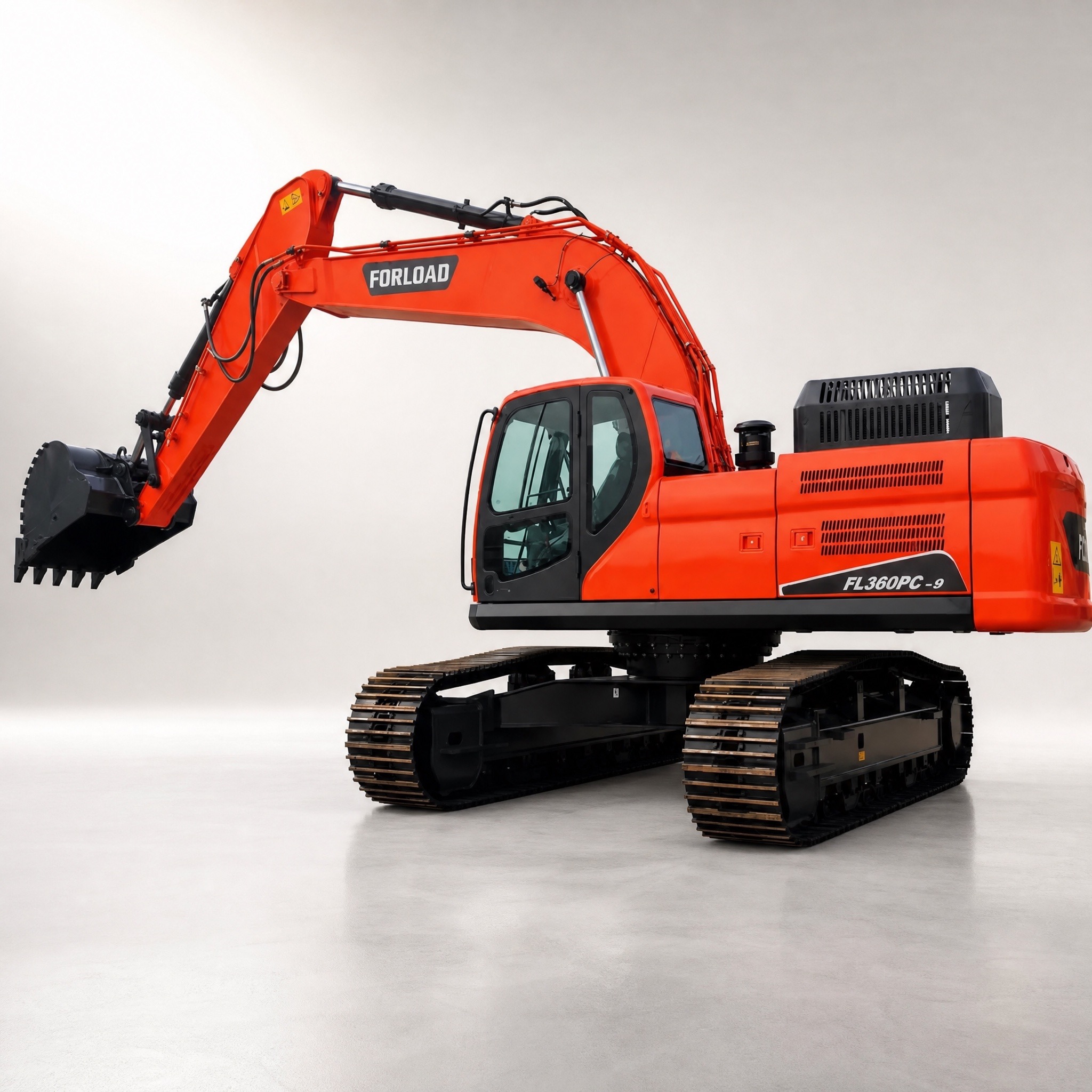

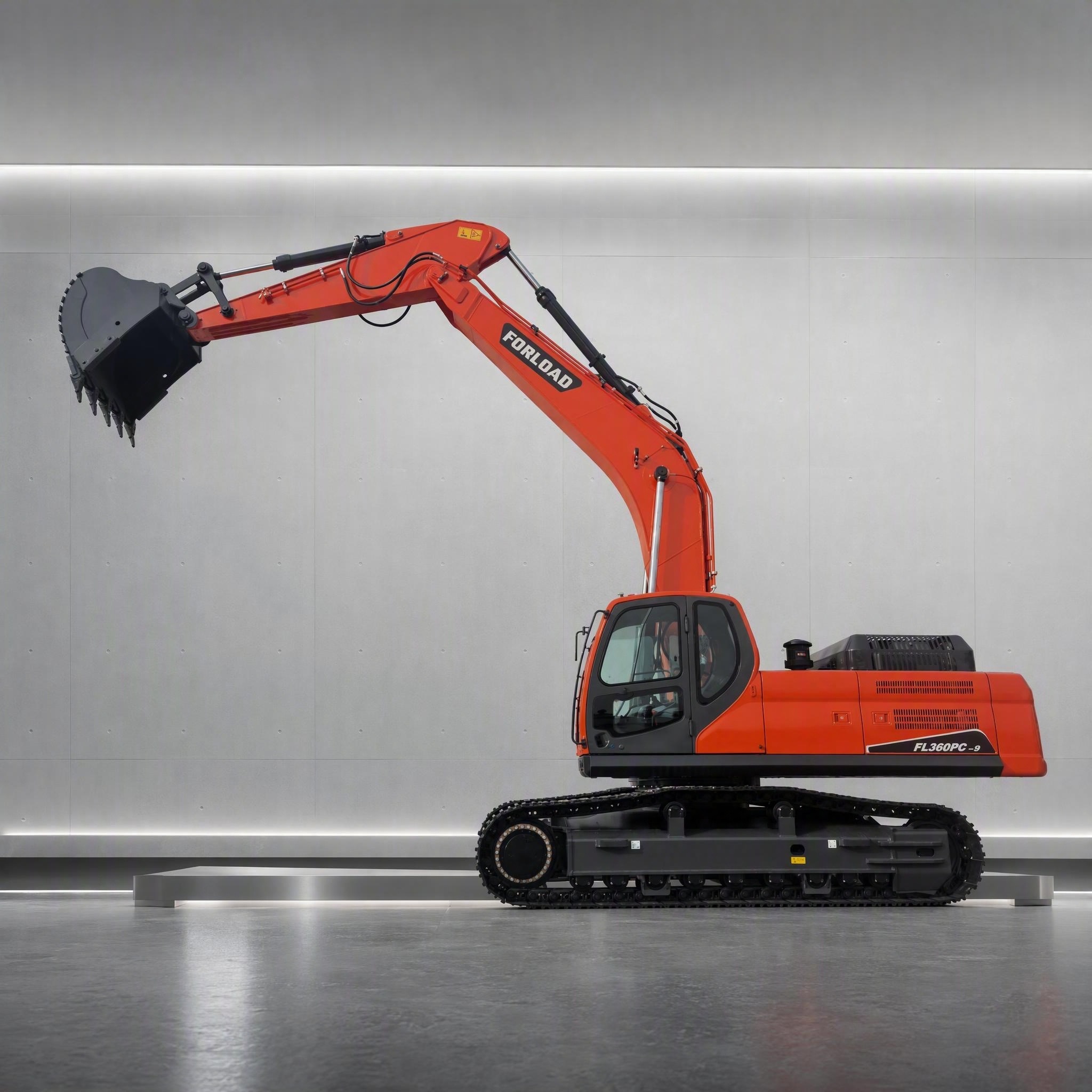

FORLOAD brand FL360PC-9 crawler excavator has the below main features:
1-Exclusive highly efficient hydraulic control system.
2-Engine adopt CUMMINS brand.
3-Main pump and valve: KAWASAKI brand.
4-Travel motor and swing motor: Doosan brand.
5-Powerful travel traction, effectively prevent mixing of soil and rock, highly efficient and rapid operation, high-strength frame structure and greater ground clearance, safe and open engine hood, convenient to maintenance.
Main parameters:
Model | FL360PC-9 |
Operation weight | 34500kgs |
Bucket capacity | 1.8m3 |
Engine |
Engine model | DF CUMMINS 6CTAA8.3-C260 |
Engine power | 194kw |
Performance |
Swing speed | 10.6rpm |
Walking speed | 5.7/3.2 km/h |
Bucket digging force | 189kn / 202kn |
Bucket boom digging force | 131kn / 139kn |
Boom length | 6255mm |
Arm length | 3150mm |
Hydraulic system |
Main pump type | KAWASAKI brand, variable displacement piston pump |
Walking hydraulic motor | DOOSAN, Axial plunger type |
Swing hydraulic motor | DOOSAN, Axial plunger type |
Main dimension |
Transport length | 10920mm |
Transport width | 3200mm |
Transport height | 3375mm |
Chain length | 4940mm |
Chain width | 600mm |
Chain total width | 3200mm |
Minimum ground clearance | 500mm |
Working range dimension |
Max. digging radius | 10760mm |
Max. digging depth | 7200mm |
Max. digging height | 10550mm |
Max. dump height | 7500mm |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
