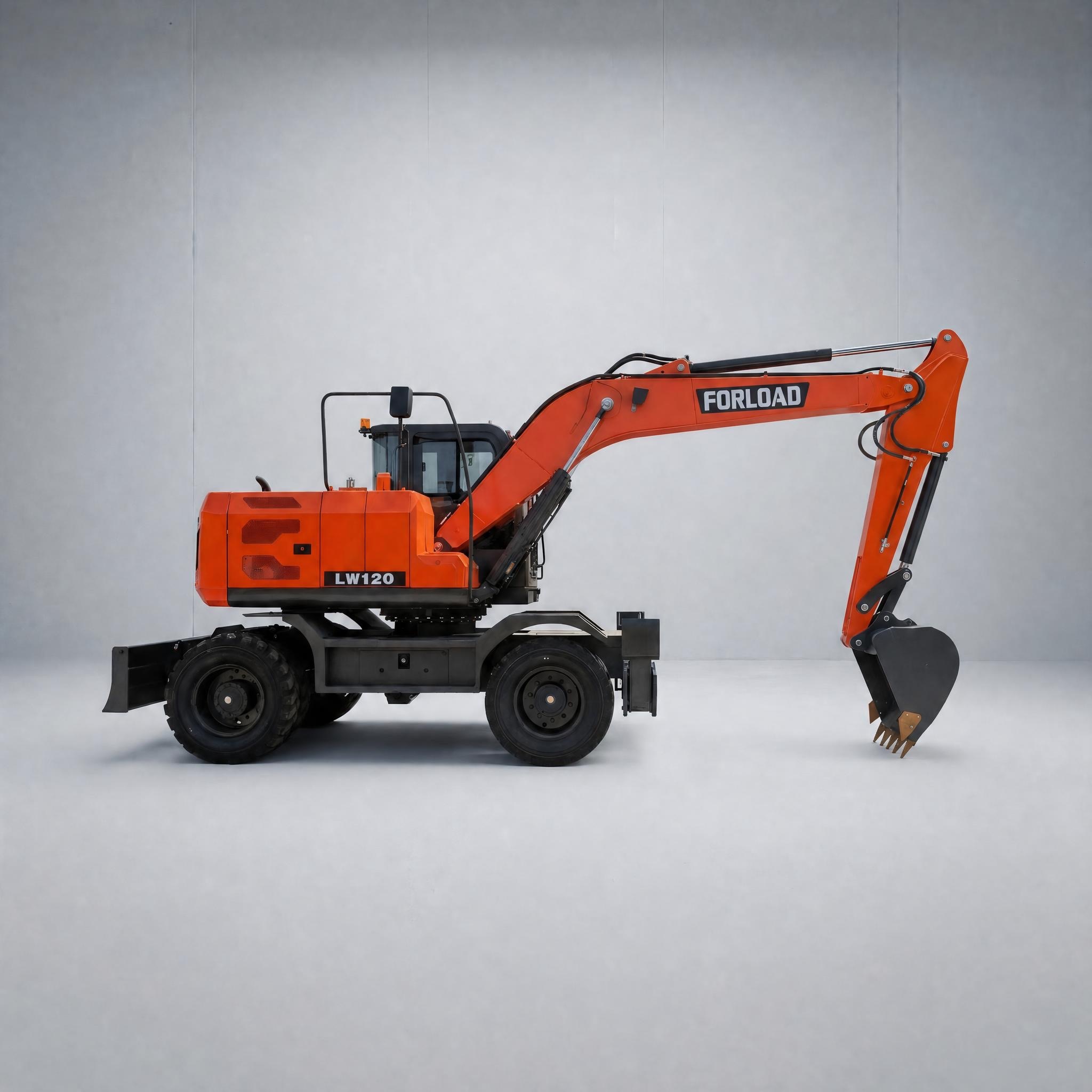

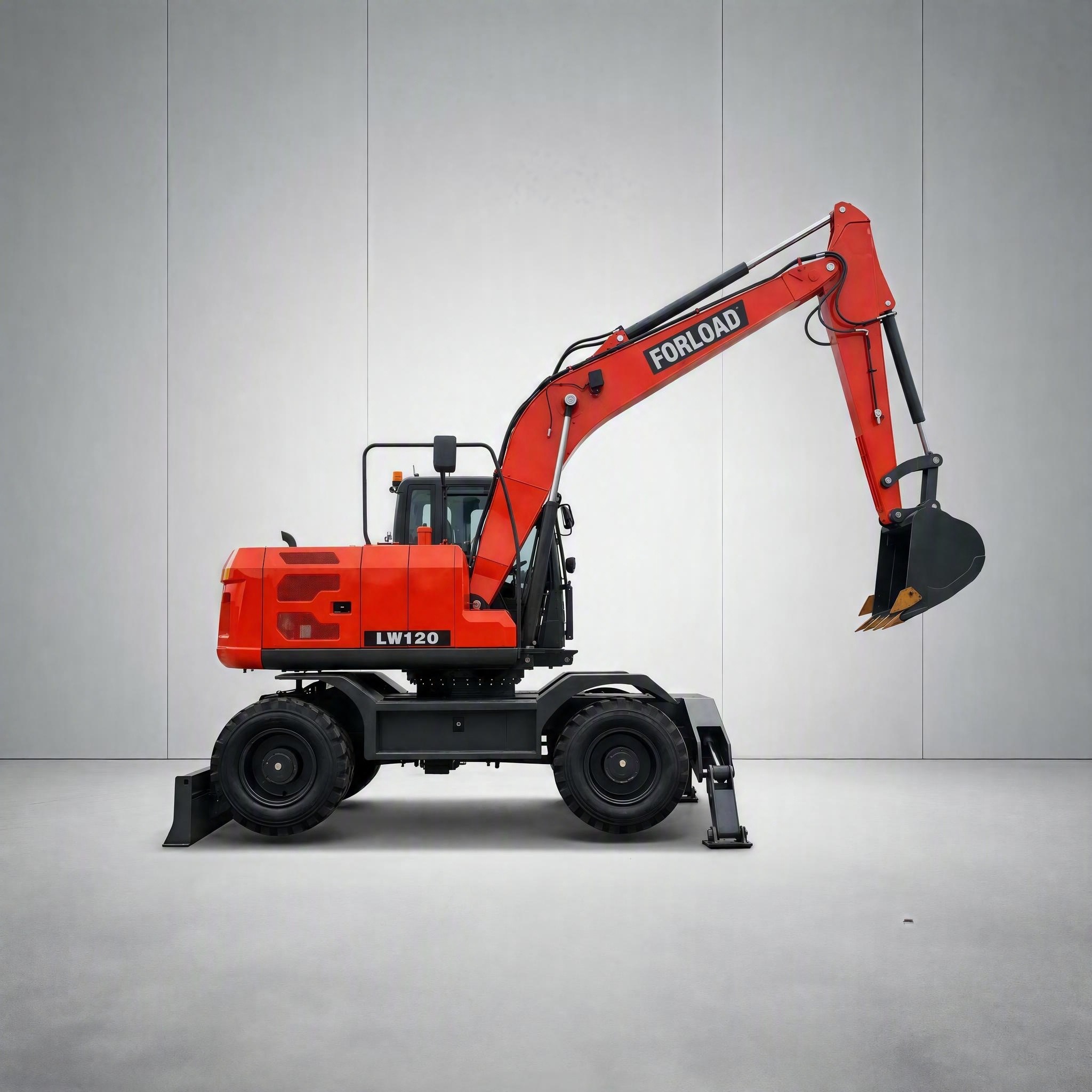

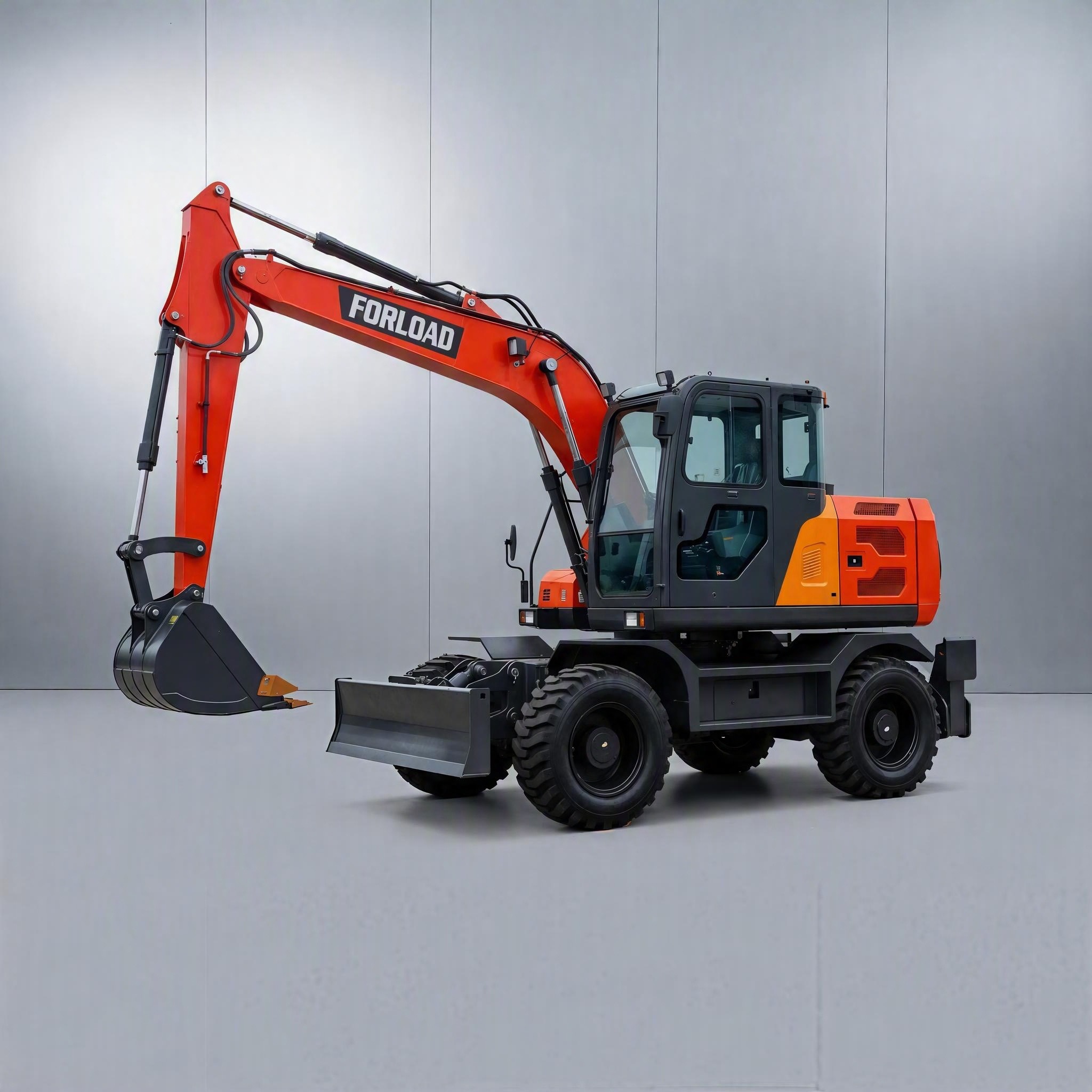

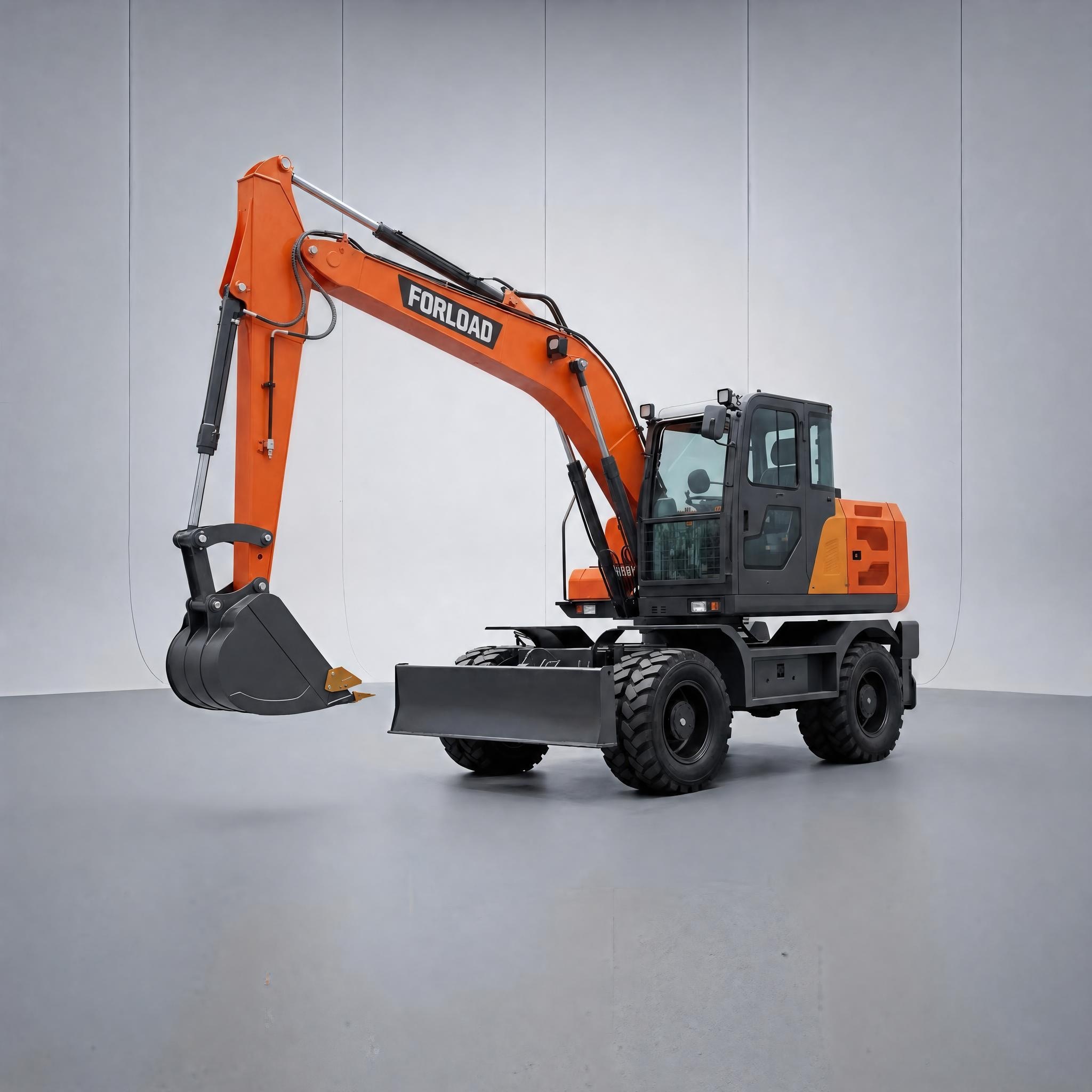

FORLOAD brand LW120 wheeled excavator, is one 12ton capacity excavator, use YUCHAI powerful engine and CVT transmission.
Standard configuration is eight tires, could install front blade and rear support legs.
Quick hitch and various attachments available optional.
Main parameters:
ENGINE |
Brand /Model | YUCHAI/YC4DK100 |
Power /Rotation speed | 74kw(100HP) @2200rpm |
DRIVING SYSTEM |
Maximum Travel speed | 30km/h |
Tire model/Number of tires | 9.00-20/8 |
Driving type | Hydraulic controlling |
Steering type | Steering wheel |
TRANSMISSION |
Type | Free shift (Stepless gear box) |
BRAKE SYSTEM |
Driving brake (Front axle) | Hydraulic brake (brake caliper) |
Parking brake | Brake pedal lock |
Emergency brake | Foot brake |
PERFORMANCE PARAMETER |
Standard Bucket capacity | 0.3m³ |
Swing speed | 12rpm |
Maximum Grade ability | 25° |
Maximum Bucket digging force | 75KN |
Maximum Arm digging force | 52KN |
Hydraulic system pressure | 30Mpa |
Machine weight | 12000kg |
MACHINE SIZE |
Overall dimension (L*W*H) | 7285mm*2270mm*3010mm |
Wheelbase/Tread | 2500mm/1780mm |
Minimum Ground clearance | 335mm |
Swing radius at tail | 2160mm |
WORKING RANGE |
Maximum Digging height | 8300mm |
Maximum Dumping height | 6380mm |
Maximum Digging depth | 4300mm |
Maximum Digging radius | 7580mm |
Boom length | 4200mm |
Arm length | 2300mm |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
