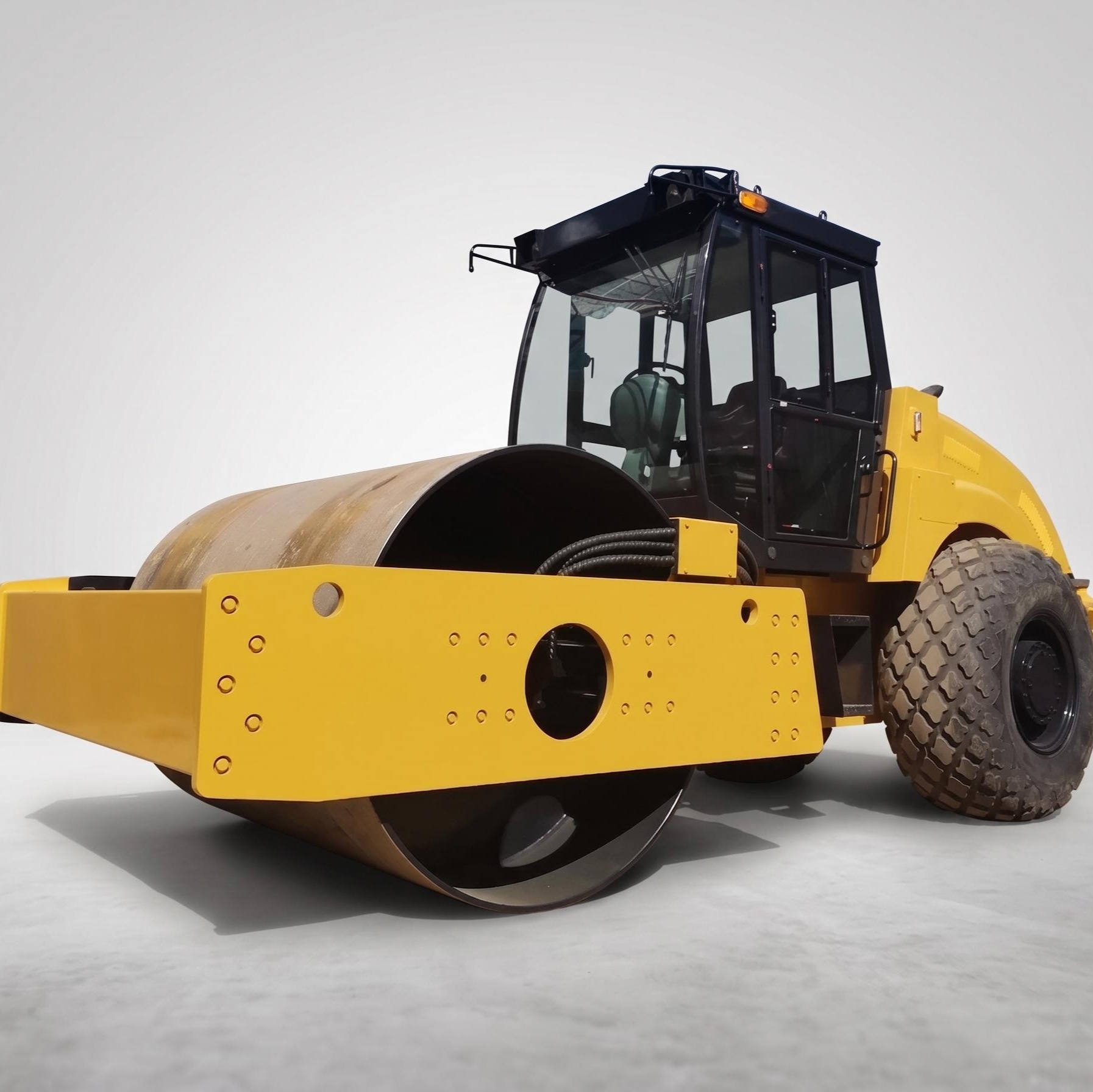

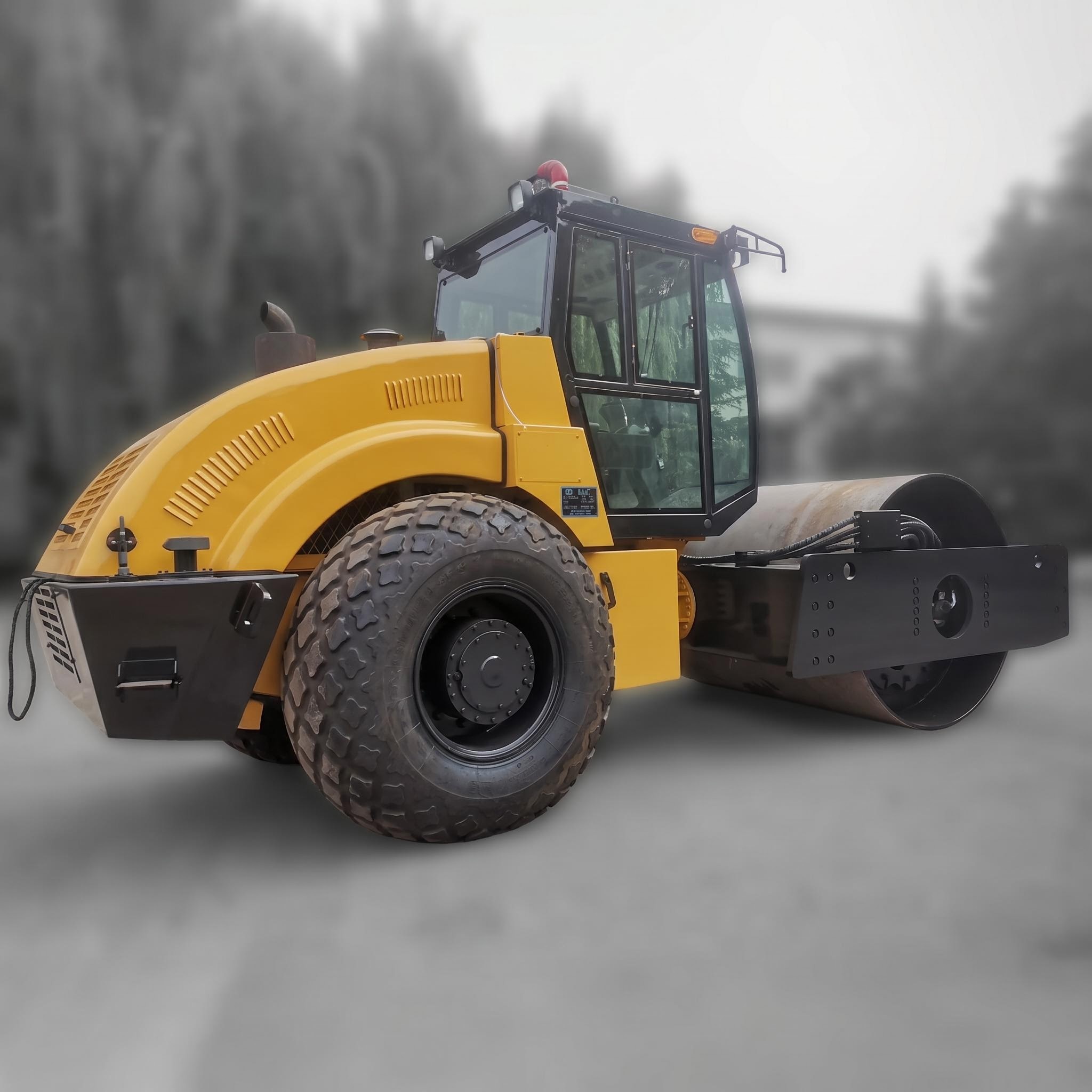

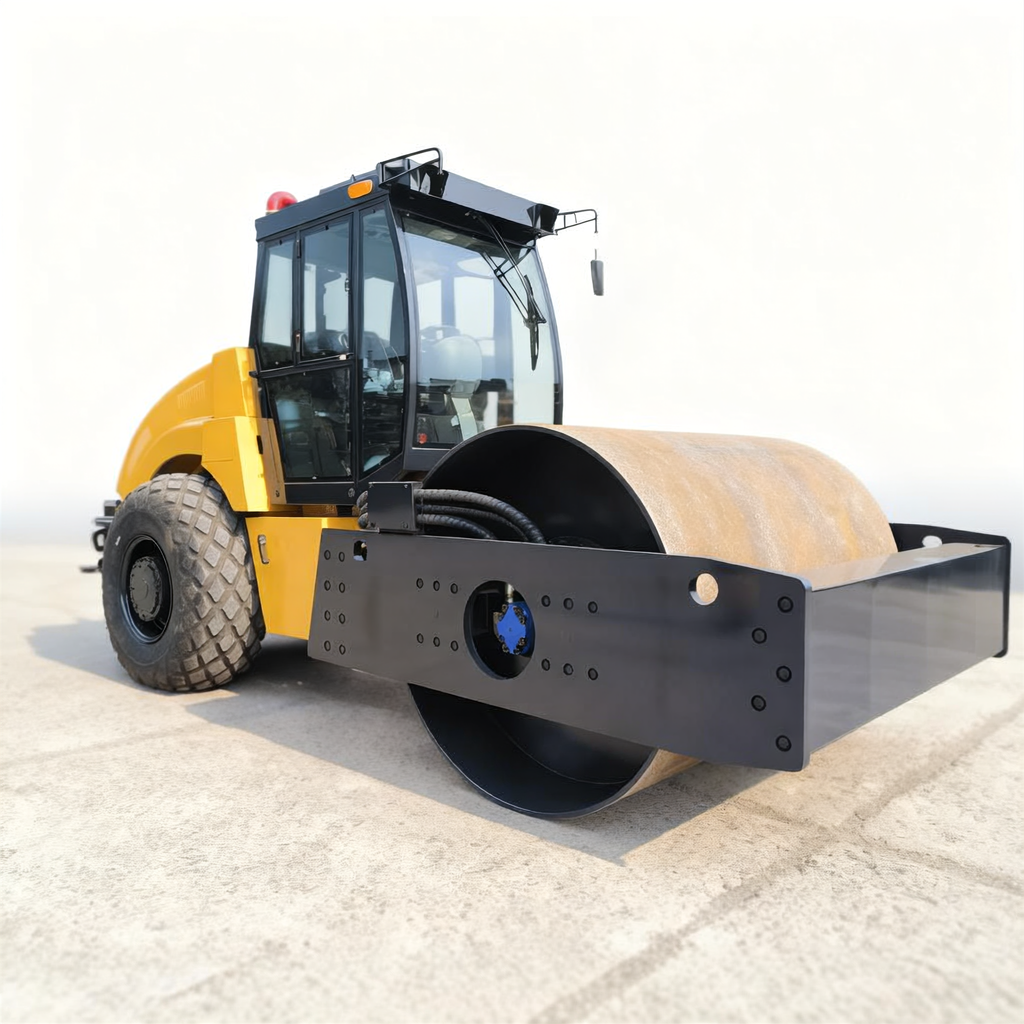

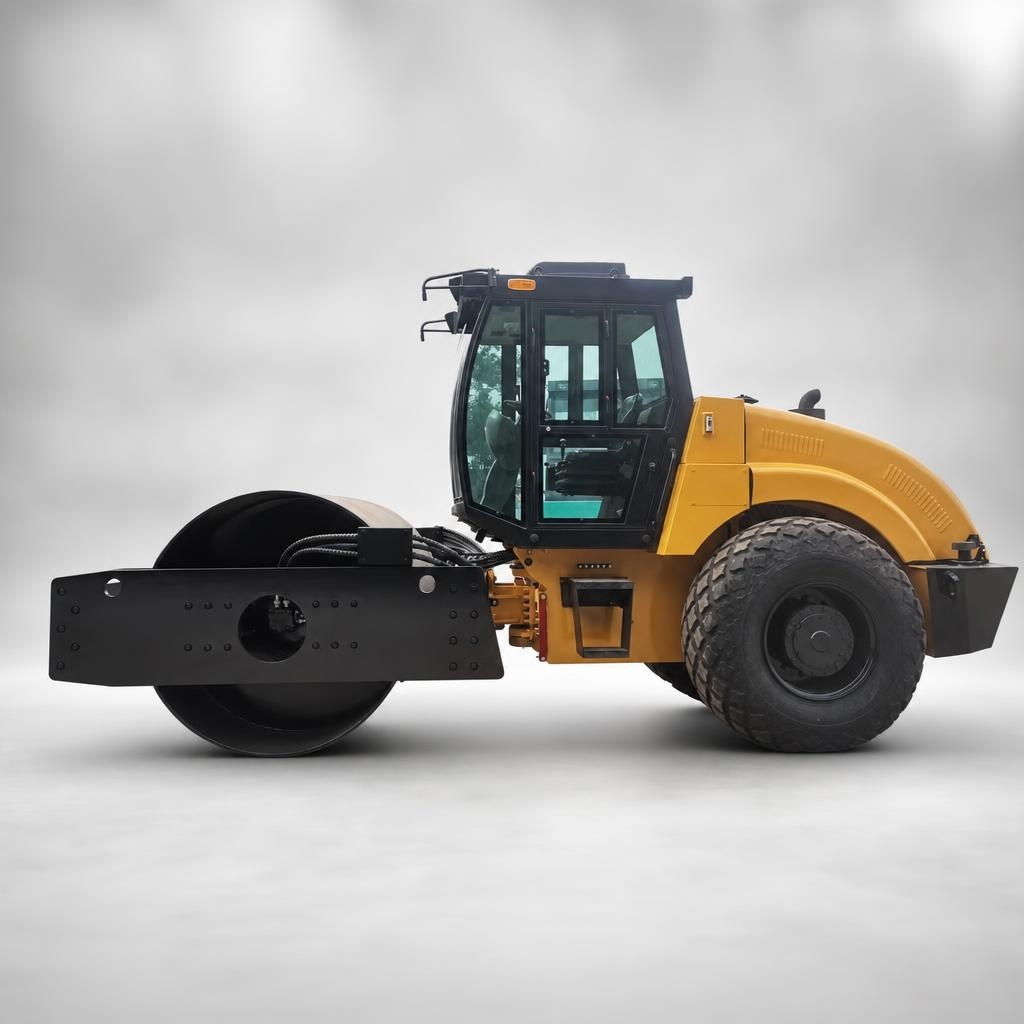

FORLOAD brand single rear tire drive vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also, it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, seaport and industrial sites.
Main Features
1) Power System: CUMMINS B-series turbocharged diesel engine, huge power man efficiency, compliance for the operating condition above 4000 meters altitude.
2) Hydraulic single drive, hydraulic vibration, hydraulic articulated steering, advanced technology; Blocking the oil supply to brake the vehicle, safe and reliable.
3) Streamline outline, circular windshield glass and curvy hood form a unique style.
4) The main hydraulic components made of imported brands.
Main parameters:
MODEL | LT218B | LT216B | LT214B | LT212B | LT210B |
Operation weight | 18000kg | 16000kg | 14000kg | 12000kg | 10000kg |
Static linear load | 428 N/cm | 380 N/cm | 326 N/cm | 276 N/cm | 270 N/cm |
Vibrating frequency | 30 Hz | 30 Hz | 30 Hz | 30 Hz | 30 Hz |
Vibrating amplitude | 1.9/0.95mm | 1.8/0.9mm | 1.7/0.8mm | 1.8mm | 1.8mm |
Grade ability | 30% | 30% | 30% | 35% | 35% |
Steering angle | 350 | 350 | 350 | 350 | 350 |
Tuning radius | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm |
Vertical oscillation | 80 | 80 | 80 | 80 | 80 |
Tire size | 23.1-26 | 23.1-26 | 23.1-26 | 17.5-25 | 17.5-25 |
Overall length | 6200 mm | 6025 mm | 5900 mm | 5640 mm | 5640 mm |
Overall width | 2280 mm | 2280 mm | 2280 mm | 2258 mm | 2258 mm |
Overall height | 3050 mm | 3050 mm | 3050 mm | 2970 mm | 2970 mm |
Drum width | 2100 mm | 2100 mm | 2100 mm | 2100 mm | 2100 mm |
Drum diameter | 1570 mm | 1570 mm | 1570 mm | 1400 mm | 1400 mm |
Wheelbase | 3380 mm | 3265 mm | 3185 mm | 3080 mm | 3080 mm |
Engine model | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 |
Engine power | 97 Kw | 97 Kw | 97 Kw | 97 Kw | 97 Kw |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
