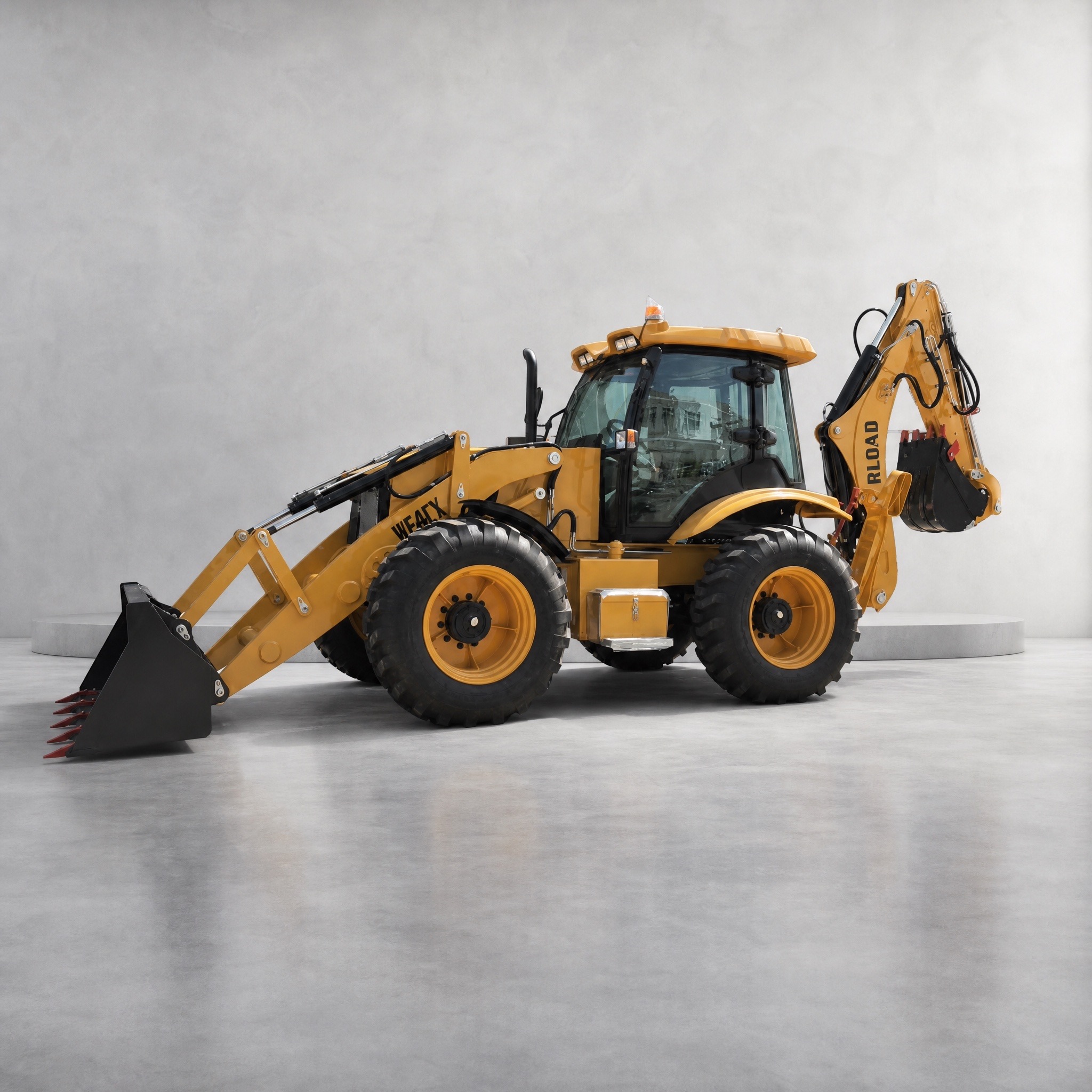

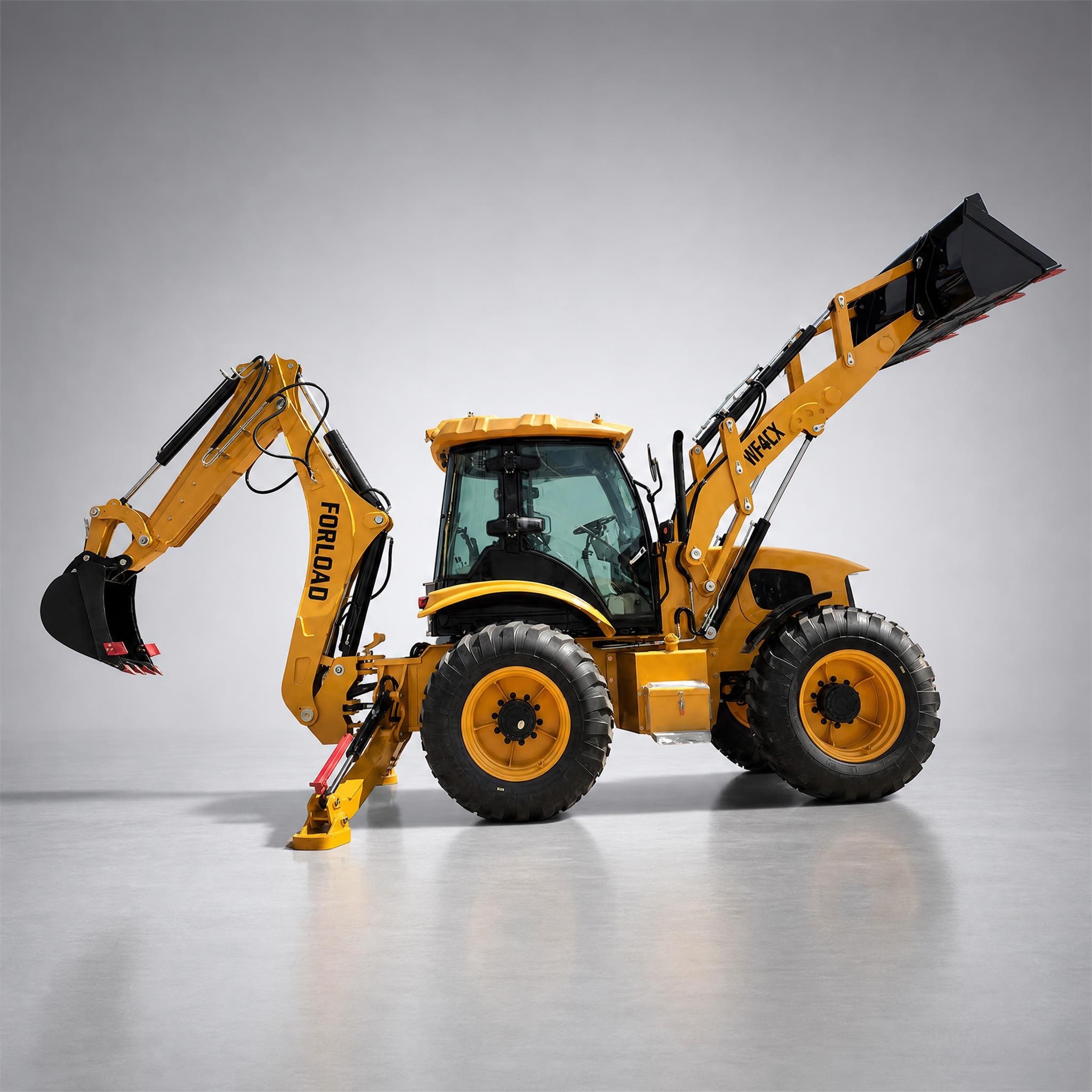

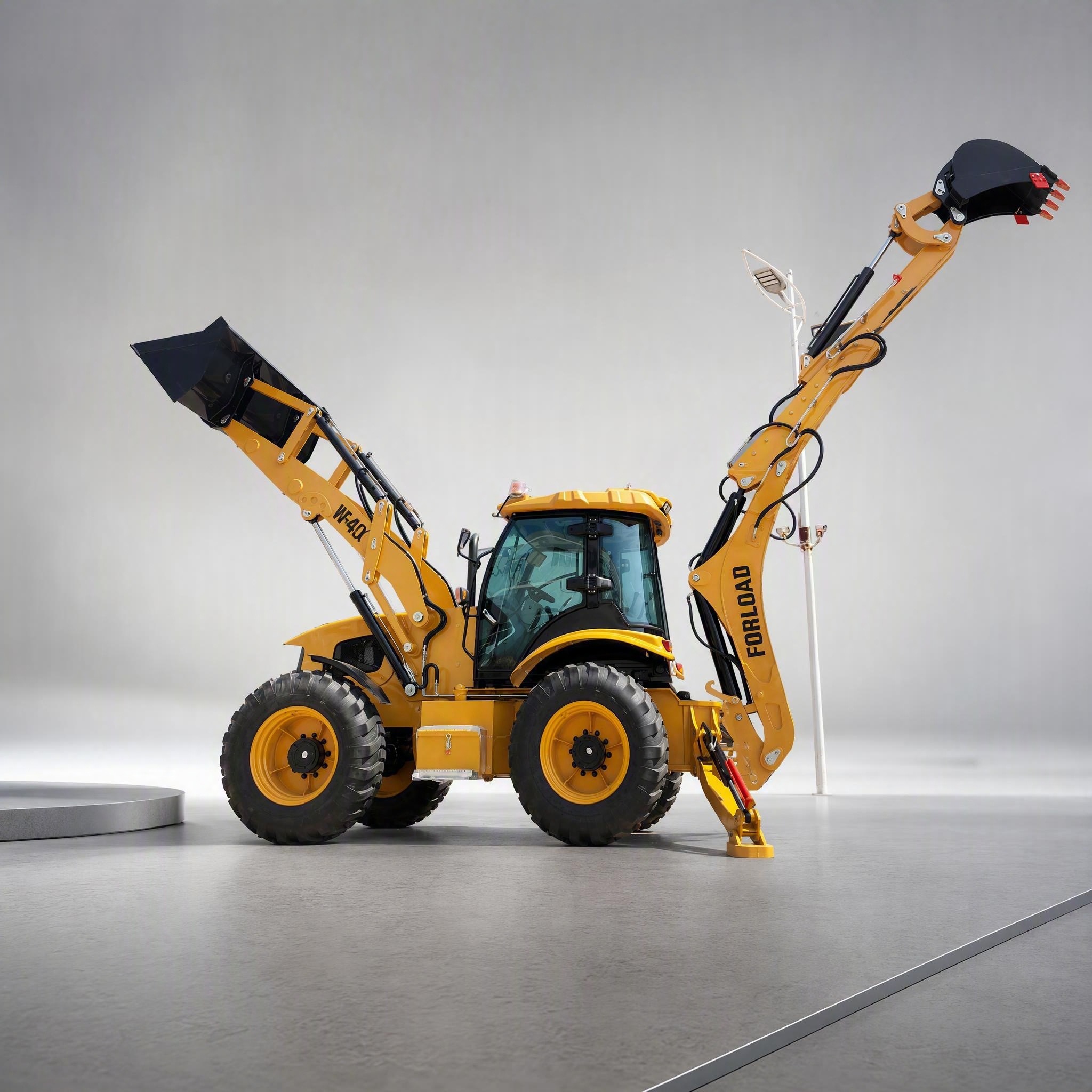

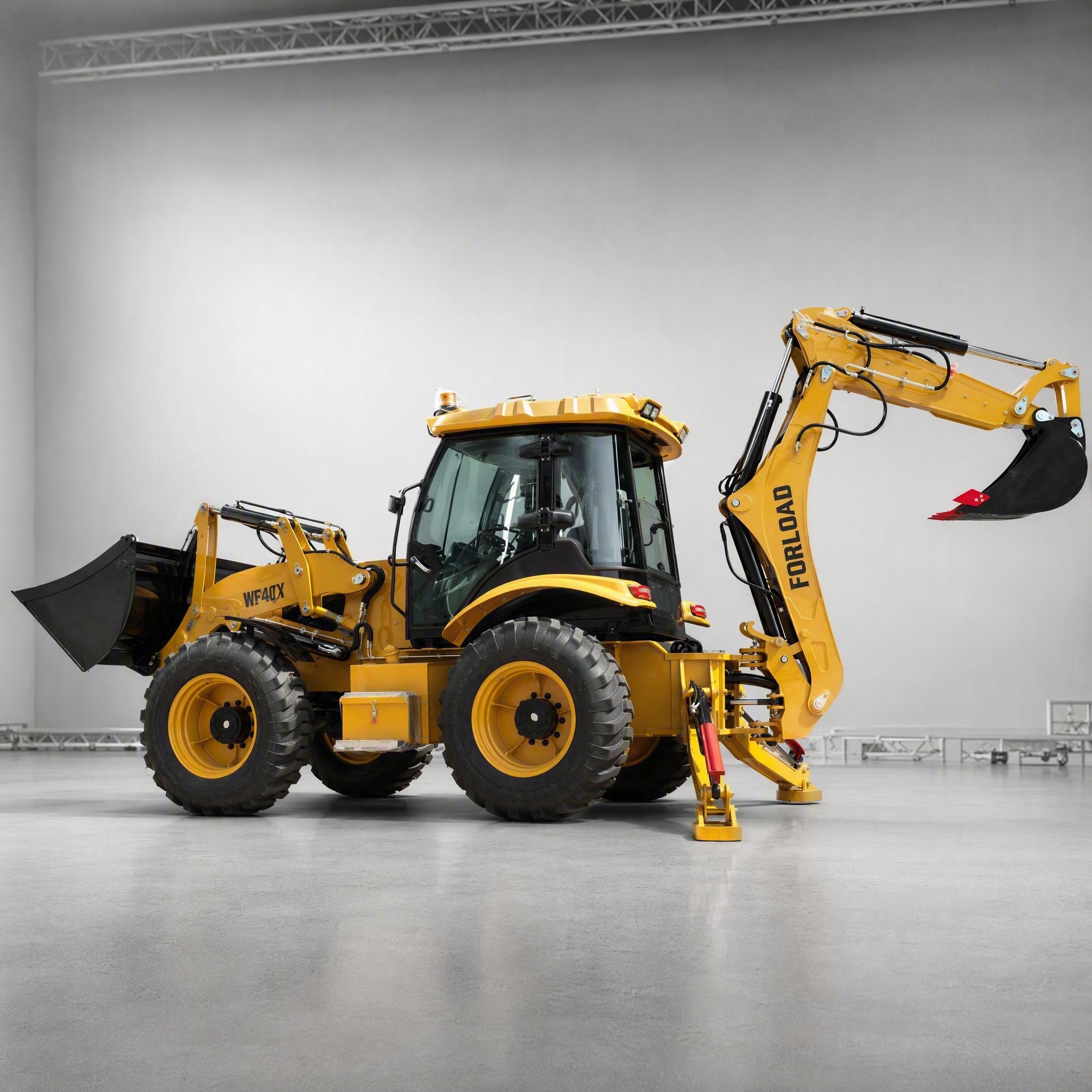

FORLOAD brand WF4CX backhoe wheel loader, is one multi-function construction machine, integrated front-end wheel loader and excavator function, could load and dig.
Because of its front and rear could change to use different attachments (forks, hammer, drill, 4in1 bucket, 6in1 bucket, sweeper, mixer bucket etc.) wide usage in various jobsites.
Main parameters:
Overall Dimension |
1 | Length (with bucket on ground) | 6450mm |
2 | Overall width（at stabilizer ） | 2500mm |
3 | Load Bucket width | 2300mm |
4 | Height( To the top of the cab) | 3120mm |
5 | Height (To the top of the digging pole) | 3940mm |
6 | Wheel base | 2335mm |
7 | Back wheel Tread | 2139mm |
Main Loading Technical Specification |
1 | Rated load | 2800KG |
2 | Operating weight | 8000KG |
3 | Rated bucket capacity | 1.5m³ |
4 | Max. dump clearance | 2800mm |
5 | Dump reach | 870mm |
6 | Radius of turn（Outside of bucket） | 5750mm |
Main Digging Technical Specification |
1 | Rated digging bucket capacity | 0.3m³（620mm width） |
2 | Max. digging depth | 4000mm |
| Optional digging depth (telescopic digging boom) | 5000mm-5500mm |
3 | Max. digging radius | 5345mm |
4 | Max. dumping height | 3740mm |
5 | Max. Digging Height | 5470mm |
6 | Lifting force at Max. digging radius | 1220kg |
Diesel engine |
1 | Brand/Model | YUCHAI YCD4J22T-125 |
2 | Type | In Line，Direct injection，Four-Stroke，Water Cooling |
3 | Rated output | 91(KW) |
4 | Optional engine | CUMMINS 4BT3.9-C125 (91KW) YUCHAI YCF36125-S500 92KW (EURO5) CUMMINS QSF3.8 (EPA4) |
Transmission System |
1 | Torque Converter | Model | 315 |
Cooling type | Pressure oil circulating |
2 | Gearbox | Type | Synchromesh mechanical shift |
3 | Drive axle | Type | Four-wheel drive Four-wheel steering Crab walk |
4 | Gear shift position | 4 F, 4 R |
5 | Size of tire | 16.9-28 |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
