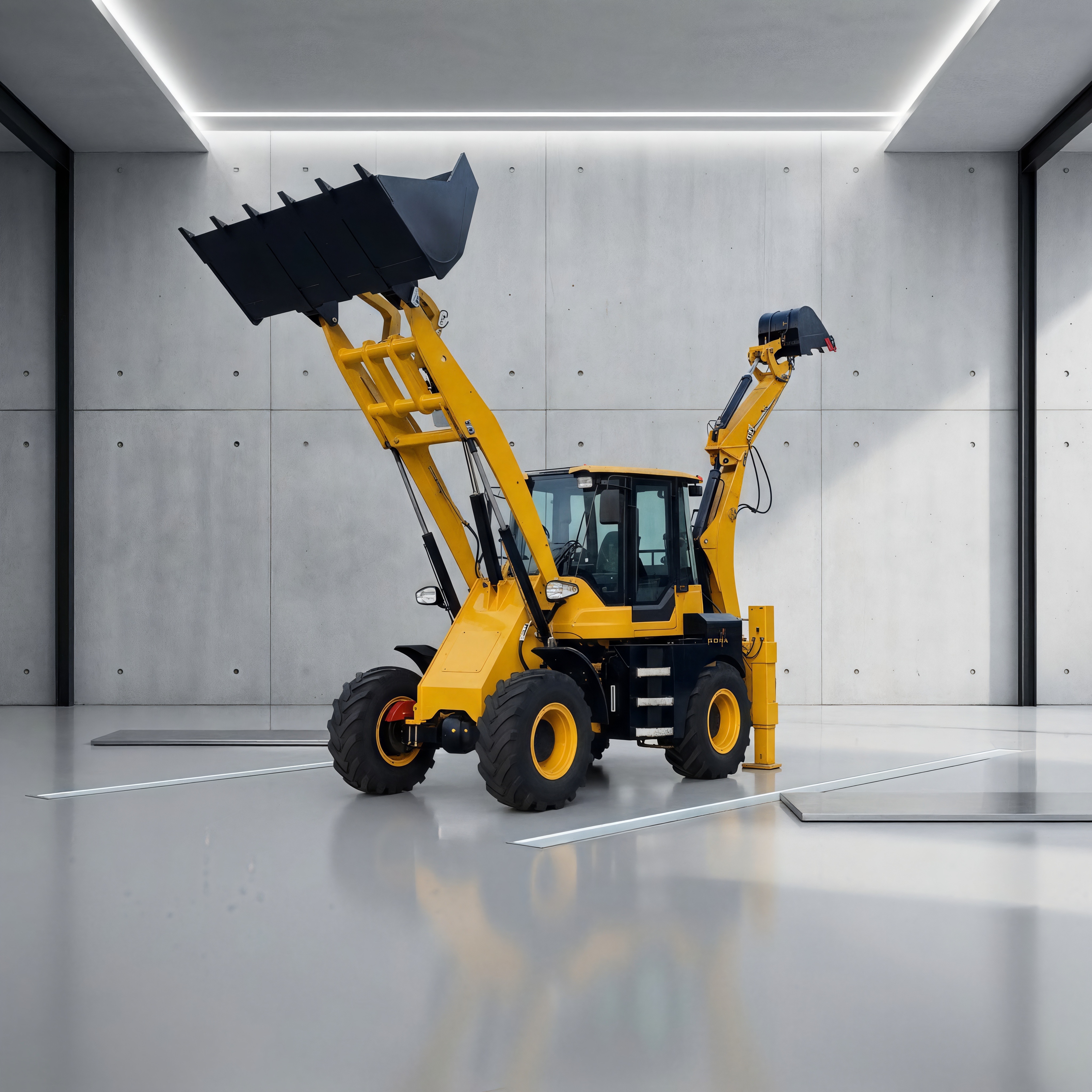

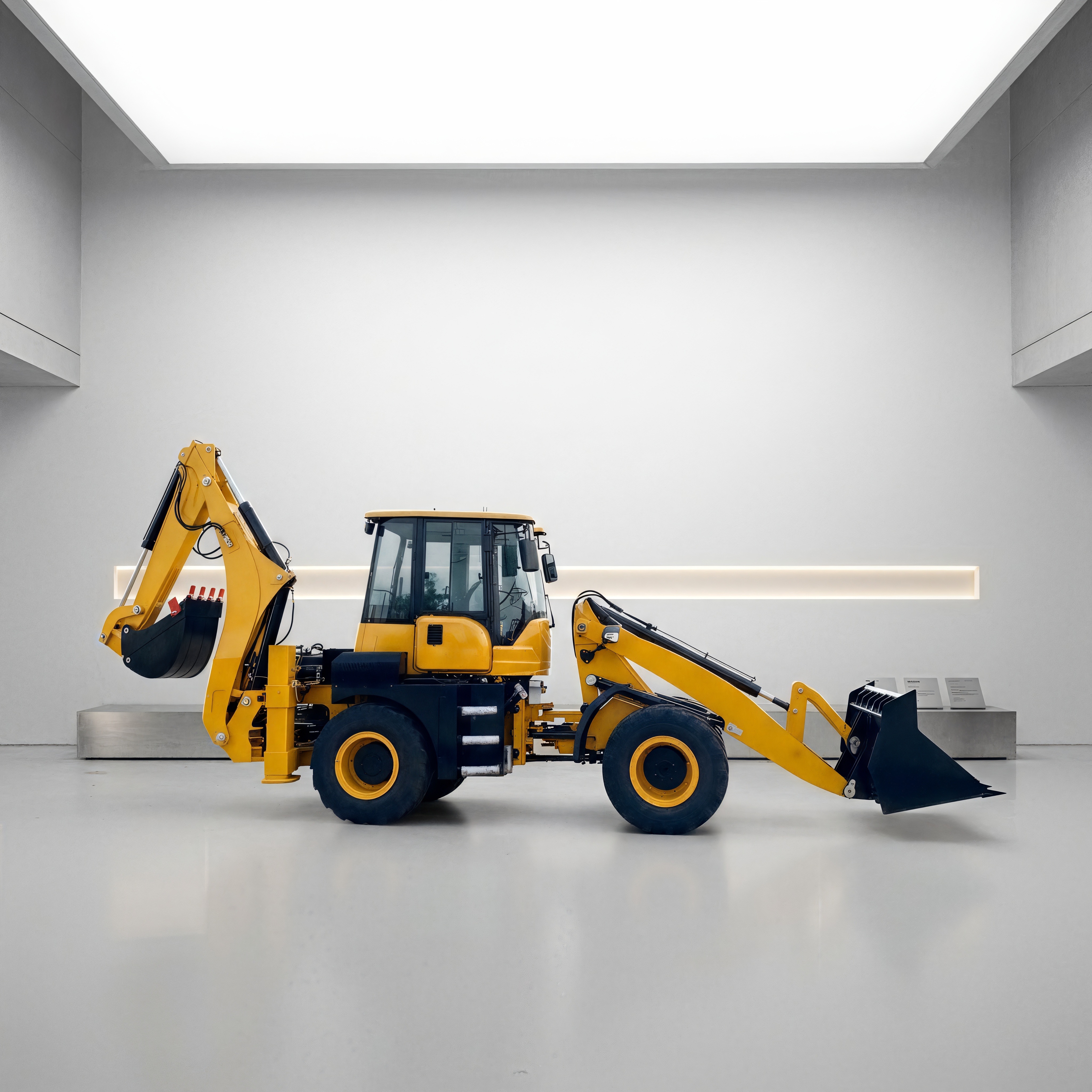

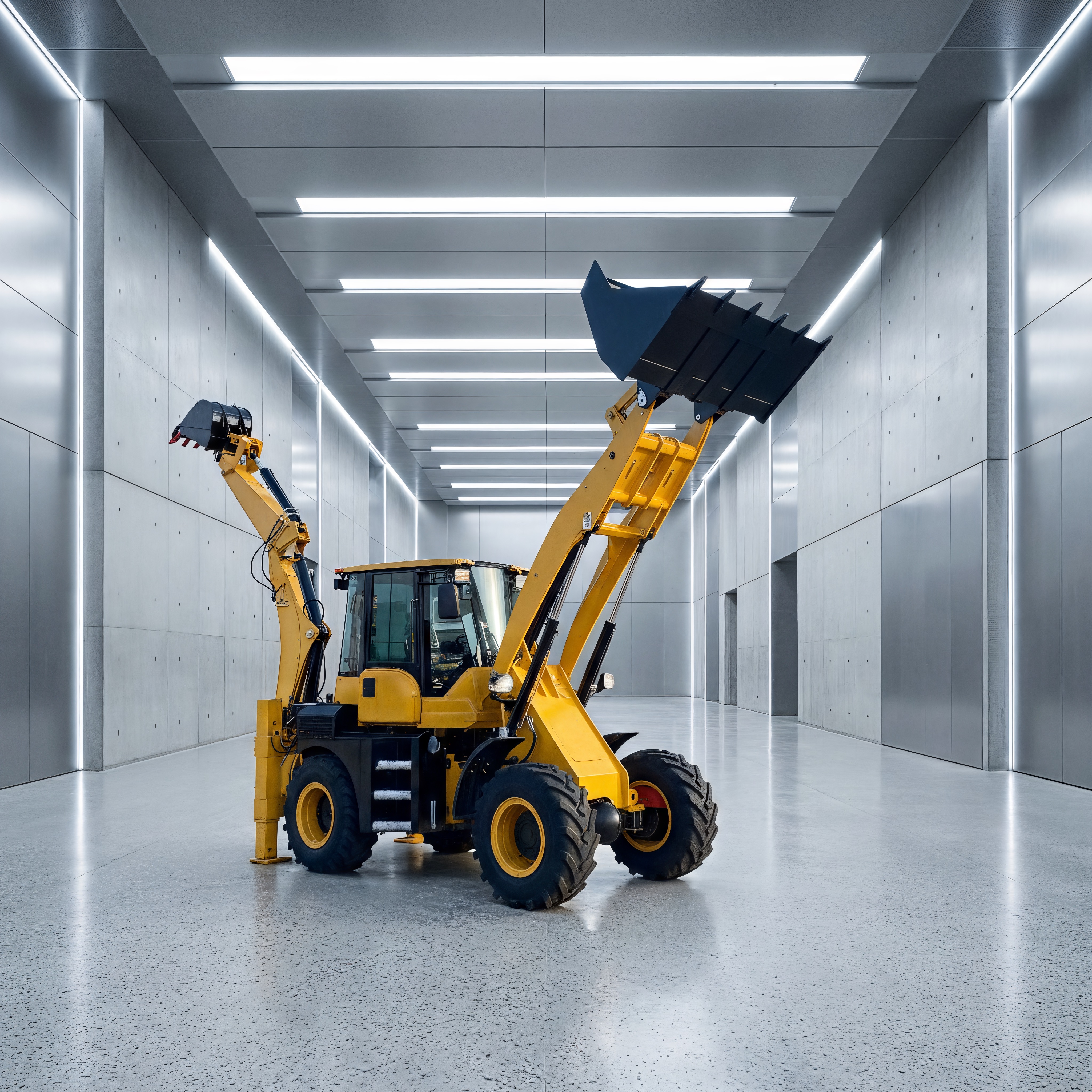

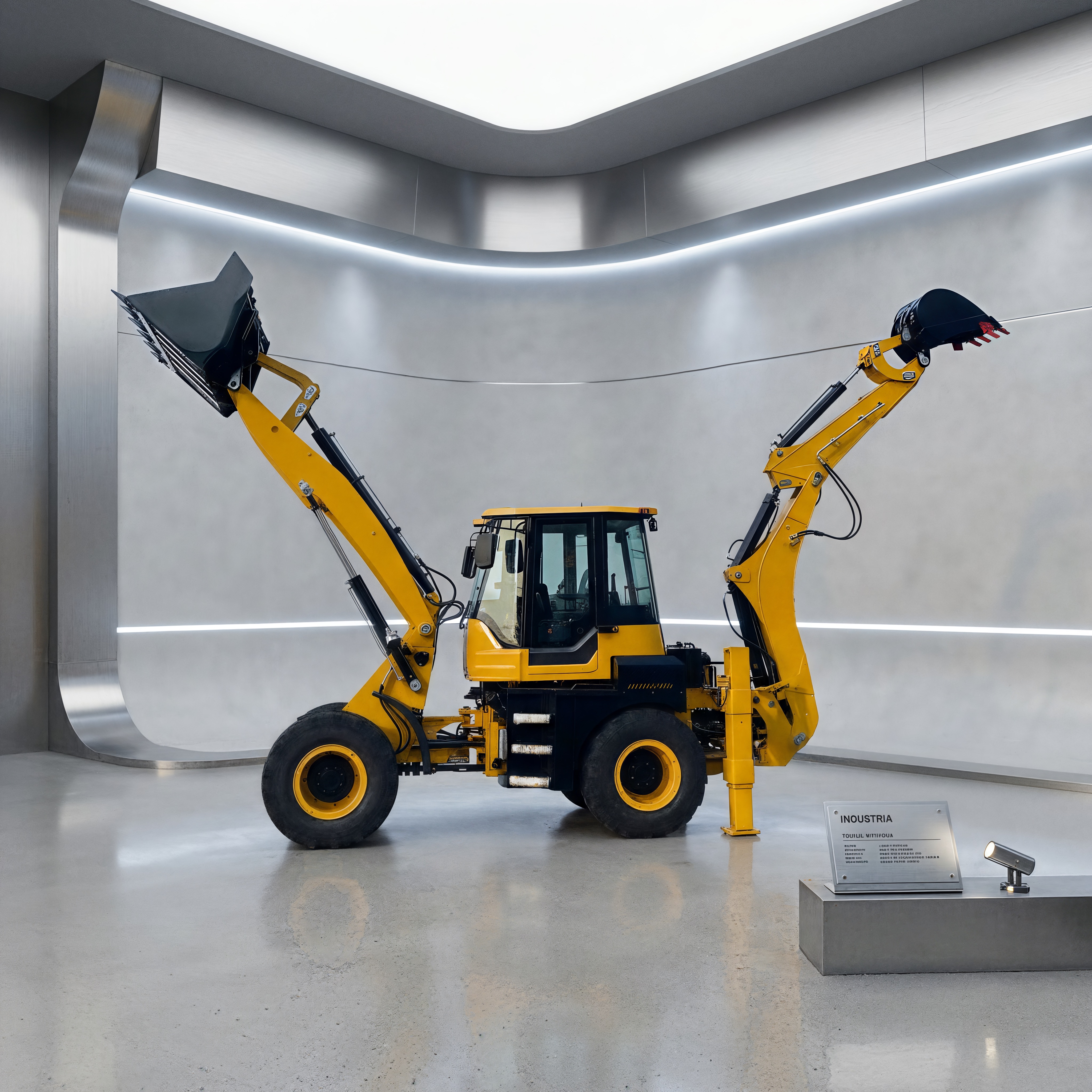

FORLOAD brand WZ30-25 backhoe wheel loader is one multi-function earthmoving machines, combined function of loading and digging. More than 10units all kinds of attachment could be used on front and rear end, including hammer, drill, forks, grass grab, 4in1 bucket, 6in1 bucket, sweeper, snow blower etc.
And much suitable for small construction project and municipal Engineering.
Main parameters:
Overall Operating Weight | 6600KG |
Transport Dimension |
L*W*H | 7600×2100×2900mm |
Wheelbase | 2250mm |
Min. Ground Clearance | 300mm |
Bucket Capacity | 1.3m3 |
Loading Lifting Capacity | 2500KG |
Bucket Dumping Height | 3500mm |
Backhoe Capacity | 0.3m3 |
Max. Digging Depth | 4082mm |
Swing Angle of backhoe | 170o |
Engine |
Model | YUNNEI YN38GBZ turbo engine |
Rated Power | 76KW |
Rated Speed | 2400r/min |
Tire |
Model | 16/70-20 |
Pressure of Front wheel | 0.22 Mpa |
Pressure of Back Wheel | 0.22 Mpa |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
