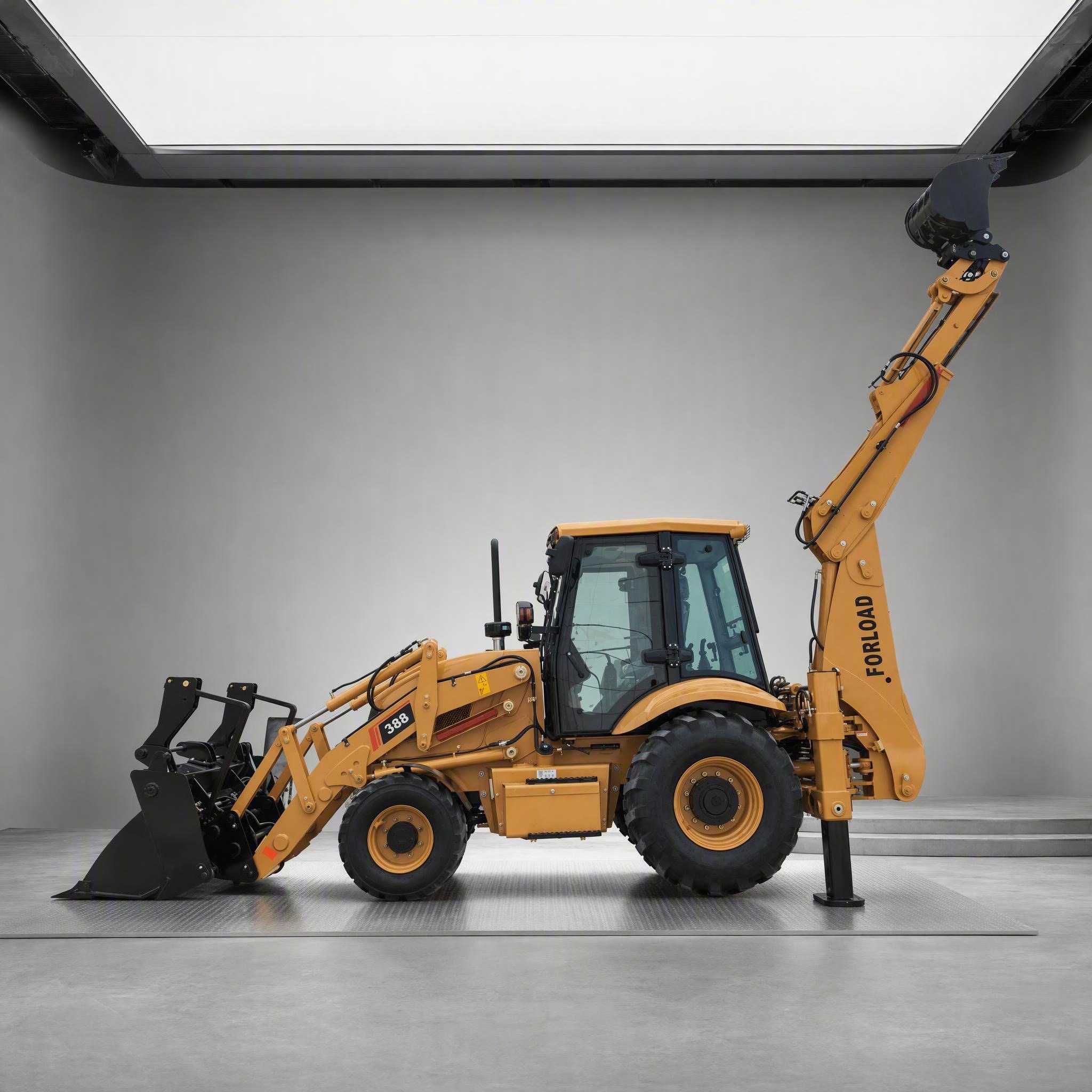

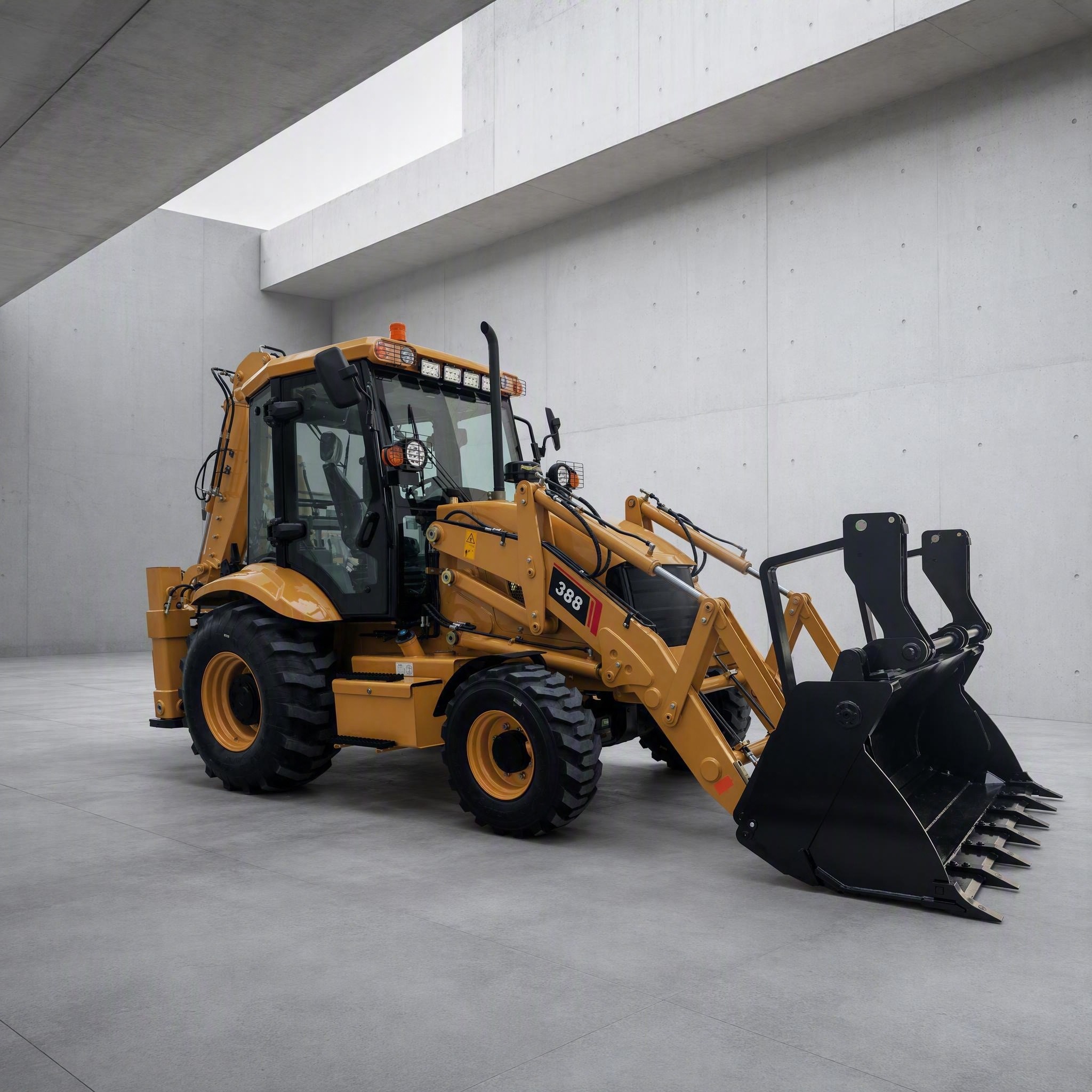

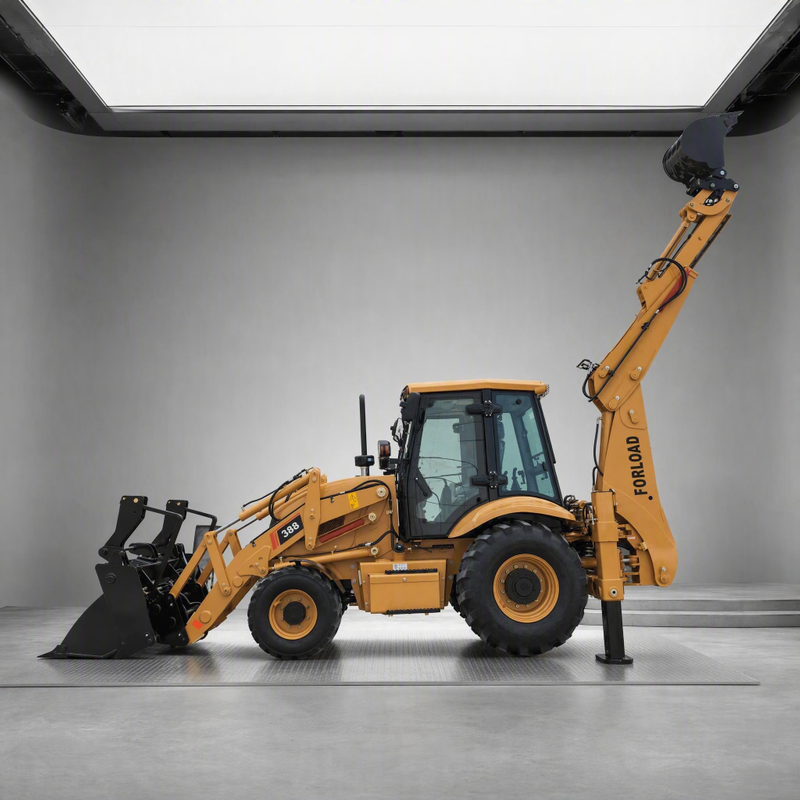

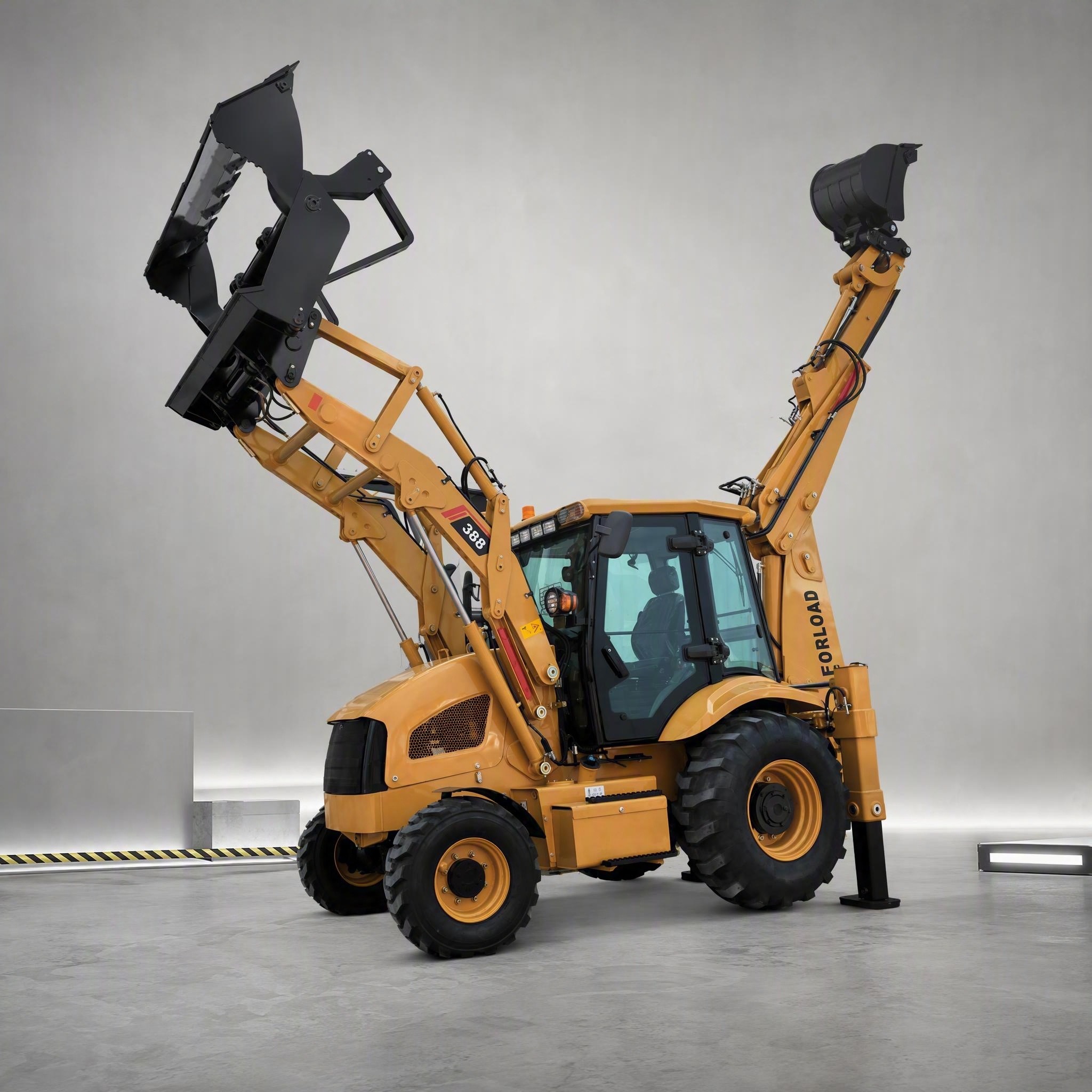

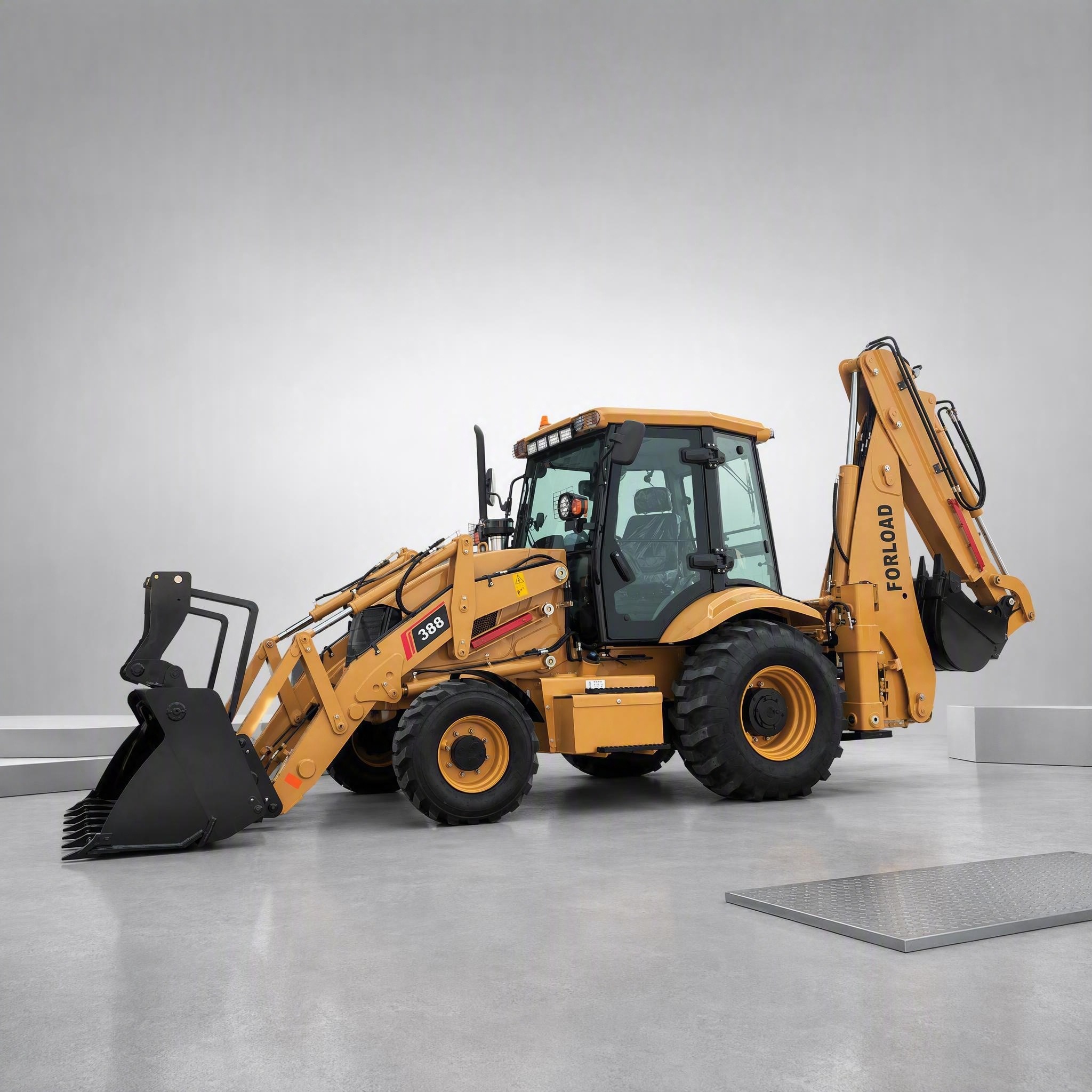

FL388
FORLOAD
8429510000
| Availability: | |
|---|---|
| Quantity: | |
Main features:
1-The use of high-reliability hydraulic torque converter and gearbox to provide superpower, aggravated the smooth and high reliability of the dedicated bridge walking.
2-Combine the excavator and the loader into one machine, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30%.
3-Digging, loading function all controlled through joystick, light and flexible, high operating efficiency.
4-Humanized design rotating vibration damping seat, high-end cabin, wider vision, more comfortable driving.
5-The full hydraulic lateral slip mechanism is adopted in the excavation, which saves time and labor, and makes the digging operation scope larger and the efficiency higher.
6-The design of the front flap shield greatly improves the maintainability of the whole machine.
7-A variety of accessories can be selected to complete a variety of construction operations. Used in municipal, construction, water conservancy, highway, water supply, power supply, garden and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations.
Main parameters:
Overall dimension | Operating weight | 8200KG |
Overall size (L*W*H) | 6120x2410x3763mm | |
Wheelbase | 2248mm | |
Min. ground clearance | 300mm | |
Performance | Loader bucket capacity | 1.0m3 |
Loader breakout force | 38KN | |
Loader lifting capacity | 2500KG | |
Loader dump height | 2742mm | |
Loader dump reach | 925mm | |
Loader digging depth | 52mm | |
Backhoe bucket capacity | 0.3m3 | |
Backhoe bucket digging force | 50KN | |
Backhoe swing angle | 1900 | |
Backhoe max. digging depth | 3967/3424mm | |
Max. traction force | 39KN | |
Engine | Model | YUCHAI, YCD4M22T-110 |
Type | Inline, direct injection, water cooled, turbocharged, 4-stroke | |
Cylinder-inner diameter*stroke | 4-108*132 | |
Rated power | 81kw | |
Rated speed | 2200r/min | |
Min. fuel consumption | 230g/kw.h | |
Max. torque | 400N.m | |
Displacement | 4.8L | |
Steering system | Type | Hydraulic steering |
Diverter model | BZZ5-250 | |
Pump capacity | 63ml/r | |
Steering angle | ±360 | |
Min. turning radius | 6581mm | |
Driving axle | Model | WZZD75D |
Manufacturer | YUNYU | |
Max. loading of front axle | 8.0T | |
Max. loading of rear axle | 18.5T | |
Transmission | Gearbox | Fixed shaft power transmission |
Gears | 4 forward and 4 reverse | |
Hydraulic torque converter | YJ280 | |
Cooling mode | Oil-cooling pressure circulation | |
Max. speed | 38km/h | |
Tire | Front/rear model | 14-17.5, 19.5L-24 |
Front tire pressure | 0.4MPA | |
Rear tire pressure | 0.35MPA |
The above information, specifications and images may differ from actual vehicle and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
