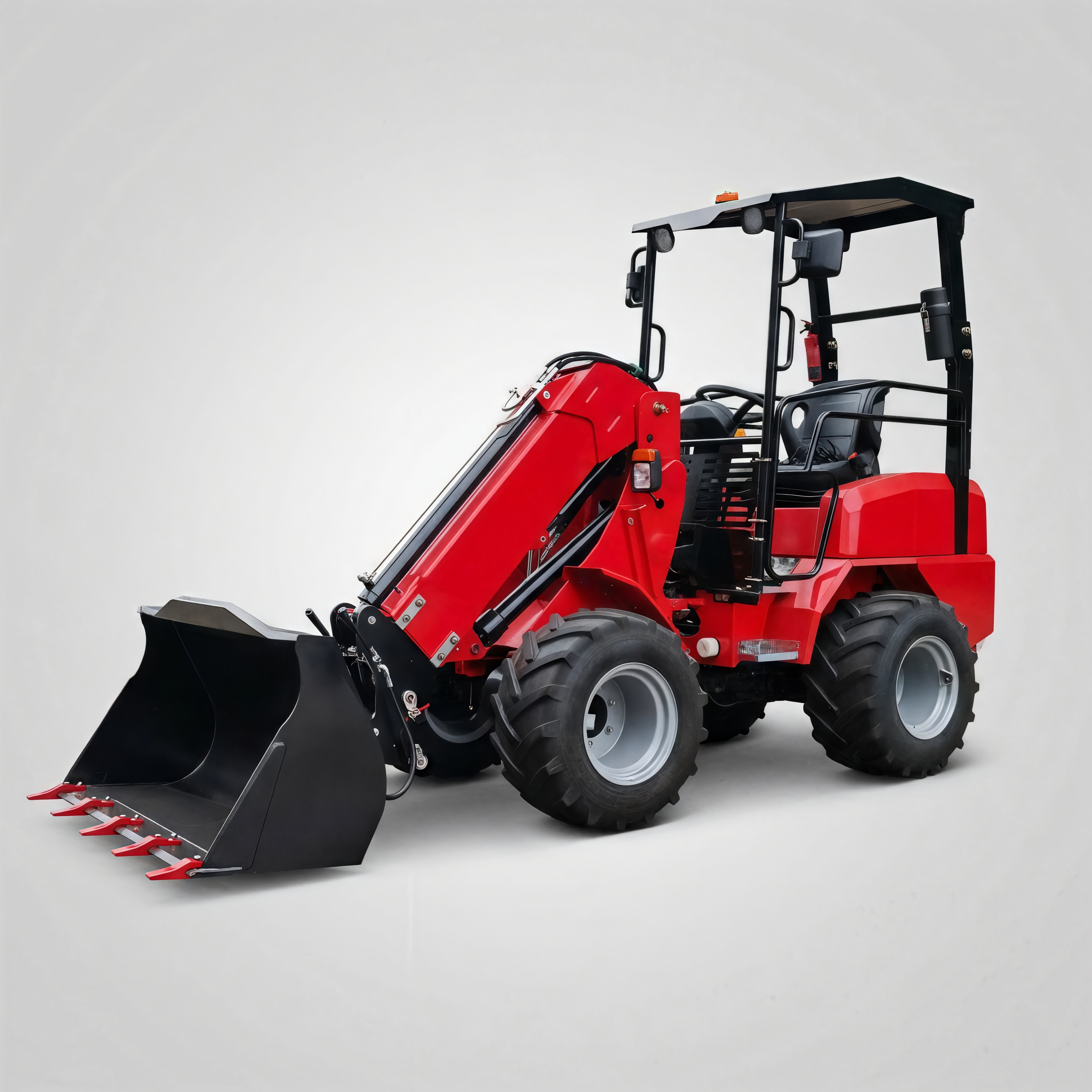

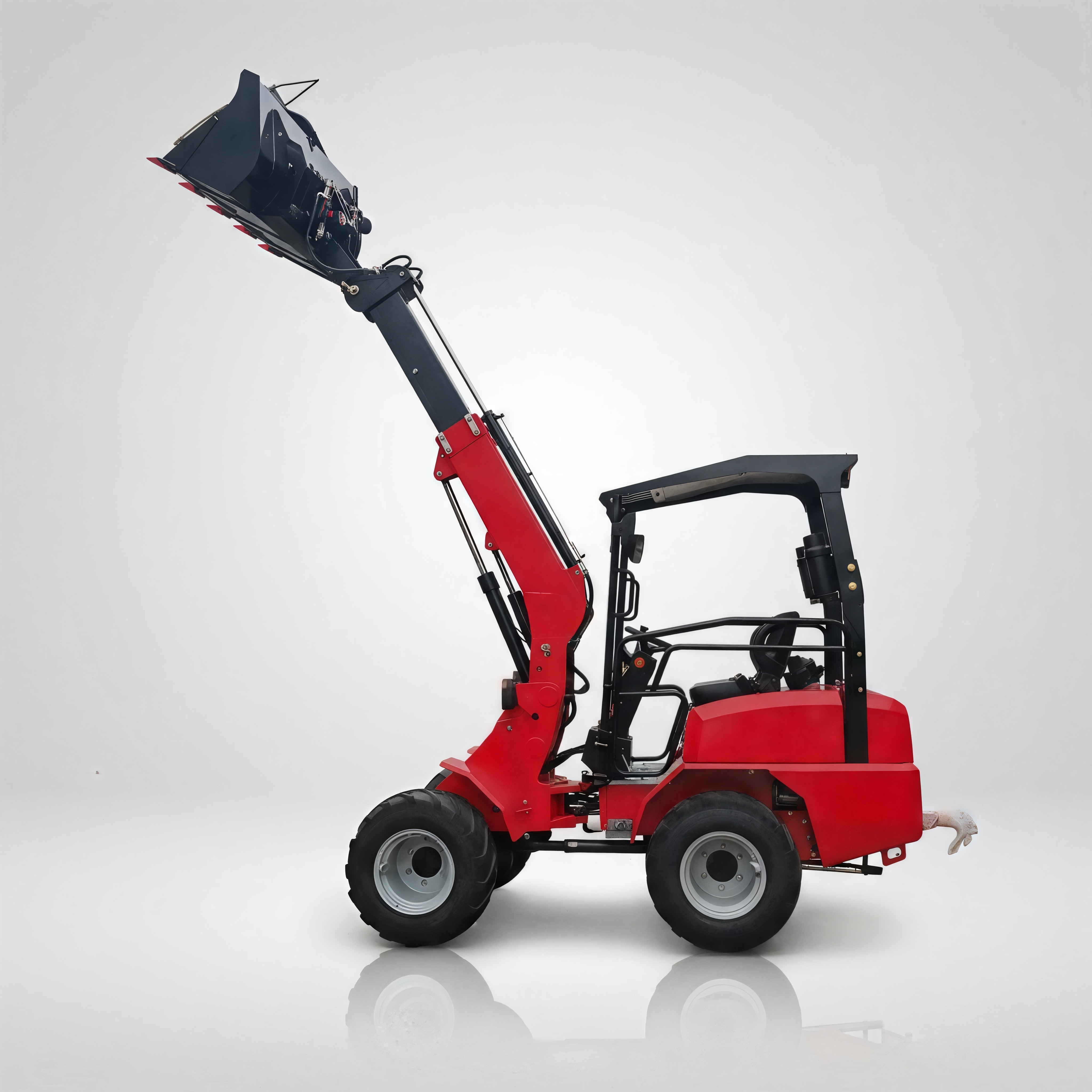

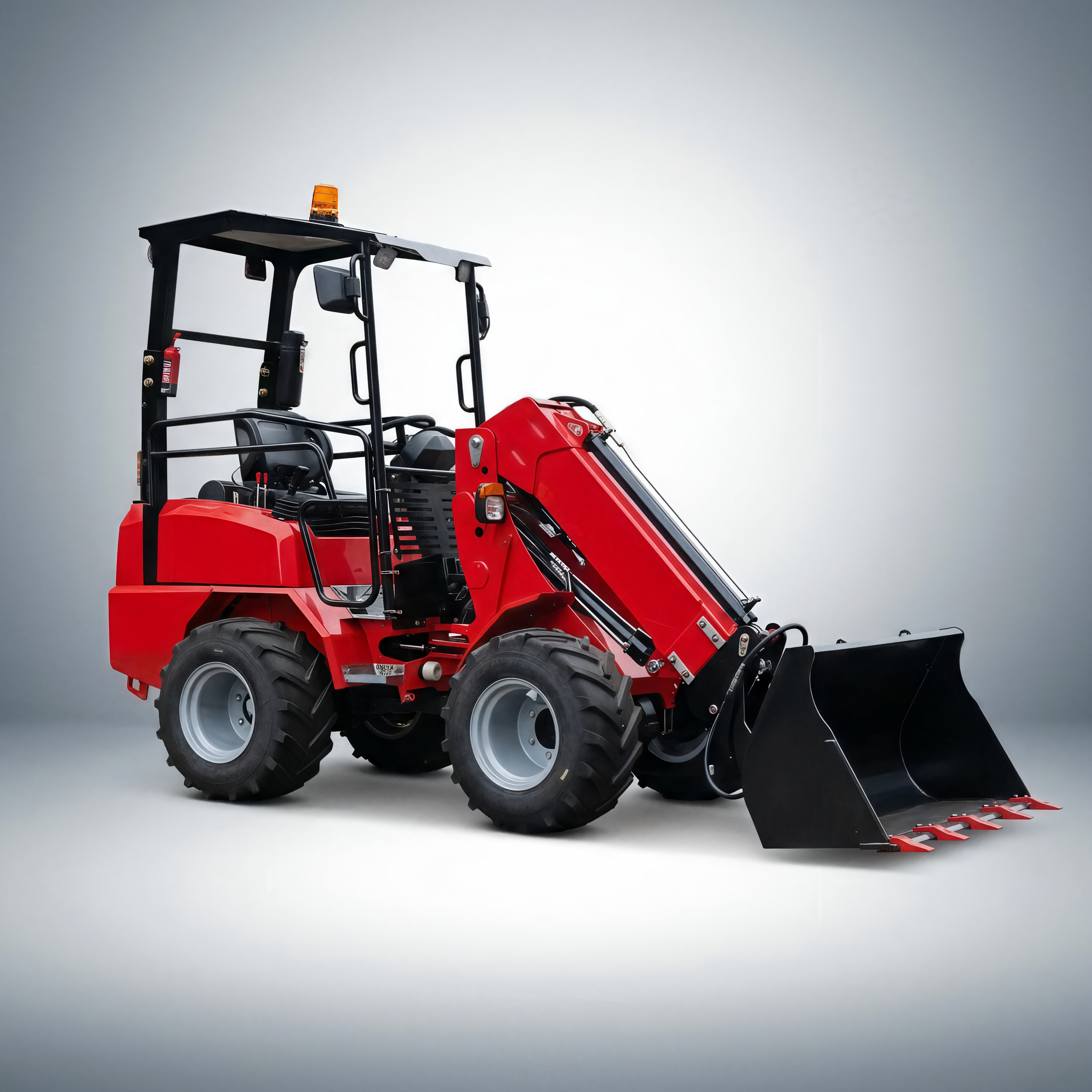

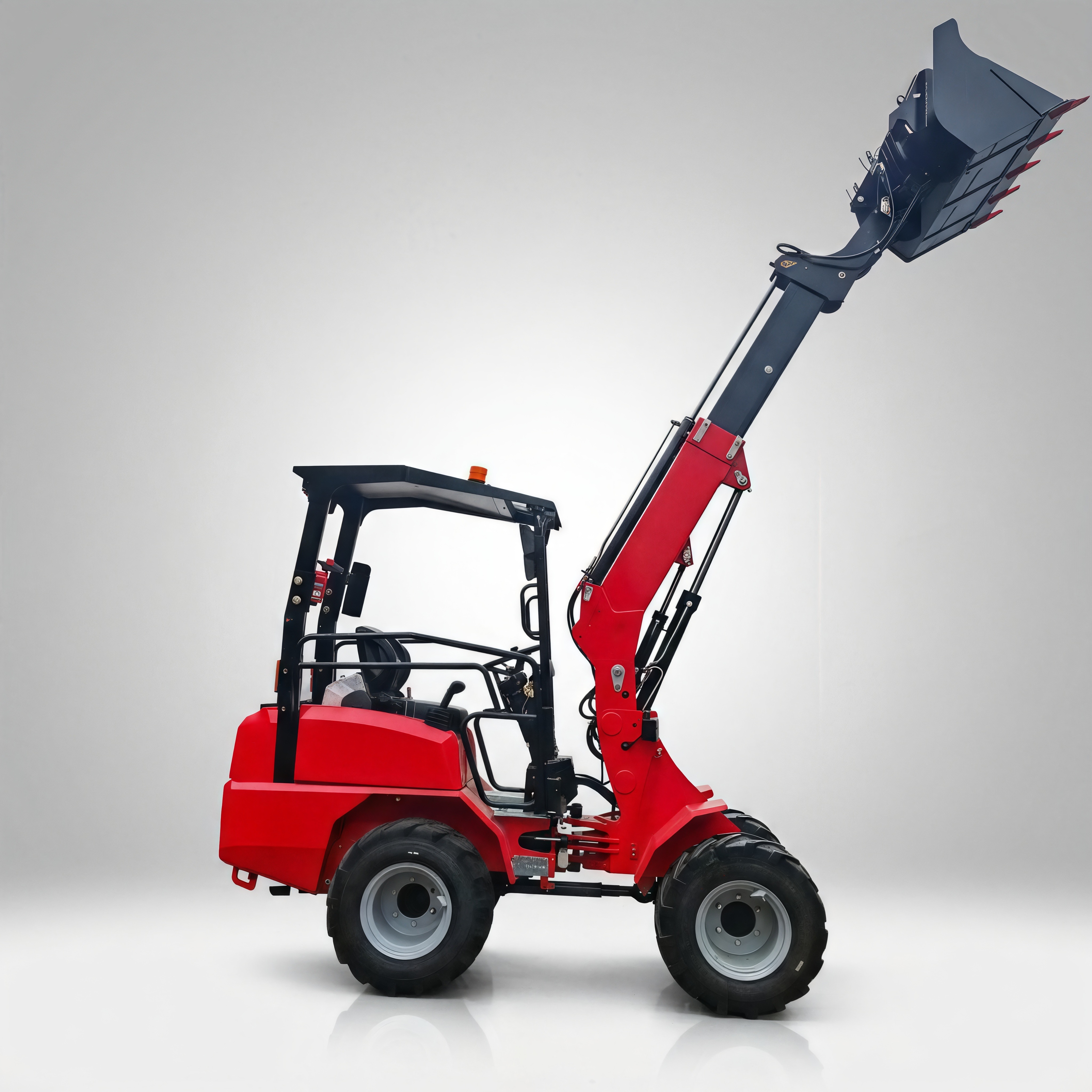

T180 model mini telescopic wheel loader, designed for farm yard and livestock farm.
It is with hydrostatic hydraulic system, anti-tip frame, electric driving, hydraulic control telescopic and quick hitch.
Also could install closed cabin with air conditioner according to client’s demand.
Regarding engine optional, meets EURO2, EURO5 and EPA4, including Laidong brand engine, Yanmar engine, Kubota engine, Perkins engine.
Main parameters:
Rated Load | 800kg |
Bucket Capacity | 0.3m3 |
Lifting Height of main boom | 3300mm |
Dumping Height of main boom ( dumping angle 45°) | 2445mm |
Dumping reach of main boom | 960mm |
Max. Loading capacity of main boom | 1000kg |
Lifting height of small boom | 3900mm |
Dumping height of small boom (dumping angle 45°) | 3115mm |
Dumping reach of small boom | 1600mm |
Max. Loading capacity of small boom | 600kg |
Overall length (bucket on ground position) | 3820mm |
Overall width | 1260mm |
Overall Height | 2310mm |
Operation weight | 2100kg |
Engine model | LAIDONG KM385B |
Rated Power | 29kw |
Tire size | 10.0/75-15.3 |
The above information, specifications and images may be different from actual machines and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
