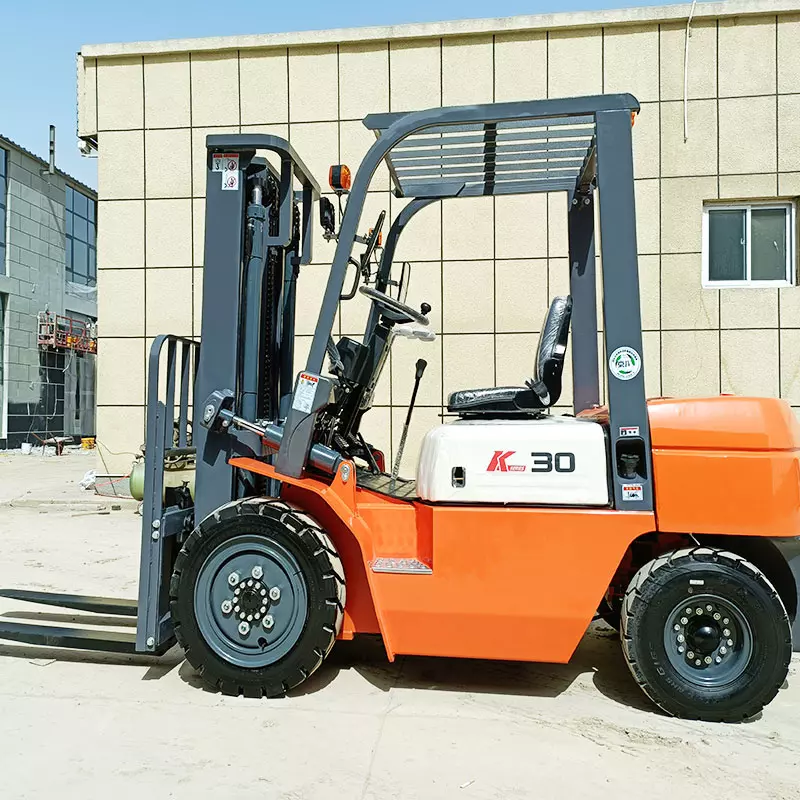

china 3ton diesel forklift
Date：
2025-06-09
Features
FORLOAD diesel forklift adopts the streamline design that makes the appearance more pleasing, using domestic well-known engine brand which is powerful, dependable, easy to service, and with low emissions and fuel consumption.
Could make 2 stage mast and triplex stage with 4.5m/5m/6m lifting height, side shift, solid tires, closed cabin and ISUZU/YANMAR/MITSUBISHI engine all optional.
Main parameter
| Model | CPC30 (K30) |
| Power type | Diesel |
| Rated loading capacity | 3000kgs |
| Loading center | 500mm |
| Lifting height | 3000mm |
| Fork size | 1070x125x45mm |
| Mast tilt angle | 60/120 |
| Min. turning radius | 2400mm |
| Min. ground clearance | 135mm |
| Overhead guard height | 2160mm |
| Max. speed | 20km/h |
| Max. lifting speed | 480mm/m |
| Max. traction power | 13.5kn |
| Max. gradeability | 20% |
| Length with fork | 3820mm |
| Length without fork | 2750mm |
| Width | 1225mm |
| Mast extended height | 4265mm |
| Mast lowered height | 2060mm |
| Front tire | 28x9-15-12PR |
| Rear tire | 6.50-10-10PR |
| wheelbase | 1700mm |
| Service weight | 4350kgs |
| Engine | XINCHAI 4D27G31 (or XINCHAI 490) |
| Engine power | 36.8kw (40KW) |
| Working pressure | 18.5Mpa |
The above information, specifications and images may differ from actual vehicle and may be changed without prior notice for performance improvement. Please contact our sales office for exact model option and specification.
FORLOAD reserves the right to change specifications and equipment without notice to suit local conditions and requirements.
Engineered for performance and durability, the 3ton diesel forklift offers reliable lifting and transport of materials in harsh working conditions. With a strong diesel engine and hydraulic system, this forklift ensures smooth lifting, tilting, and maneuvering of loads up to 3 tons. The 3ton diesel forklift is built to meet the needs of heavy industry, offering dependable performance and low operating costs.
Its ergonomic design includes a comfortable seat, intuitive dashboard, and vibration-reduction features to enhance operator productivity. The 3ton diesel forklift also includes safety features such as overload protection, LED lighting, and backup alarms, ensuring safe operation even in low-light environments.
Whether in ports, warehouses, or outdoor yards, the 3ton diesel forklift provides the strength and stability needed to keep operations running smoothly. With a focus on efficiency and reliability, it is the ideal choice for businesses seeking dependable heavy-lift solutions.
