| Quantity: | |
|---|---|

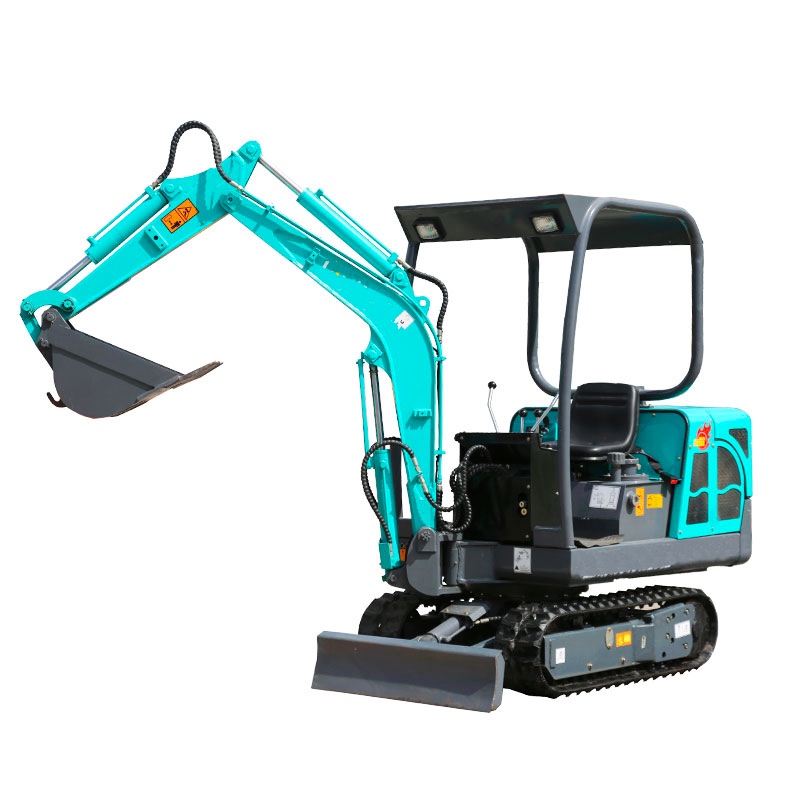

Model | TBE30B |
Operating mode | Hydraulic lever |
Operating weight | 3000 kg |
Bucket capacity | 0.12 cbm |
Bucket width | 540mm (any size can be customized) |
Engine | Changchai ZN490, 20kw/2200r/min |
Pump | FUTAI 312 |
Valve | HUSCO（USA） |
Walking motor | EASTON OMB130 (USA) |
Rotary motor | EASTON SW2.5K-195 (USA) |
Cylinder | Three-cylinder, Water cooling |
Walking speed | 2.9km/h |
Track type | Rubber Track |
Closed cab | No |
Climb ability | 35º |
Bucket digging force | 18 kn |
Arm digging force | 14.1 kn |
Physical Size | |
Total (length*width*height) | 4150x1350x2300 mm |
Track length*width | 1830mm*280mm |
Platform ground distance | 550 mm |
Chassis width | 1250 mm |
Working Range | |
Max. digging depth | 2920 mm |
Max. digging height | 4010 mm |
Max. digging radius | 4450 mm |
Min. radius of gyration | 1975 mm |
Optional: closed cabin, air conditioner, quick hitch, Yanmar engine etc. | |
With continue updating design, we reserve the right to change the parameters and design without prior notice.
1-Streamlined appearance design, low fuel consumption and wide operating range.
2-Have CE certificate meet European market request.
3-Much suitable for loosing soil of vegetable greenhouse, campus greening of municipal departments, digging the hole for tree, planting of fruit-land nurseries, concrete pavement crushing, sand-gravel material mixing, construction working in narrow place and so on.
4-Optional hydraulic quick hitch, hammer, ripper, auger, thumb, different size buckets.
Model | TBE30B |
Operating mode | Hydraulic lever |
Operating weight | 3000 kg |
Bucket capacity | 0.12 cbm |
Bucket width | 540mm (any size can be customized) |
Engine | Changchai ZN490, 20kw/2200r/min |
Pump | FUTAI 312 |
Valve | HUSCO（USA） |
Walking motor | EASTON OMB130 (USA) |
Rotary motor | EASTON SW2.5K-195 (USA) |
Cylinder | Three-cylinder, Water cooling |
Walking speed | 2.9km/h |
Track type | Rubber Track |
Closed cab | No |
Climb ability | 35º |
Bucket digging force | 18 kn |
Arm digging force | 14.1 kn |
Physical Size | |
Total (length*width*height) | 4150x1350x2300 mm |
Track length*width | 1830mm*280mm |
Platform ground distance | 550 mm |
Chassis width | 1250 mm |
Working Range | |
Max. digging depth | 2920 mm |
Max. digging height | 4010 mm |
Max. digging radius | 4450 mm |
Min. radius of gyration | 1975 mm |
Optional: closed cabin, air conditioner, quick hitch, Yanmar engine etc. | |
With continue updating design, we reserve the right to change the parameters and design without prior notice.
1-Streamlined appearance design, low fuel consumption and wide operating range.
2-Have CE certificate meet European market request.
3-Much suitable for loosing soil of vegetable greenhouse, campus greening of municipal departments, digging the hole for tree, planting of fruit-land nurseries, concrete pavement crushing, sand-gravel material mixing, construction working in narrow place and so on.
4-Optional hydraulic quick hitch, hammer, ripper, auger, thumb, different size buckets.
