| Quantity: | |
|---|---|
1 |
Overall dimension (L*W*H) |
mm | 4620*1440*2590 with bucket |
4010*1440*2590 without bucket | |||
2 | Wheel base | mm | 1150 |
3 | Tread base | mm | 1890 |
4 | Max. dumping height | mm | 2250 |
5 | Max. dump distance | mm | 850 |
6 | Max. discharging angle | 。 | 35 |
7 | Max. turning angle | 。 | 35 |
8 | Seat height | mm | 1600 |
9 | Min. ground clearance | mm | 1600 |
10 | Min turning radius | mm | 3200mm |
11 | Time in total | S | 8 |

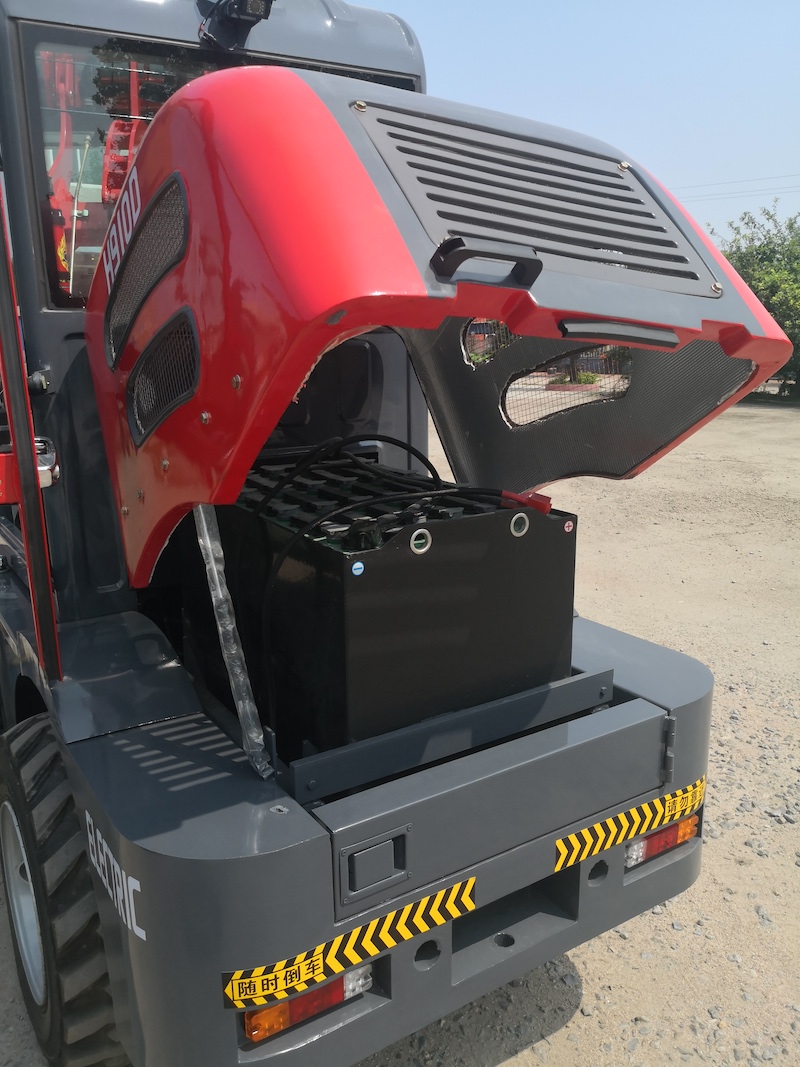

12 | Battery & capacity | AH V | 400AH 48V |
13 | Moving motor | Kw | 11Kw |
14 | Lifting motor | Kw | 10Kw |
15 | Tire | 10-16.5 | |
16 | Working time | H | 8~9 hours |
17 | Whole weight | Kg | 3100Kg |
18 | Rated load | Kg | 800-1000Kg |
