| Quantity: | |
|---|---|
1-Streamlined appearance design, elegant and generous.
2-Fully hydraulic steering system, joystick control to make sure easily operation.
3-Rops/Fops cabin, equipment air suspension seat, heater, warning lamp, reverse camera; the operating environment is more comfortable.
4-Optional quick hitch to make sure can use different accessories and meet different working usage: pallet fork, 4in1 bucket, high dump bucket, wood/grass grab, snow blower, snow V-blade, sweeper, snow bucket with hydraulic wing, hammer etc.
5-Different brand engine, air conditioner are optional.

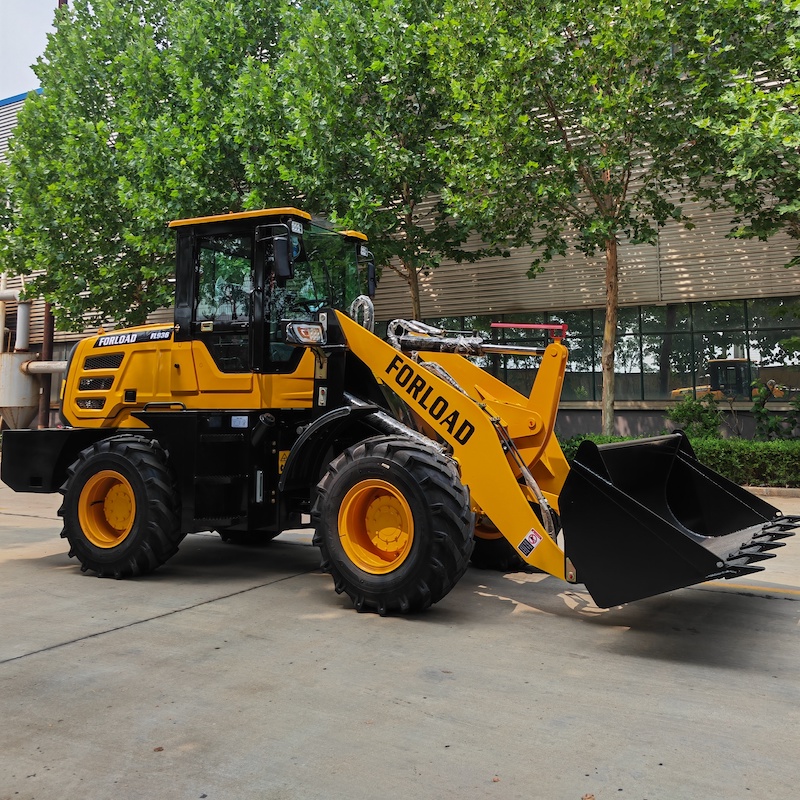

Model | FL936 | |
General Performance | Operation weight | 5100kgs |
Rated load | 1800kgs | |
Overall dimension (L*W*H) | 6160*1950*2850mm | |
Wheel track | 1560mm | |
Wheel base | 2420mm | |
Turning radius | 4650mm | |
Min. ground clearance | 300mm | |
Max.travel speed | 35km/h | |
Bucket Performance | Standard bucket capacity | 0.8 m³ |
Bucket width | 2000mm | |
Dumping height | 3500mm | |
Dumping distance | 1000mm | |
Transmission type | Torque converter type | 265B model, Hydraulic joystick control |
Gearshift | Two forward, two reverse | |
Engine | Model | Yunnei YN33GBZ |
Power | 65kw | |
Number of cylinders | 4 | |
Drive system | Drive type | 4WD |
Brake type | Air brake on four wheels | |
Drive axle type | Wheel hub reduction | |
Tire size | 16/70-20 | |
1-Streamlined appearance design, elegant and generous.
2-Fully hydraulic steering system, joystick control to make sure easily operation.
3-Rops/Fops cabin, equipment air suspension seat, heater, warning lamp, reverse camera; the operating environment is more comfortable.
4-Optional quick hitch to make sure can use different accessories and meet different working usage: pallet fork, 4in1 bucket, high dump bucket, wood/grass grab, snow blower, snow V-blade, sweeper, snow bucket with hydraulic wing, hammer etc.
5-Different brand engine, air conditioner are optional.
Model | FL936 | |
General Performance | Operation weight | 5100kgs |
Rated load | 1800kgs | |
Overall dimension (L*W*H) | 6160*1950*2850mm | |
Wheel track | 1560mm | |
Wheel base | 2420mm | |
Turning radius | 4650mm | |
Min. ground clearance | 300mm | |
Max.travel speed | 35km/h | |
Bucket Performance | Standard bucket capacity | 0.8 m³ |
Bucket width | 2000mm | |
Dumping height | 3500mm | |
Dumping distance | 1000mm | |
Transmission type | Torque converter type | 265B model, Hydraulic joystick control |
Gearshift | Two forward, two reverse | |
Engine | Model | Yunnei YN33GBZ |
Power | 65kw | |
Number of cylinders | 4 | |
Drive system | Drive type | 4WD |
Brake type | Air brake on four wheels | |
Drive axle type | Wheel hub reduction | |
Tire size | 16/70-20 | |
