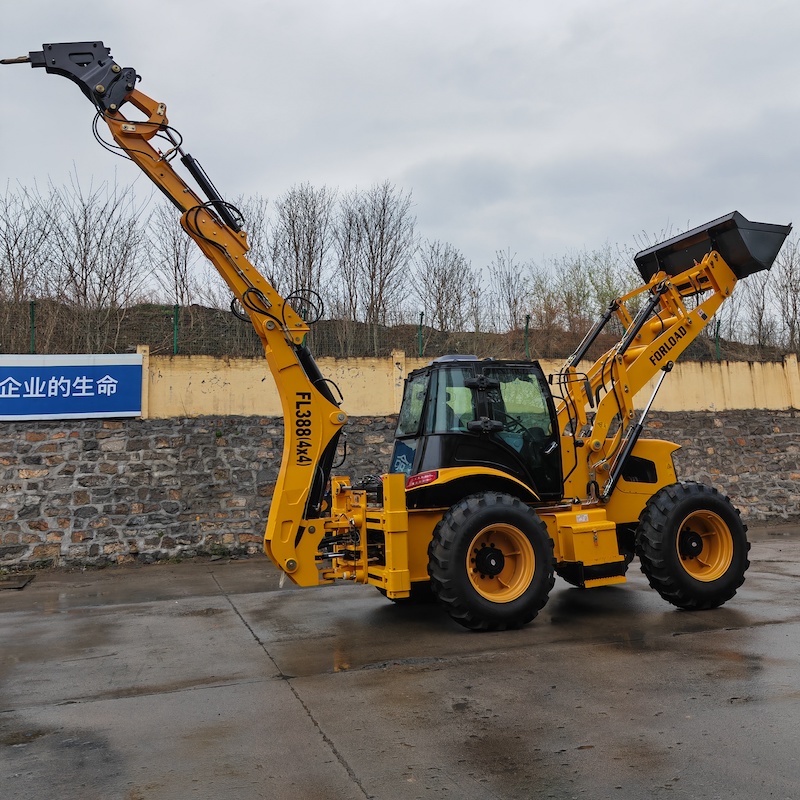

FL388H4 backhoe wheel loader of four wheel steering model

Overall dimension (L*W*H)

5920×2250×3770mm

Wheelbase

2200mm

Min. Ground Clearance

500mm

Bucket Capacity

1.0m³

Loading Lifting Capacity

2500KG

Bucket Dumping Height

2742mm

Bucket Dumping Distance

925mm

Digging Depth

52mm

Backhoe Capacity

0.3 m³

Max. Digging Depth

4082/4500mm

Swing Angle of Excavator Grab

190^o

Engine

Model

YCD4J22T-125

Type

In Line Direct Injection Four-Stroke and Injection Combustion Chamber

Cylinder-Inside Diameter*Stroke

4-102×120

Rated Power

91KW

Steering System

Model of Steering Device

BZZ5-250

Steering Angle

±36 ^o

Min. turning radius

6581mm

Axle

Manufacturer

YUNYU, four steering type axle

Main Transmission Type

Double Reduction

Final Reducer

Single Stage Final Reducer

Rated Loader of Axle

8/18.5t

Transmission System

Torque converter model

YJ280

Type

Single-stage Three Elements

Gearbox

Type

Fixed Shaft Power Transmission

Gears

Two Gears forward, Two Gears reverse

Max. Speed

30Km/h

Tire size

16.9-28
