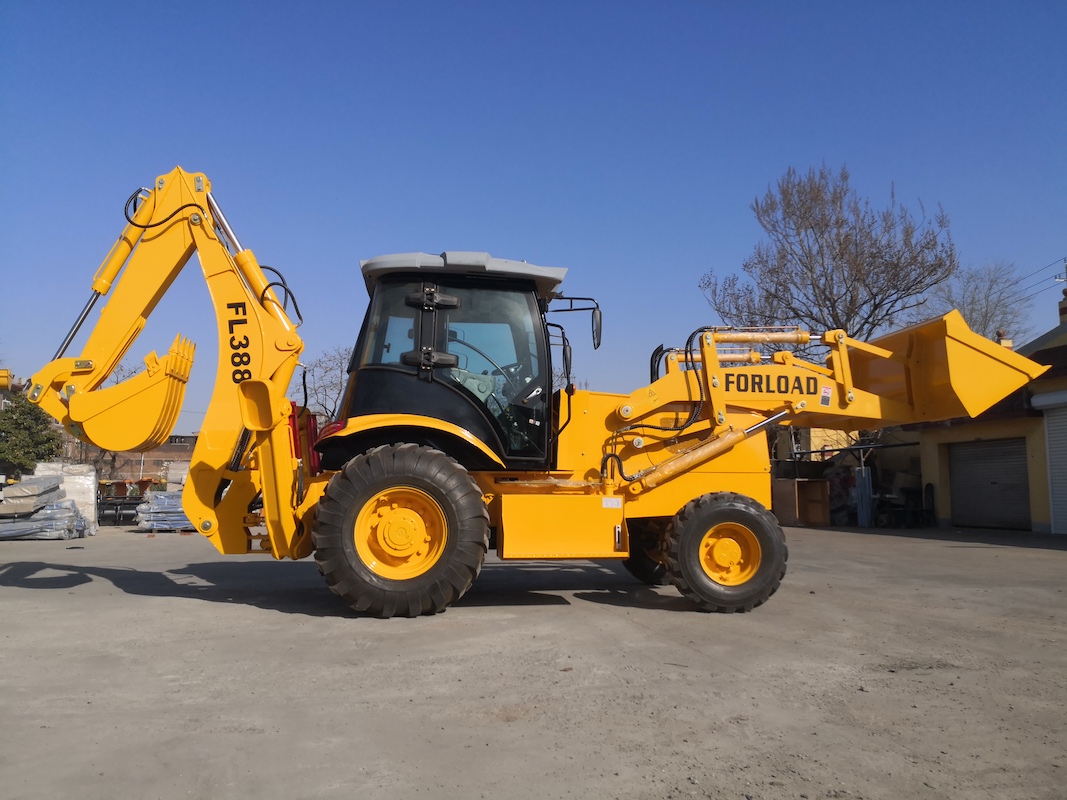

FL388
FORLOAD
8429510000
1-The engine is YUCHAI 85kw, (also optional DF CUMMINES engine), high reliability of the hydraulic torque converter and transmission to provide superpower, increase engineering special bridge walk smoothly and high reliability.
2-One machine can completely have all the features of the small excavators and loaders, more suitable for the narrow space, convenient and flexible.
3-Mining, loading all the pilot control function, lightweight flexible, high work efficiency.
Humanized design rotating vibration damping seat full toughened glass molding cab, grander vision, driving more comfortable
4-Lateral sliding mechanism of the available device, make the digging work scope is larger and more efficient
5-With differential, wet brake drive axle has greatly increased the traction performance and vehicle safety performance of the machine.
6-the support leg could choose to use A type or H type.
Overall Operating Weight | 8000KG |
Transport Dimension | |
Overall size L*W*H | 6800×2390×2890mm |
Wheelbase | 2250mm |
Bucket Capacity | 1.3m3 |
Breakout Force | 38KN |
Loading Lifting Capacity | 2800KG |
Bucket Dumping Height | 2800mm |
Bucket Dumping Distance | 1062mm |
Digging Depth | 52mm |
Backhoe Capacity（Width） | 0.35m3 (620mm) |
Max. Digging Depth | 4100mm |
Swing Angle of backhoe | 190o |
Max. Pulling Force | 39KN |
Engine | |
Model | YUCHAI 4105 Turbo |
Type | In Line，Direct injection，Four-Stroke，Water Cooling |
Rated Power | 85KW |
Steering System | |
Steering Angle | ±36 o |
Min. turning radius | 6581mm |
Pressure of the system | 12Mpa |
Axle | |
Brand | YUNYU |
Main Transmission Type | Double Reduction |
Final Reducer | Single Stage Final Reducer |
Rated Loader of Axle | 4/18.5t |
Torque Converter | |
Model | YJ280 |
Type | Single-stage Three Elements |
Gearbox | |
Type | Fixed Shaft Power Transmission |
Gears | Two Gears Ahead, Two Gears Astern |
Max. Speed | 30Km/h |
Tire Size | Front tire 14-17.5 Rear tire 19.5L-24 |
The parameters or configuration are subject to change without notice. | |
