FCA802
FORLOAD
8429119000

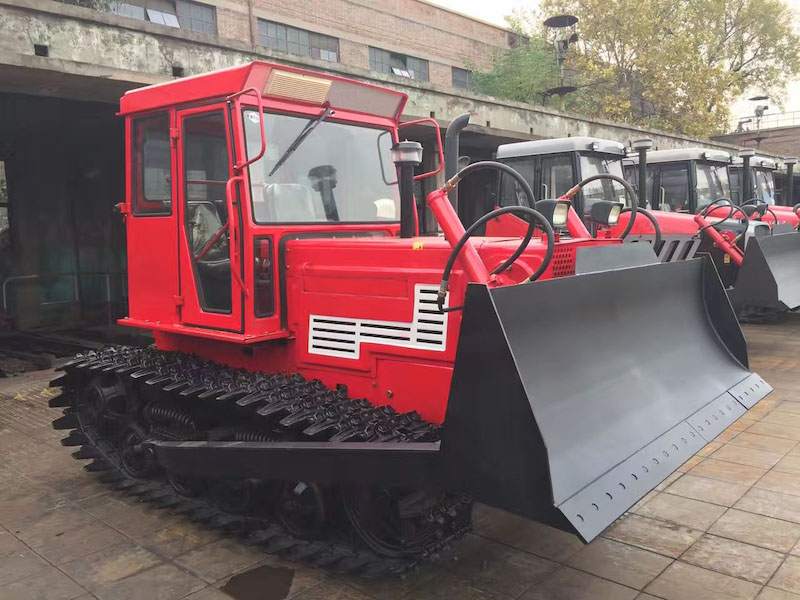

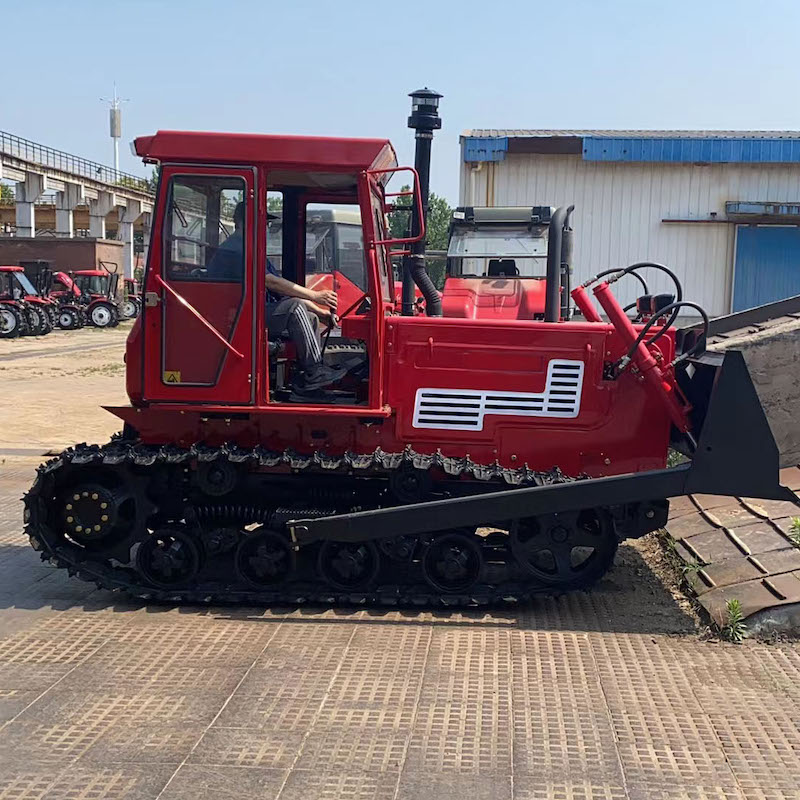

This crawler tractor dozer has a box-section welded frame, triangular block-type hydraulic adjusting guiding and tension device to make sure desirable cushion performance.
The swinging type traction system can burden a relatively heavier traction load. The hydraulic system has three groups of hydraulic output points, which can meet the aligned requirements. The tractor has demonstrated good operational performance in paddy field and dry lowland.
| Model | FCA802 | FCA1002 |
| Dimension (LxWxH) | 4466x2140x2700mm | 4650x2140x2940mm |
| 4870x2462x2700mm (with front blade) | 4800x2462x2940mm (with front blade) | |
| Minimum operation weight | 6300kgs | 6900kgs |
| Track | 1435mm | 1435mm |
| Chain length | 1792mm | 1792mm |
| Chain width | 390mm | 390mm |
| Average ground pressure | 47.7kPa (with front blade) | 48kPa (with front blade) |
| Engine model | LR4V5U22/0588E (YTO brand) | LR6B5U22/0735E (YTO brand) |
| Rated power | 58.8kw at 2200 rpm | 73.5kw at 2200 rpm |
| Hydraulic suspension mechanism | Hinge lever type, could adjust to two-point or three-point type suspension. | Hinge lever type, could adjust to two-point or three-point type suspension. |
| Suspension shaft maximum capacity | 12.8kN | 14kN |
| Front blade type | Fixed straight blade | Fixed straight blade |
| Blade size (HxW) | 850x2462mm | 850x2462mm |
| Blade working depth | ≥290mm | ≥330mm |
| Blade maximum lifting height | ≥625mm | ≥700mm |
This crawler tractor dozer has a box-section welded frame, triangular block-type hydraulic adjusting guiding and tension device to make sure desirable cushion performance.
The swinging type traction system can burden a relatively heavier traction load. The hydraulic system has three groups of hydraulic output points, which can meet the aligned requirements. The tractor has demonstrated good operational performance in paddy field and dry lowland.
| Model | FCA802 | FCA1002 |
| Dimension (LxWxH) | 4466x2140x2700mm | 4650x2140x2940mm |
| 4870x2462x2700mm (with front blade) | 4800x2462x2940mm (with front blade) | |
| Minimum operation weight | 6300kgs | 6900kgs |
| Track | 1435mm | 1435mm |
| Chain length | 1792mm | 1792mm |
| Chain width | 390mm | 390mm |
| Average ground pressure | 47.7kPa (with front blade) | 48kPa (with front blade) |
| Engine model | LR4V5U22/0588E (YTO brand) | LR6B5U22/0735E (YTO brand) |
| Rated power | 58.8kw at 2200 rpm | 73.5kw at 2200 rpm |
| Hydraulic suspension mechanism | Hinge lever type, could adjust to two-point or three-point type suspension. | Hinge lever type, could adjust to two-point or three-point type suspension. |
| Suspension shaft maximum capacity | 12.8kN | 14kN |
| Front blade type | Fixed straight blade | Fixed straight blade |
| Blade size (HxW) | 850x2462mm | 850x2462mm |
| Blade working depth | ≥290mm | ≥330mm |
| Blade maximum lifting height | ≥625mm | ≥700mm |
