| Quantity: | |
|---|---|

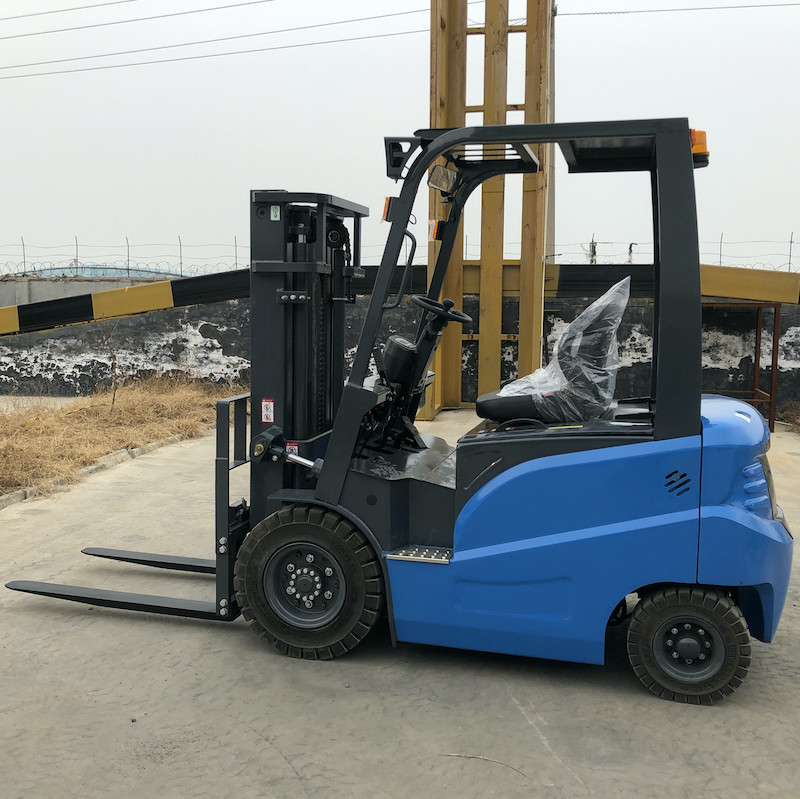

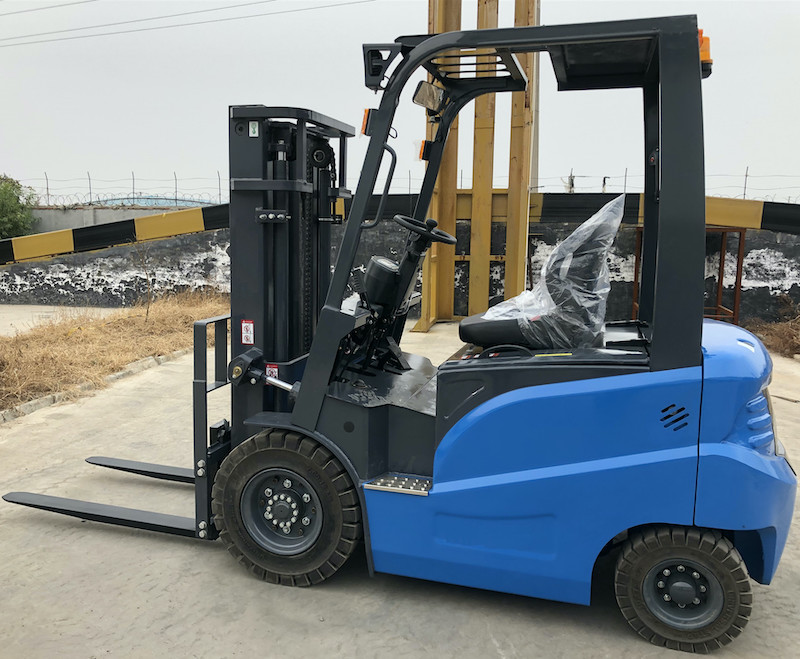

CPD20
FORLOAD
8427109000
Model | CPD20 | |
Power type | Lead-acid type battery | |
Rated load | 2000kgs | |
Load center distance | 500mm | |
Driving type | Seat | |
Length | With fork | 3380mm |
Without fork | 2310mm | |
Whole Width | 1150mm | |
Height | Height no lifting frame | 2000mm |
Top frame height | 2145mm | |
Max Height working | 3995mm | |
Distance from seat to top light | 1020mm | |
Wheelbase | 1515mm | |
Front overhang | 483mm | |
Back overhang | 400mm | |
Front wheel tread | 970mm | |
Back wheel tread | 950mm | |
Min Floor clearance | 135mm | |
Max lifting height | 3000mm | |
Free lifting height | 170mm | |
Fork changing | 1024/200mm | |
Min Turning radius | 2050mm | |
Min Right angle aisle width | 3760mm | |
Frame angle | 6°/12° | |
Max lifting speed without goods | 400mm/s | |
Max lifting speed with full goods | 300mm/s | |
Max speed without goods | 15km/h | |
Max speed with full goods | 14km/h | |
Max climbing angle | ≤15% | |
Whole weight | 4050kg | |
Driving Wheel | 2x/2 | |
Tire model | Solid tire | |
Front Tire | 7.00-12 | |
Rear Tire | 18x7-8 | |
Hand Brake | Hydraulic Pedal | |
Brake type | M-Hand | |
Battery Volt/ capacity | 48/400 | |
Driving motor power | 11.0AC | |
pump power | 12.0AC | |
Model | CPD20 | |
Power type | Lead-acid type battery | |
Rated load | 2000kgs | |
Load center distance | 500mm | |
Driving type | Seat | |
Length | With fork | 3380mm |
Without fork | 2310mm | |
Whole Width | 1150mm | |
Height | Height no lifting frame | 2000mm |
Top frame height | 2145mm | |
Max Height working | 3995mm | |
Distance from seat to top light | 1020mm | |
Wheelbase | 1515mm | |
Front overhang | 483mm | |
Back overhang | 400mm | |
Front wheel tread | 970mm | |
Back wheel tread | 950mm | |
Min Floor clearance | 135mm | |
Max lifting height | 3000mm | |
Free lifting height | 170mm | |
Fork changing | 1024/200mm | |
Min Turning radius | 2050mm | |
Min Right angle aisle width | 3760mm | |
Frame angle | 6°/12° | |
Max lifting speed without goods | 400mm/s | |
Max lifting speed with full goods | 300mm/s | |
Max speed without goods | 15km/h | |
Max speed with full goods | 14km/h | |
Max climbing angle | ≤15% | |
Whole weight | 4050kg | |
Driving Wheel | 2x/2 | |
Tire model | Solid tire | |
Front Tire | 7.00-12 | |
Rear Tire | 18x7-8 | |
Hand Brake | Hydraulic Pedal | |
Brake type | M-Hand | |
Battery Volt/ capacity | 48/400 | |
Driving motor power | 11.0AC | |
pump power | 12.0AC | |
