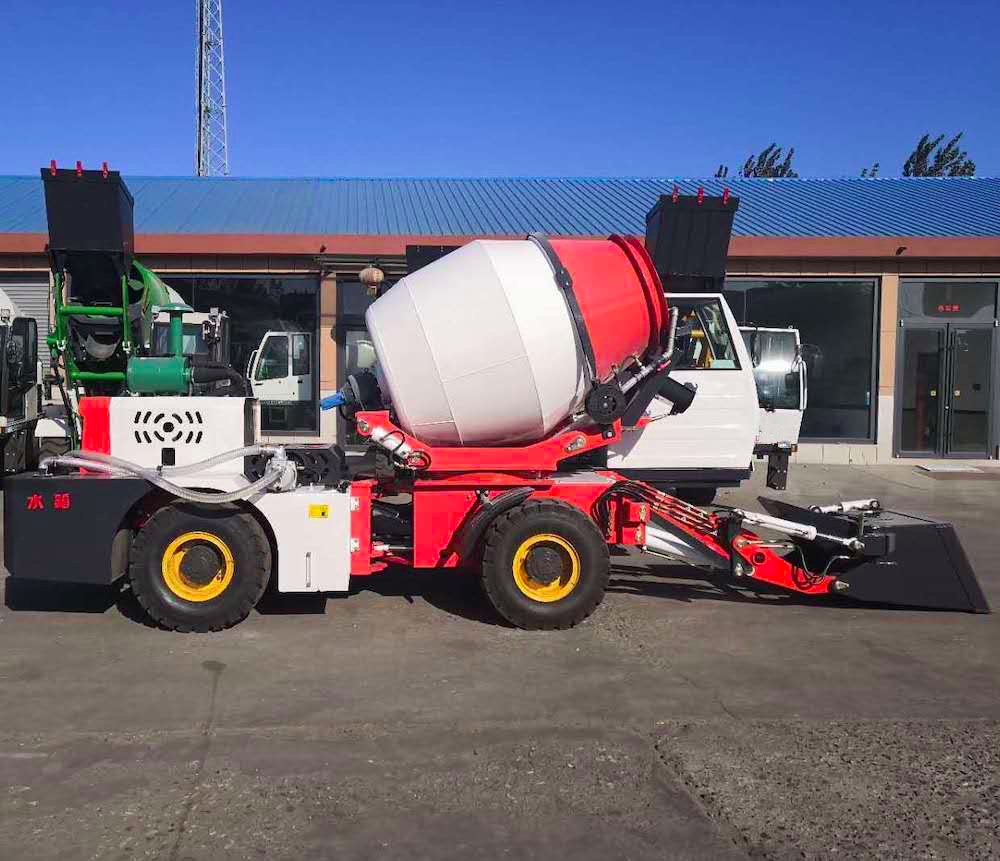

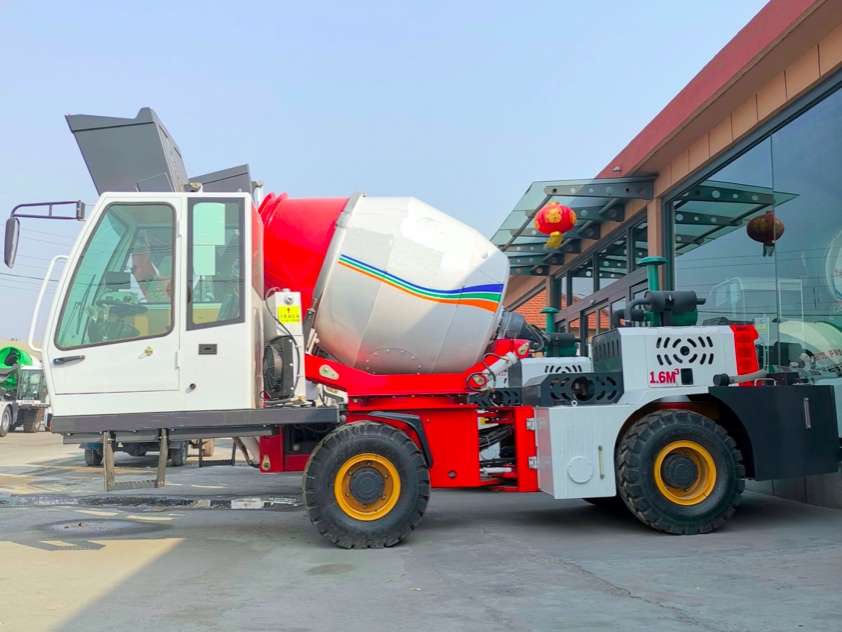

Self-Loading Concrete Mixer Truck is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful diesel engine and 4-wheel drive plus 2-wheel steering, the self-loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. Thanks to its bottom hydraulic lifting mechanism, the raw material inside the mixing drum could be discharged more thoroughly by drum reversing operation. The drum swing 2700 easy to discharge material to different places under the truck no need to move.
Model | SLCM1600 | |
Mixing Drum | Mixing Volume | 1.6M3/batch |
Geometric Volume | 3.0M3 | |
Concrete Output | 1.6M3/ batch, 6.4M3/h | |
Inclination Angle | 16° | |
Max. Slewing Angle | 270° | |
Drum rotating speed | 16 rpm | |
Body /Bottom Thickness | 4 mm/6 mm (Q345B) | |
Engine | Brand | YUCHAI |
Model | YCD4T22T-105 | |
Rated Power/Speed | 78KW (106 HP) /2400 rpm | |
Max.Torque/ Speed | 330 N.m/1800 rpm | |
Bore x Stroke | 102 mm x118 mm | |
Displacement | 3.857 L | |
Type | 4-Cylinder, In-line,Turbo Charged, Water-cooled | |
Hydraulic | Hydraulic Pump | DEHONG brand, flow rate 50/32 L/min |
Hydraulic motor | Flow rate 160L/min | |
Water Supply System | Water Tank Volume | 1 x 480 L |
Water Supply Mode | 24V self-priming volumetric water pump with quick suction, max. capacity is 90L/min. | |
Chassis | Structure | Articulated Structure |
Drive Type | 4 Wheel Drive+ 2 Wheel Steering | |
Transmission | 4 Forward +4 Reverse Shift (low+high speed) | |
Wheelbase / Tread | 2330 mm / 1600mm | |
Loading Bucket Capacity | 350 L | |
Brake | Air brake | |
Tire Size and number | 20.5/70-16, front 2 tires and rear 2 tires | |
Vehicle | Drum and Shovel Control | 270° hydraulic rotation and automatic locking through hydraulic brake. 2 unloading chute extensions provided as standard equipment. |
Driver’s Cab | Luxury cabin with heater, reverse camera, electric fan, hammer, suspension seat, adjustable steering wheel, joystick, tilting front window. | |
Max. Drive Speed | 30 km/h | |
Grade Ability | 20 % | |
Max. Payload | 3,840 kgs | |
Curb Weight | 5,800 kgs | |
Overall Size | 7060 x 2210x2580 mm (load bucket lay on ground) | |
Loading capacity of container | 2unit in one 40HQ container | |
Payment term | 30% deposit by T/T, 70% balance before shipment | |
Warranty | 12 months or 2000 working hours, whichever occurs first. | |
1- Standard configuration: 2700 swing drum + bottom hydraulic lifting, electric water pump 2- 2-Optional: electric weighing system; air conditioner; high pressure wash system; centralized lubricating system; double direction drive; CUMMINS engine. | ||
With continue updating design, we reserve the right to change the parameters and design without prior notice.
